F2BE0684B*B131

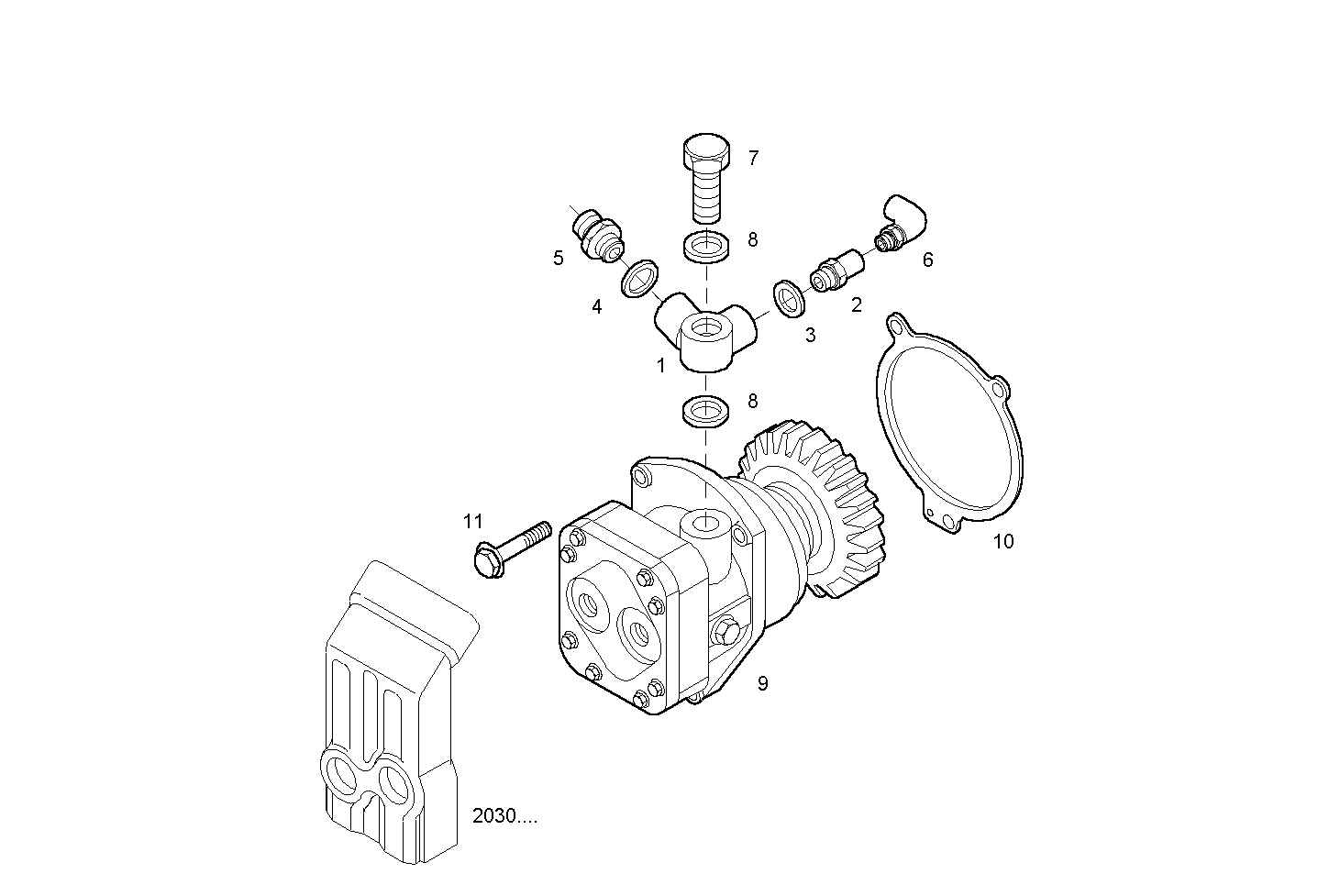

2010.031 FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 500348306 | PIPE SOCKET |
| 2 | 500328251 | VALVE 0,2-0,3 BAR |
| 3 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 4 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 5 | 41031569 | THREADED UNION M16X1,5 - M18X1,5 MM" |
| 6 | 500350162 | ELBOW COUPLING |
| 7 | 4864084 | BANJO BOLT M16X1,5 |
| 8 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 9 | 500328248 | FUEL PUMP ASSY |
| 10 | 99447382 | FLAT ENGINE GASKET |
| 11 | 16673834 | HEXAGON BOLT M8X30 MM |
