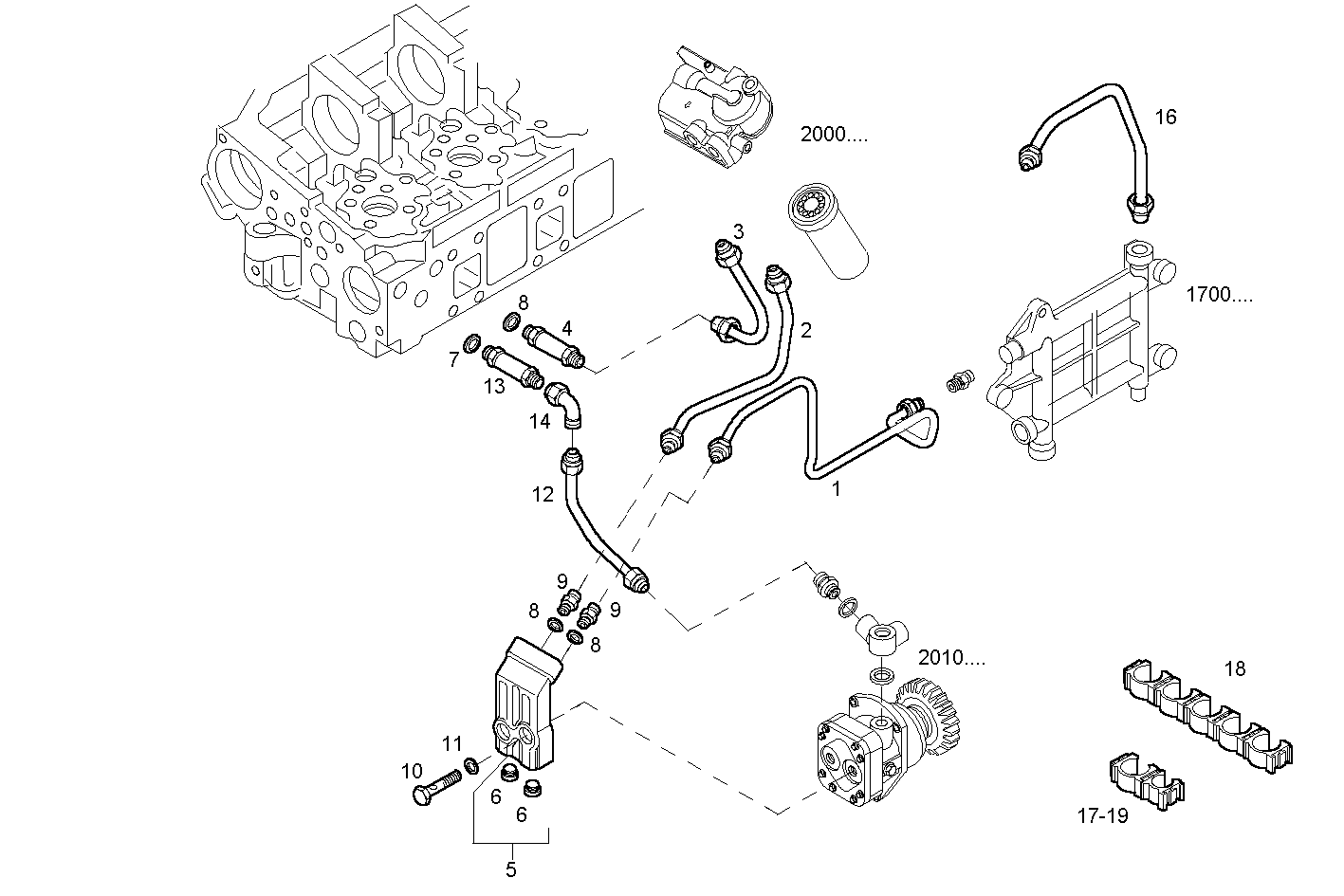

| Item |
Part number |
Description |
|
1 |
504003792 |
FUEL LINE |
|
2 |
504003798 |
FUEL LINE |
|
3 |
99473921 |
FUEL LINE |
|
4 |
500310076 |
PIPE SOCKET M16X1,5 - M18X1,5 |
|
5 |
500314313 |
PIPE SOCKET ASSY |
|
6 |
504051237 |
THREADED PLUG DIAM=1/4" |
|
7 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
8 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
9 |
41031569 |
THREADED UNION M16X1,5 - M18X1,5 MM" |
|
10 |
4864084 |
BANJO BOLT M16X1,5 |
|
11 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
|
12 |
500343663 |
FUEL LINE |
|
13 |
99455351 |
CONNECTION PIPE M14X1,5 - M18X1,5 |
|
14 |
16504114 |
ELBOW COUPLING M18X1,5 |
|
16 |
500342252 |
FUEL LINE |
|
17 |
500373006 |
SPRING CLAMP |
|
18 |
500306941 |
SPRING CLAMP |
|
19 |
500319864 |
SPRING CLAMP |
