F2BE0684B*B131

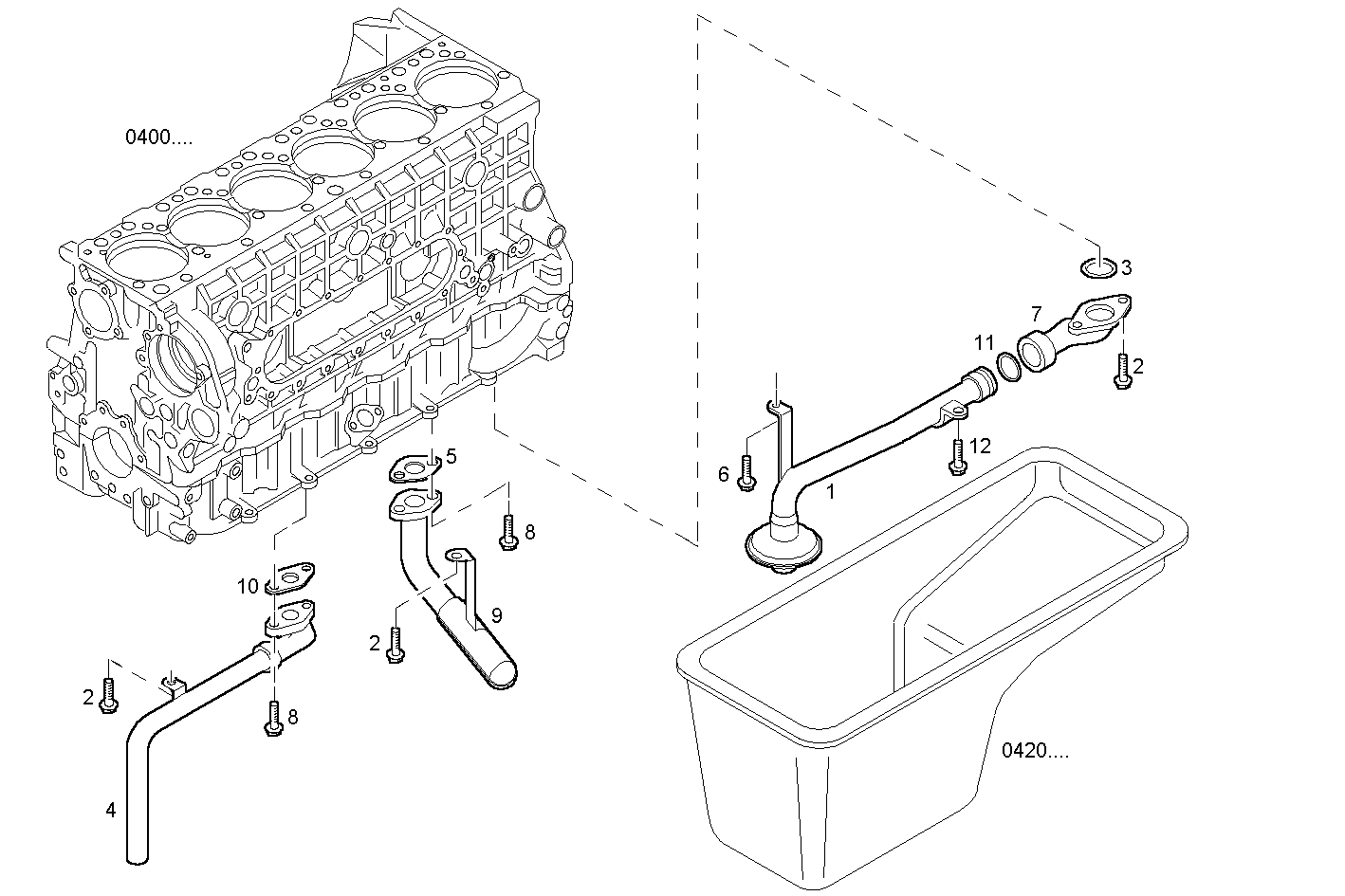

3050.000 SUCTION STRAINER
| Item | Part number | Description |
|---|---|---|
| 1 | 500364110 | SUCTION STRAINER |
| 2 | 18138324 | CYLIND-HEAD SCREW M8X1,25X16 MM |
| 3 | 17282981 | O-RING 2,62x34,59 |
| 4 | 500364644 | CONNECTION PIPE |
| 5 | 500364380 | GASKET |
| 6 | 16592224 | HEXAGON BOLT M8X55 MM |
| 7 | 98474898 | INTAKE ELBOW |
| 8 | 16673734 | HEXAGON BOLT M8X25 MM |
| 9 | 500364359 | SUCTION STRAINER |
| 10 | 500364892 | GASKET |
| 11 | 99477046 | O-RING Ø38 MM SP=3 MM |
| 12 | 16674034 | HEXAGON BOLT M8X40 MM |
