F2BE0684B*B131

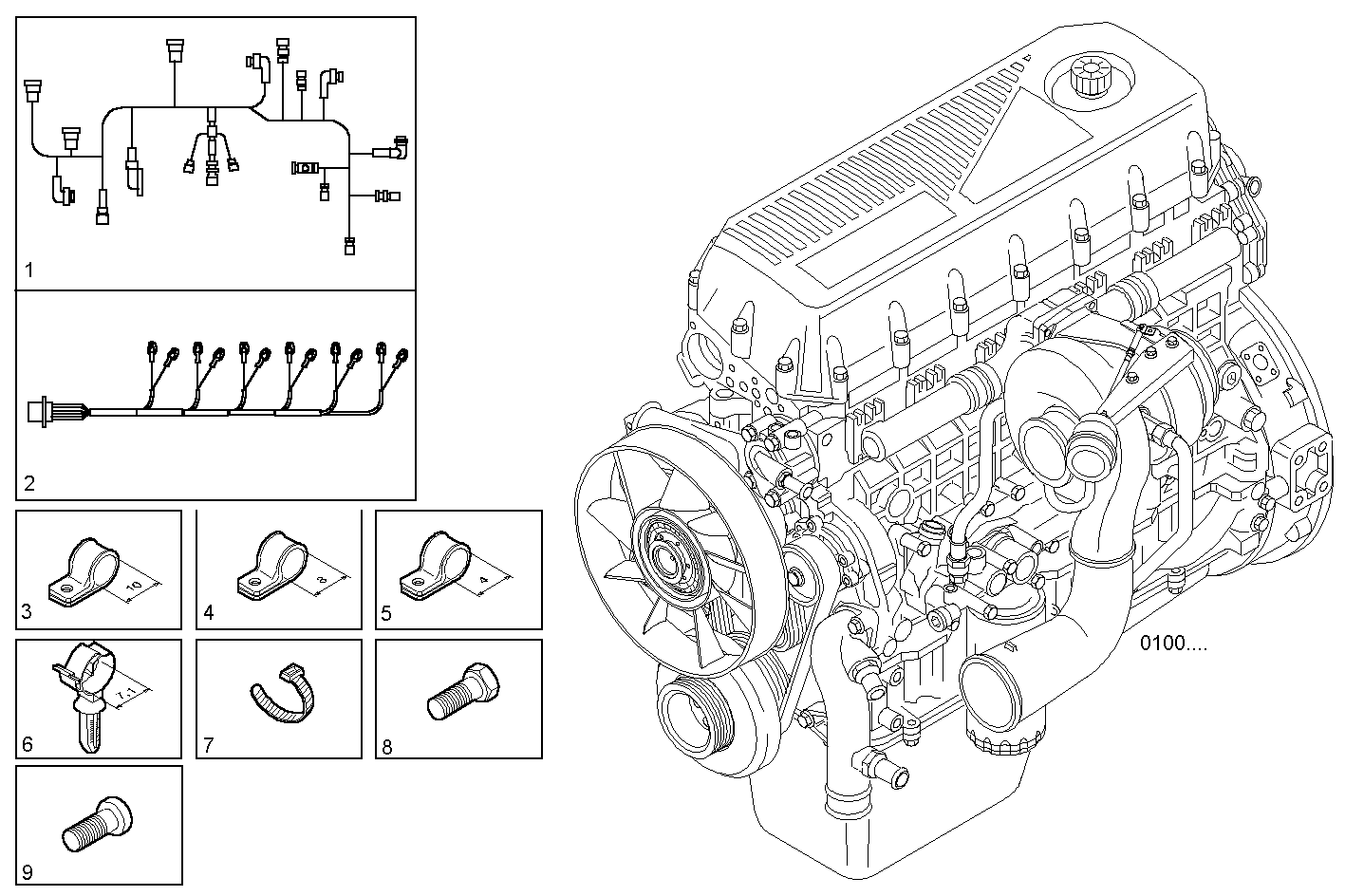

8328.000 ELECTRIC WIRING
| Item | Part number | Description |
|---|---|---|
| 1 | 504055238 | WIRE/CABLE |
| 2 | 500336911 | WIRE/CABLE FOR INJECTORS |
| 3 | 17310501 | FASTENING BRACKET Ø10 MM |
| 4 | 17310401 | FASTENING BRACKET Ø8 MM |
| 5 | 17310001 | FASTENING BRACKET Ø4 MM |
| 6 | 504000058 | CLIP |
| 7 | 42099097 | CABLE STRAP |
| 8 | 11612224 | HEXAGON BOLT M6X12 MM |
| 9 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
