F2BE1682D*B001

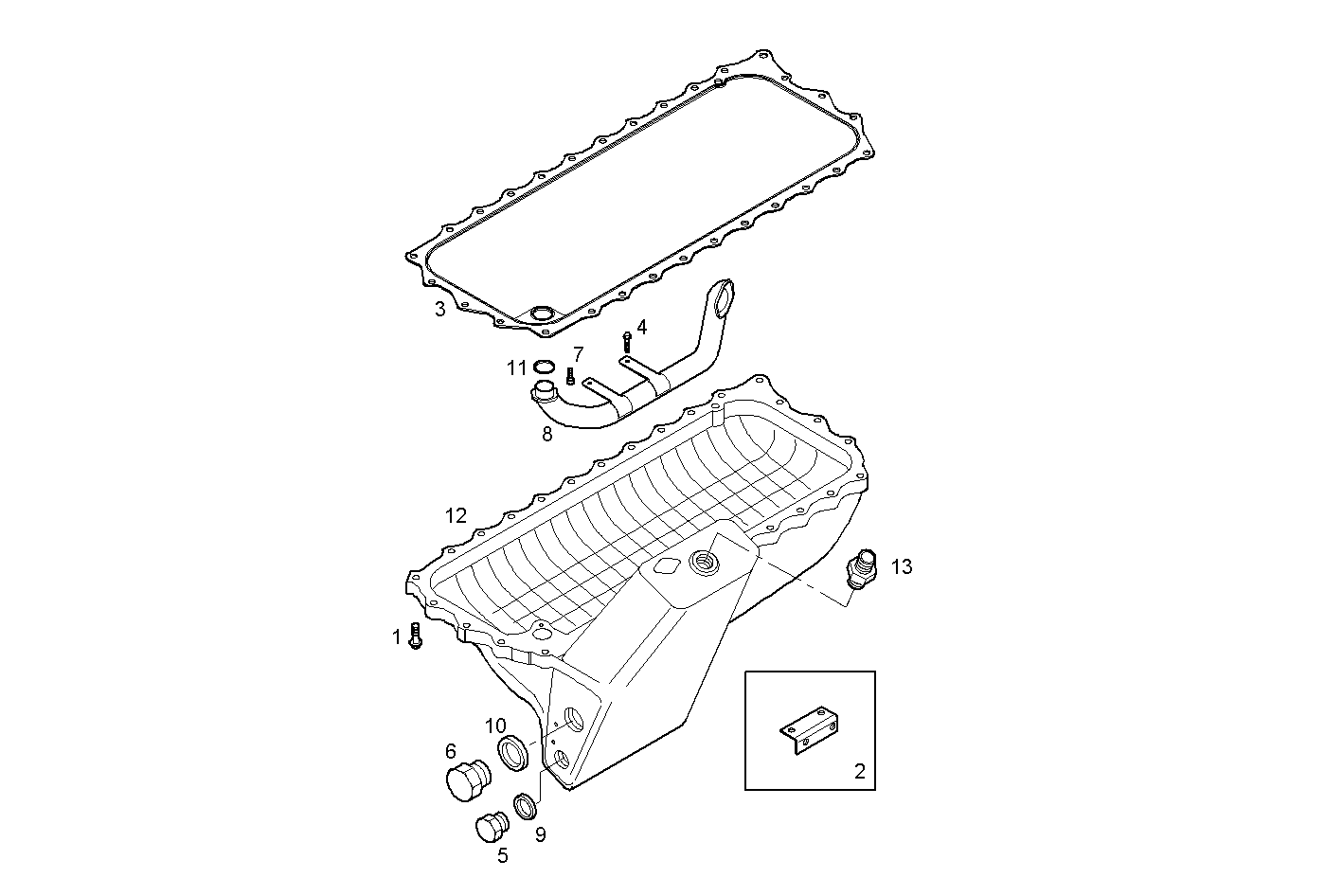

0420.182 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 16587424 | HEXAGON BOLT M10X40 MM |
| 2 | 504024200 | FASTENING BRACKET |
| 3 | 504053902 | OIL SUMP GASKET |
| 4 | 16586024 | HEXAGON BOLT M6X30 MM |
| 5 | 16993511 | LOCK PLUG M28X1,5 |
| 6 | 16993611 | THREADED PLUG M32X1,5 |
| 7 | 16689224 | SOCKET-HEAD SCREW M6X20 MM |
| 8 | 504056424 | SUCTION STRAINER |
| 9 | 99432291 | SEAL GASKET Ø28 MM |
| 10 | 99469379 | WASHER D=32X42X2 |
| 11 | 17282681 | O-RING SP=2,62 MM |
| 12 | 504055170 | OIL SUMP |
| 13 | 504053498 | THREADED UNION |
