F2BE1682D*B001

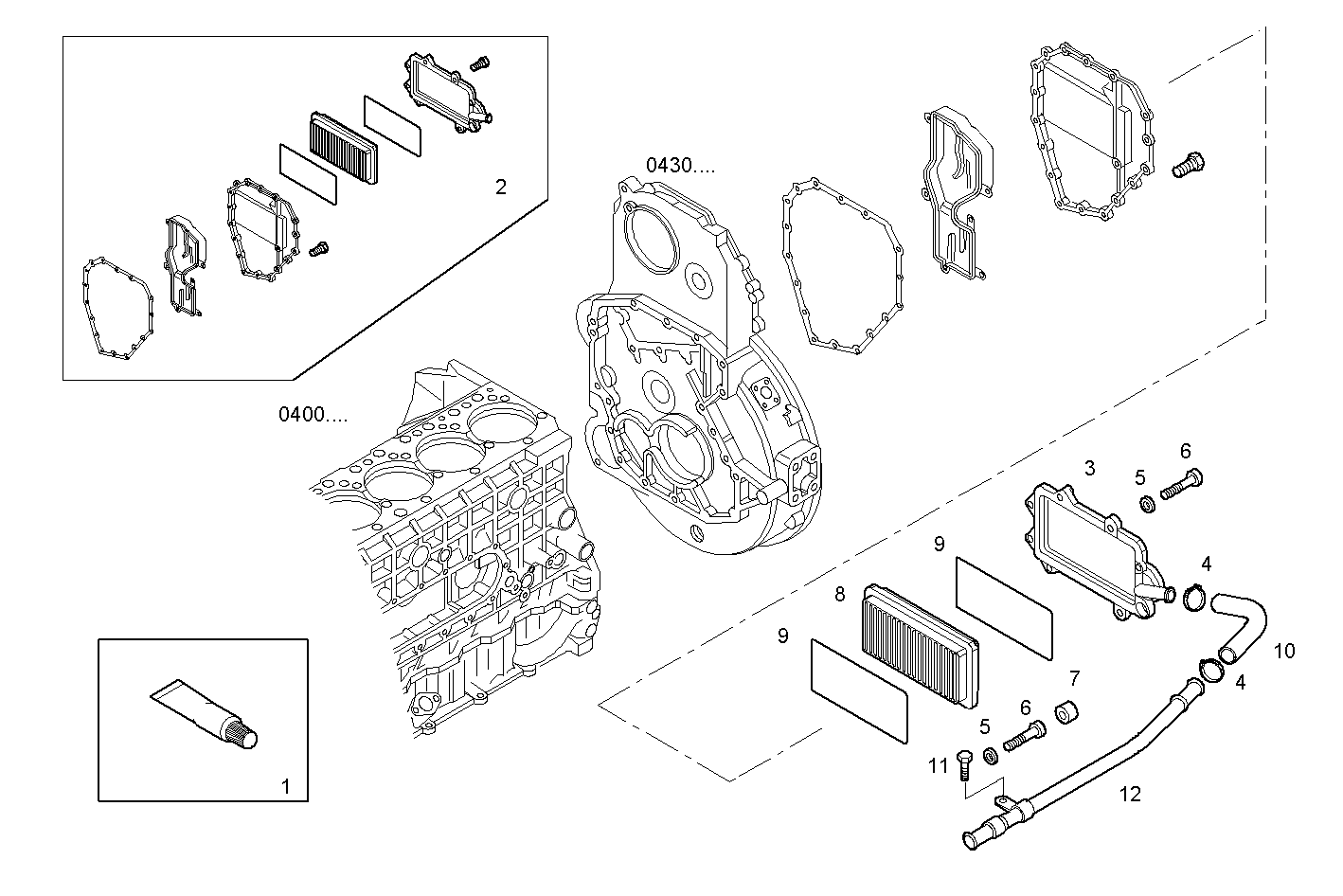

0450.194 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 2992692 | ADHESIVE/STICKER LOCTITE |
| 2 | 500392516 | COVER |
| 3 | 500361556 | COVER |
| 4 | 17764691 | CLIP Ø25/40 MM |
| 5 | 17094877 | WASHER Ø8X15 MM |
| 6 | 16690677 | CYLIND-HEAD SCREW M8X25 MM |
| 7 | 500361558 | BUSH |
| 8 | 500383040 | FILTER |
| 9 | 500383043 | GASKET |
| 10 | 504015788 | RUBBER SLEEVE |
| 11 | 16597924 | HEXAGON BOLT M8X14 MM |
| 12 | 504016041 | PIPE |
