F2BE1682D*B001

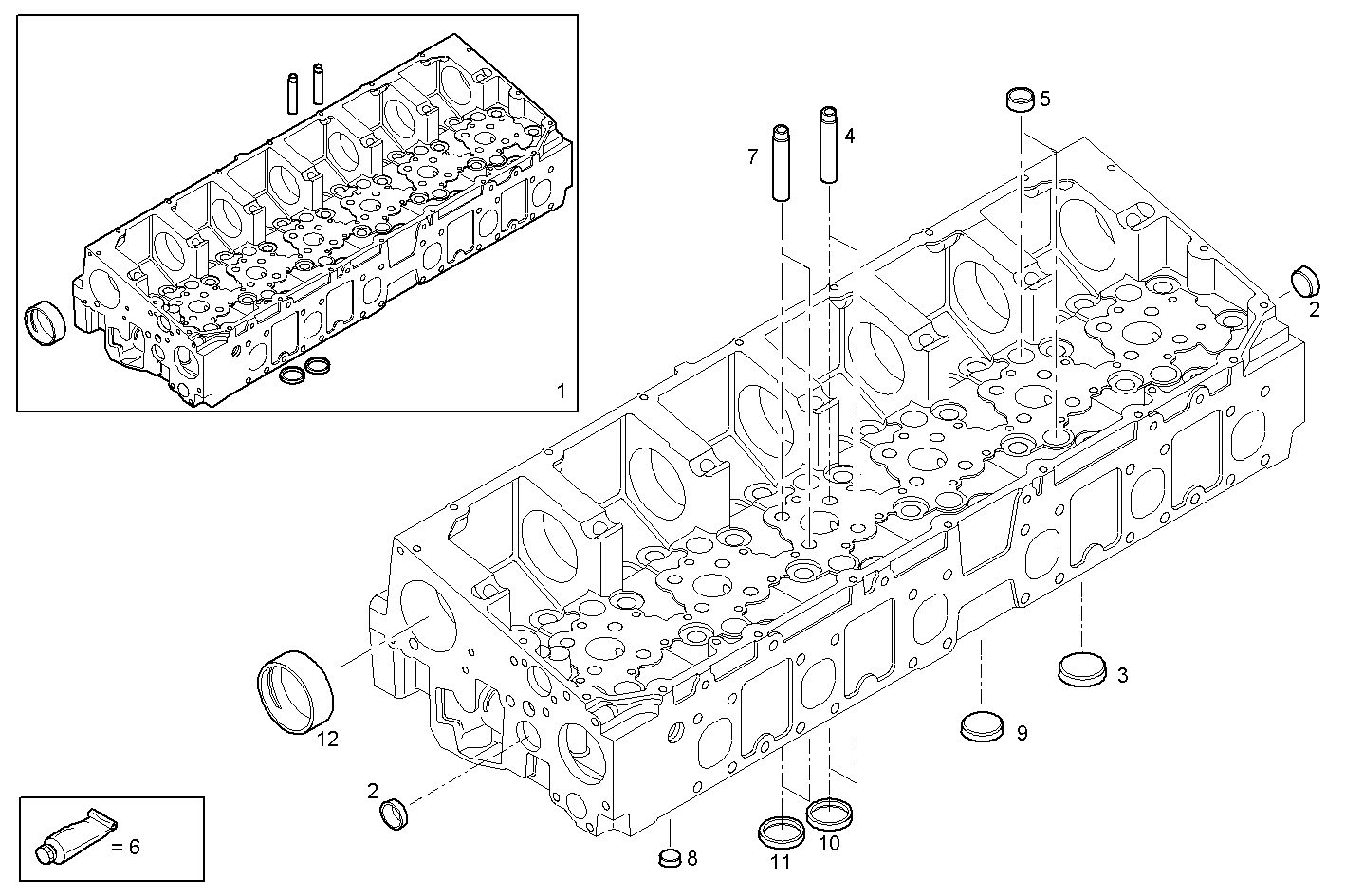

0610.053 CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 504292284 | CYLINDER HEAD |
| 2 | 16990870 | LOCK PLUG Ø28 MM |
| 3 | 16991370 | LOCK PLUG Ø45 MM |
| 4 | 500391436 | VALVE GUIDE EXHAUST |
| 5 | 504344694 | PLUG Ø25 MM |
| 6 | 2992695 | ADHESIVE/STICKER LOCTITE |
| 7 | 500391440 | VALVE GUIDE INTAKE |
| 8 | 14282170 | LOCK PLUG Ø20 MM |
| 9 | 16991170 | LOCK PLUG Ø36 MM |
| 10 | 504203468 | VALVE SEAT STD. EXHAUST |
| 11 | 99456802 | VALVE SEAT STD. INTAKE |
| 12 | 504125778 | BUSH |
