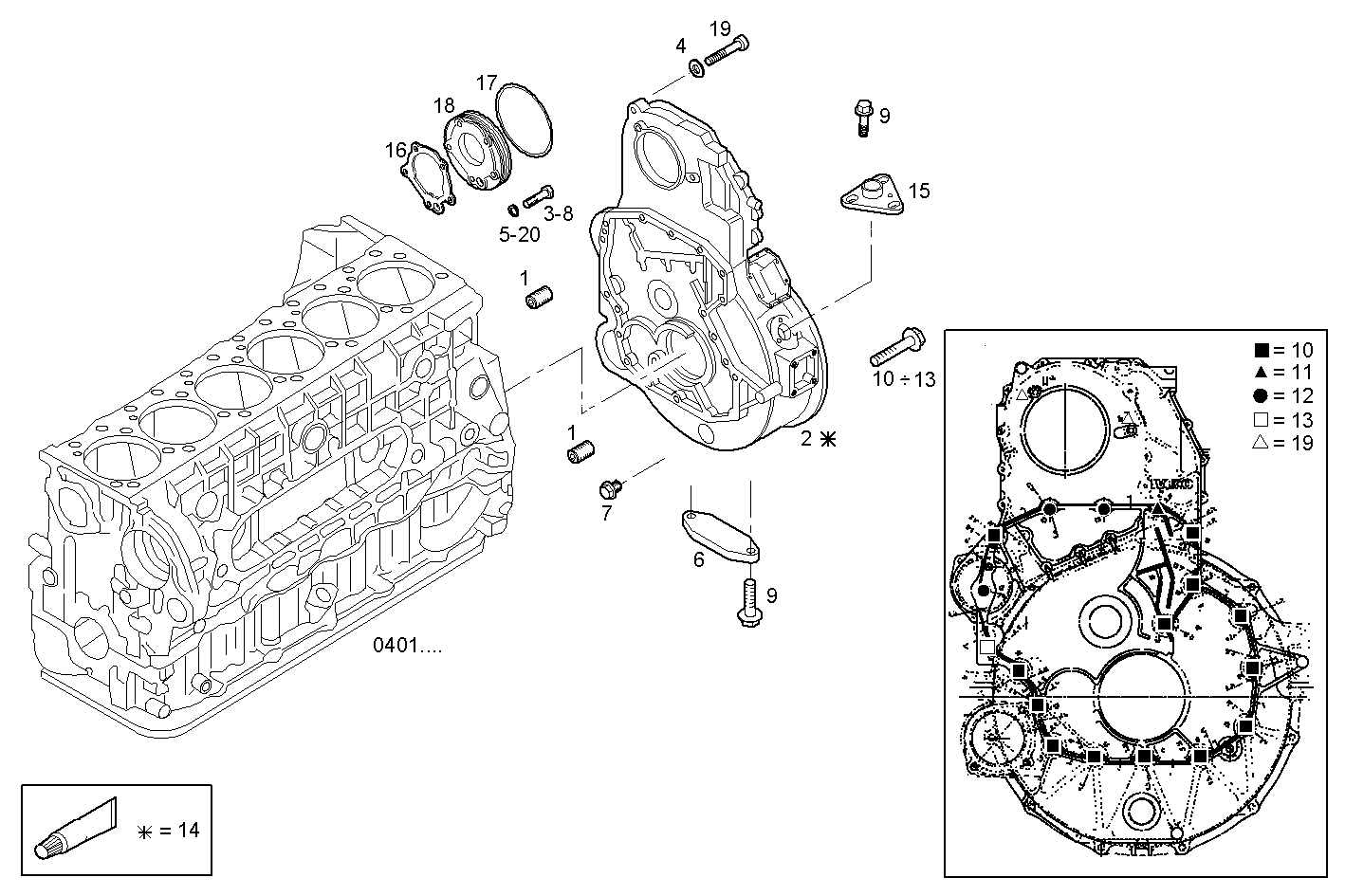

| Item |
Part number |
Description |
|
1 |
500314968 |
DOWEL PIN Ø12 MM |
|
2 |
504004740 |
TIMINGGEAR HOUSIN |
|
3 |
61315661 |
HEXAGON BOLT M8X30 |
|
4 |
98474303 |
WASHER Ø8X14 MM SP=2,3 MM |
|
5 |
14496524 |
WASHER Ø8X17 MM |
|
6 |
4851842 |
COVER |
|
7 |
504123677 |
THREADED PLUG M 52X2 |
|
8 |
16690724 |
CYLIND-HEAD SCREW M8X30 MM |
|
9 |
16597925 |
HEXAGON BOLT M8X14 MM |
|
10 |
16593224 |
HEXAGON BOLT M12X1,7X80 MM |
|
11 |
16593125 |
HEXAGON BOLT M10X100 MM |
|
12 |
16587325 |
HEXAGON BOLT M10X35 MM |
|
13 |
16599424 |
HEXAGON BOLT M10X180 MM |
|
14 |
2995644 |
ADHESIVE/STICKER |
|
15 |
504168296 |
CONNECTING PLATE |
|
16 |
504045791 |
FLAT ENGINE GASKET |
|
17 |
17292381 |
O-RING Ø129,8 MM SP=3,53 MM |
|
18 |
99448730 |
PLATE |
|
19 |
500348322 |
CYLIND-HEAD SCREW M8X1,25X25 MM |
|
20 |
17096824 |
WASHER Ø8,40X15 MM |
