F2BE3681B*U056

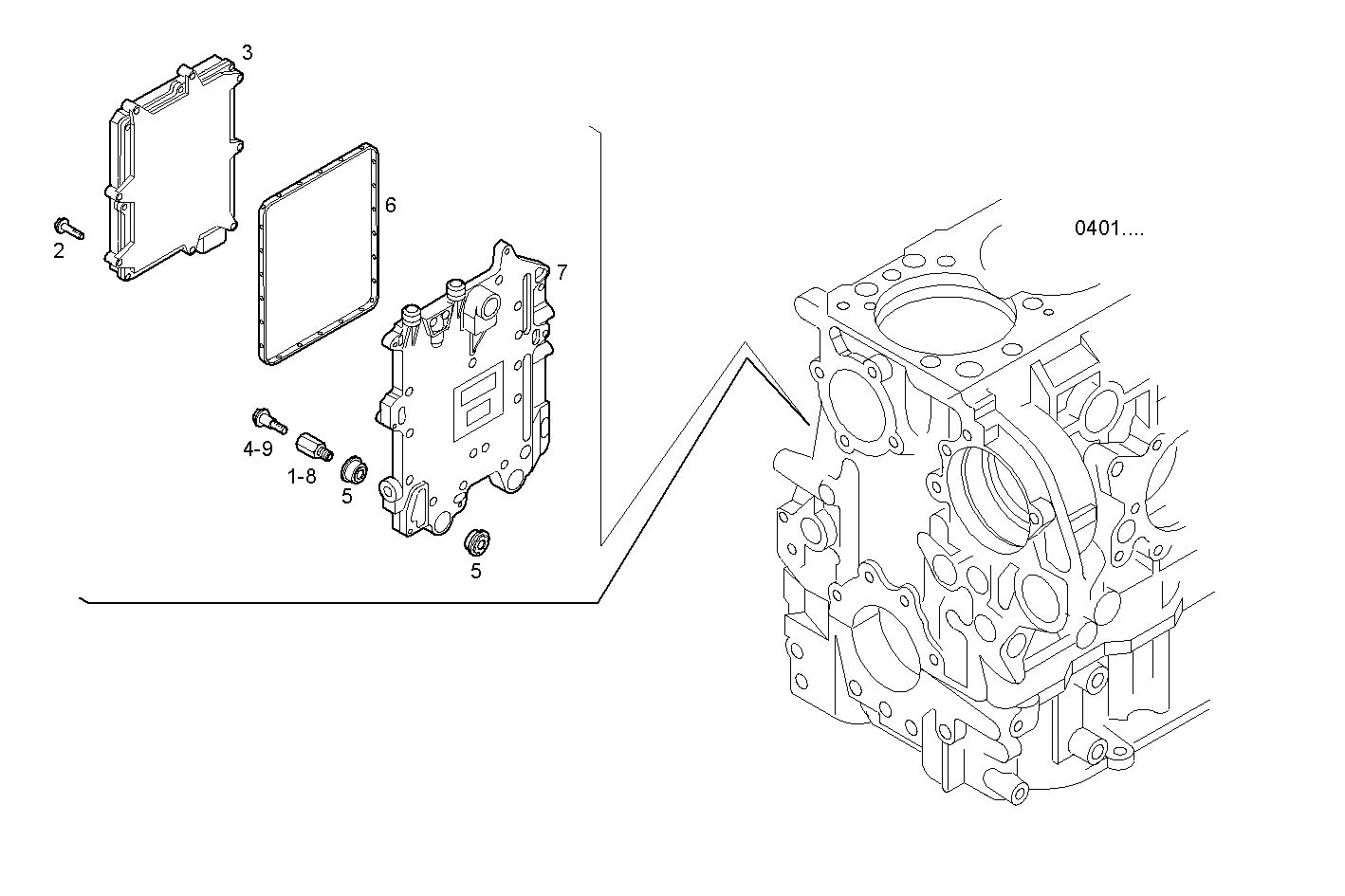

1701.026 ELECTRONIC CONTROL UNIT
| Item | Part number | Description |
|---|---|---|
| 1 | 500341603 | SPACING BAR |
| 2 | 16586025 | HEXAGON BOLT M6X30 MM |
| 3 | 8094789 | ELECTR.CONTR.UNIT E.C.U. |
| 4 | 16598224 | HEXAGON BOLT M8X90 MM |
| 5 | 98498817 | DOWEL |
| 6 | 504070042 | GASKET |
| 7 | 504097239 | SUPPORT |
| 8 | 17816414 | SPACING BAR Ø8,5X18 MM SP=20 MM |
| 9 | 16592425 | HEXAGON BOLT M8X65 MM |
