F2BE3681B*U056

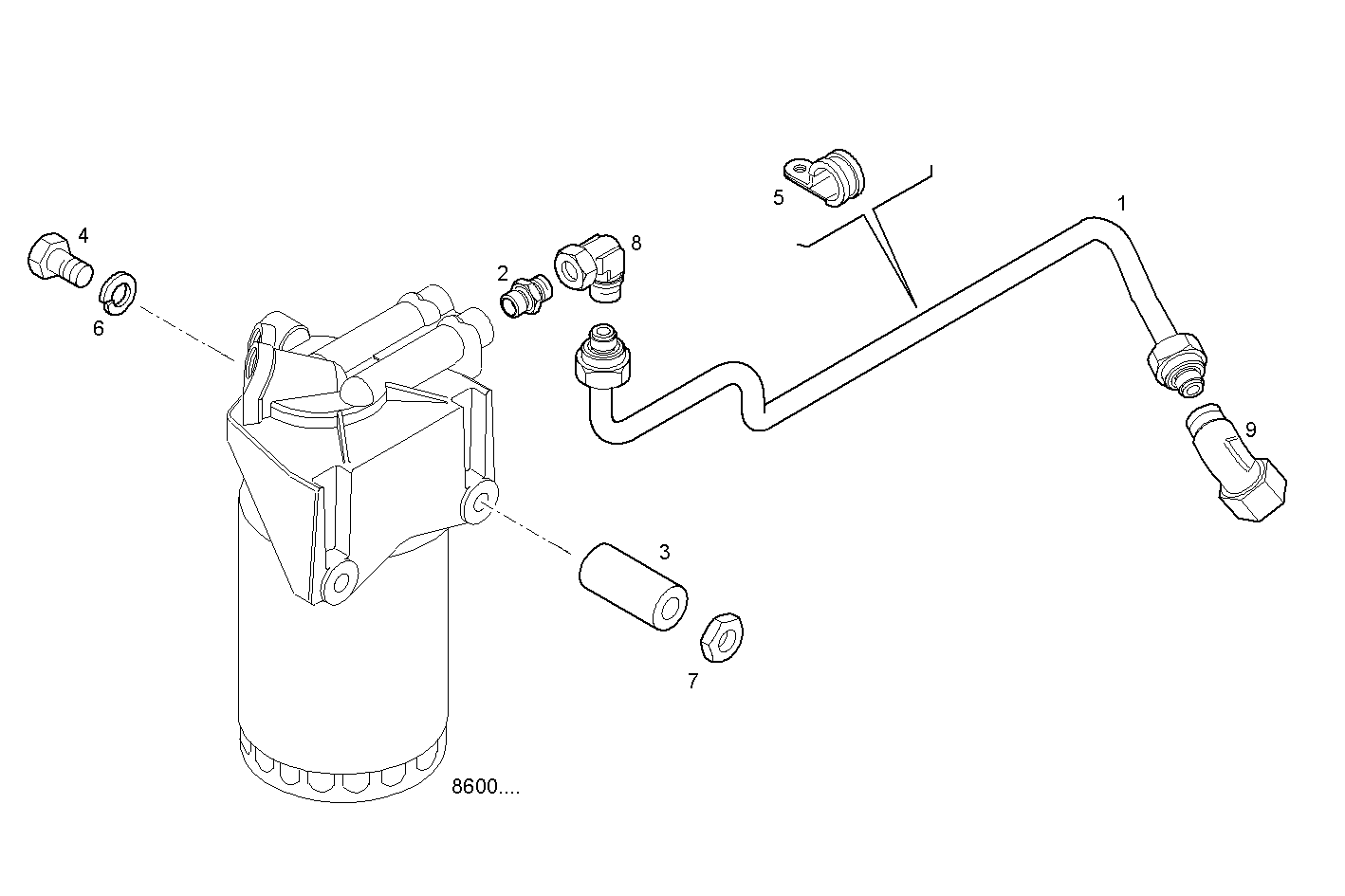

2033.016 FUEL LINES -INLET TO FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 504159670 | FUEL LINE |
| 2 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 17816414 | SPACING BAR Ø8,5X18 MM SP=20 MM |
| 4 | 17709374 | TOOTHED WASHER |
| 5 | 17316599 | PIPE CLIP |
| 6 | 16586625 | HEXAGON BOLT M8X35 MM |
| 7 | 16508915 | HEXAGON NUT |
| 8 | 16504114 | ELBOW COUPLING M18X1,5 |
| 9 | 16503614 | ELBOW COUPLING |
