F2BE3681B*U056

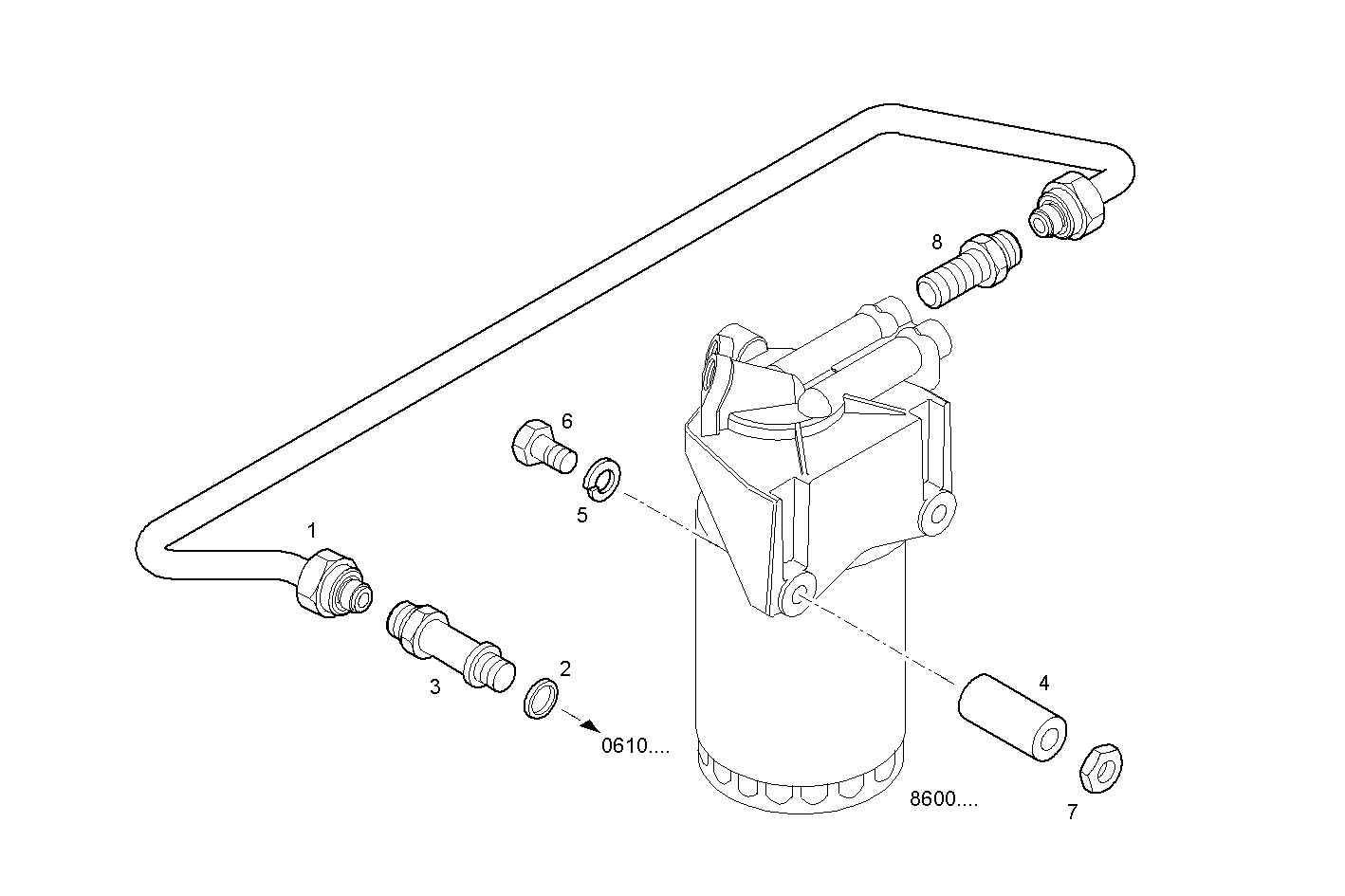

2034.018 FUEL LINES - FILTER TO CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 504159029 | FUEL LINE |
| 2 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 3 | 99455350 | CONNECTION PIPE M16X1,5 - M18X1,5 |
| 4 | 17816814 | SPACING BAR |
| 5 | 17709374 | TOOTHED WASHER |
| 6 | 16586925 | HEXAGON BOLT M8X50 MM |
| 7 | 16508915 | HEXAGON NUT |
| 8 | 16502515 | BULKHEAD STR.COUPL |
