F2BE3681B*U056

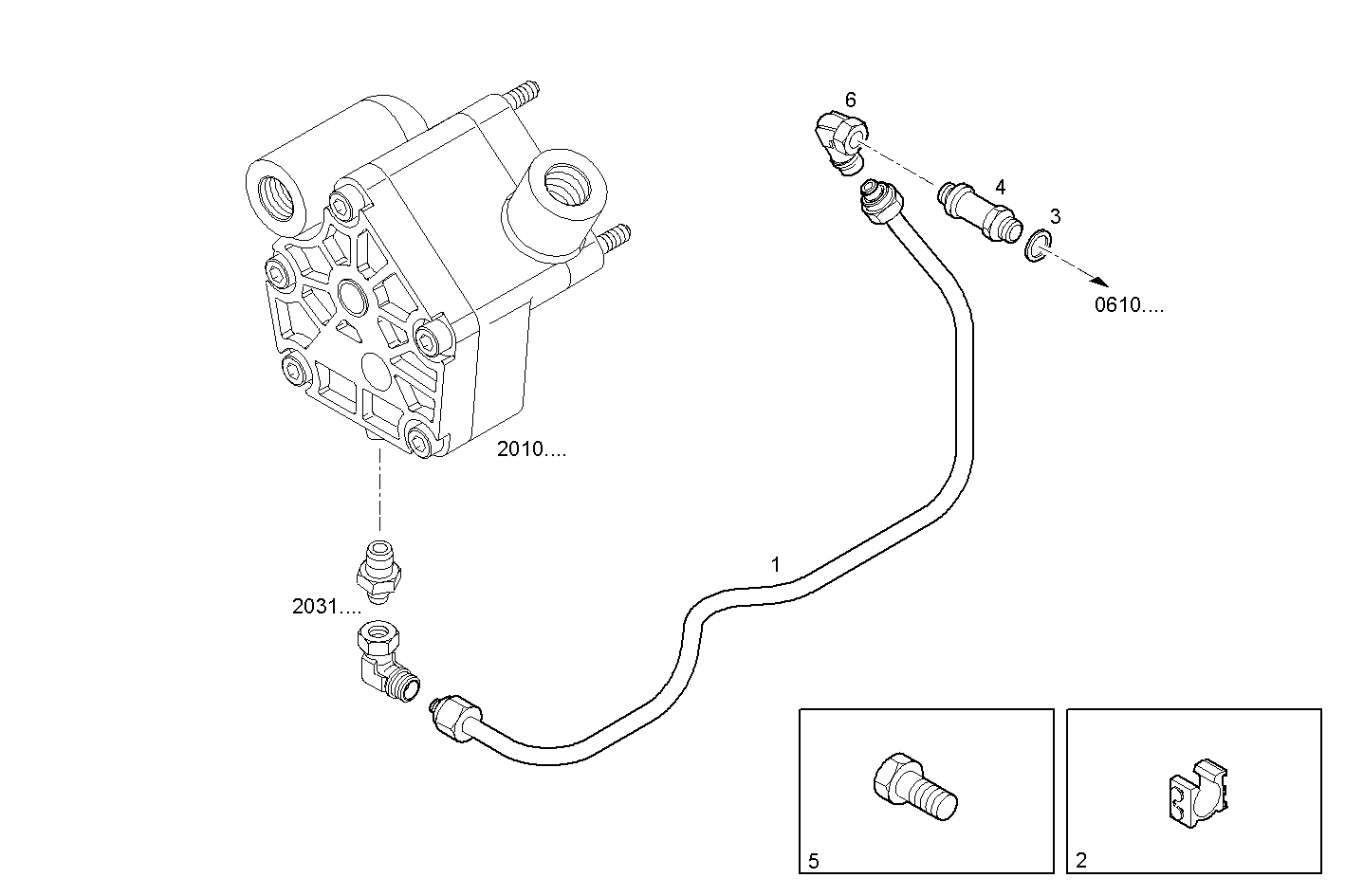

2036.018 FUEL LINES - RETURN TO FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504159812 | FUEL LINE |
| 2 | 504052515 | RETAINER |
| 3 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 4 | 99455351 | CONNECTION PIPE M14X1,5 - M18X1,5 |
| 5 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 6 | 16504114 | ELBOW COUPLING M18X1,5 |
