F2BE3681B*U056

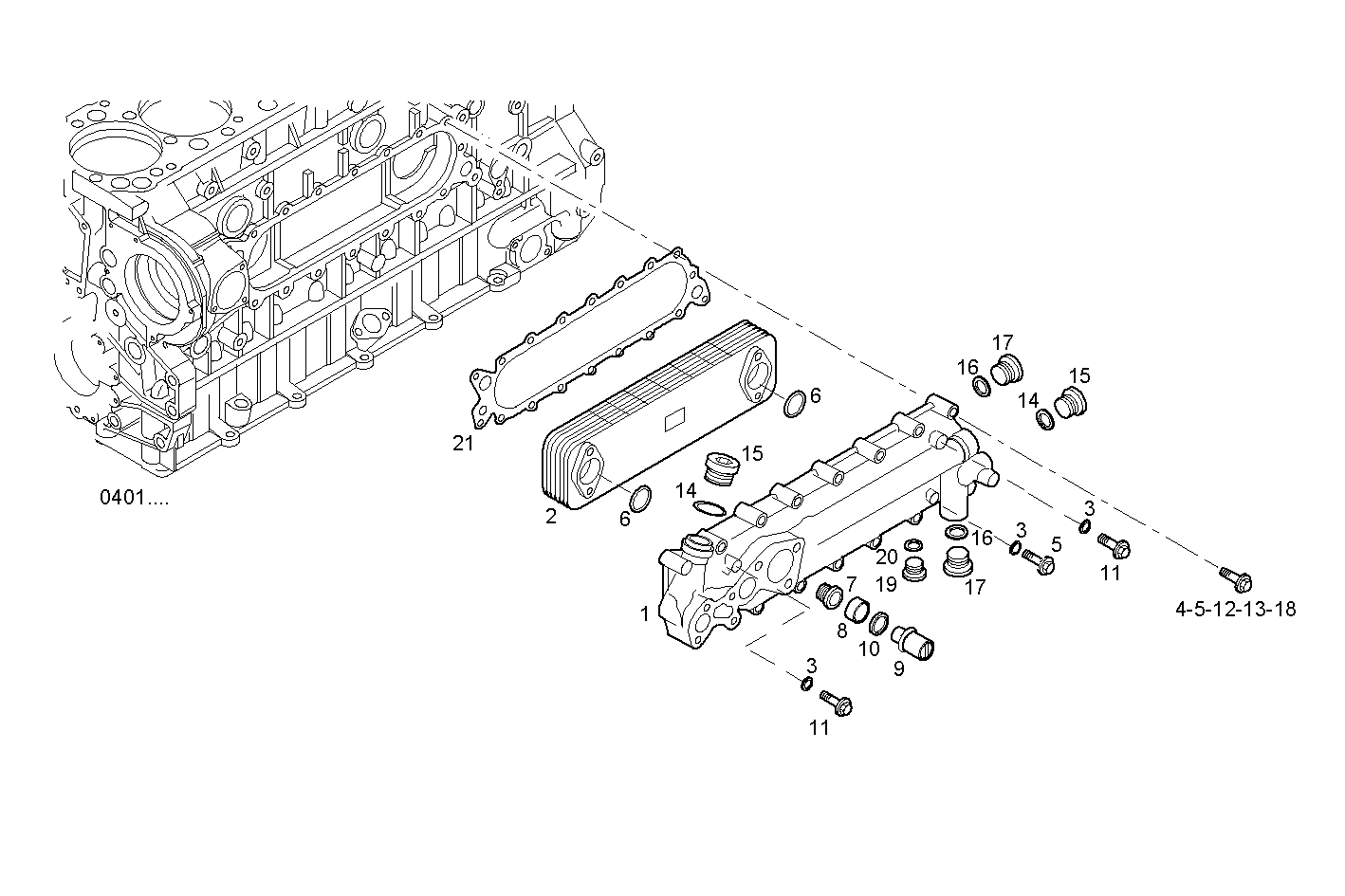

3150.034 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 504106451 HEAT EXANGER BODY
2 500301692 OIL COOLER
3 99489014 SEAL GASKET Ø7 MM
4 16673735 HEXAGON BOLT M8X25 MM
5 16586925 HEXAGON BOLT M8X50 MM
6 17283581 O-RING Ø44,12 MM SP=2,62 MM
7 99433799 THREADED PLUG M32X1,5
8 99433798 SPACING BAR Ø28 MM
9 98498322 VALVE
10 98494952 GASKET M35X1,5
11 16586625 HEXAGON BOLT M8X35 MM
12 16598224 HEXAGON BOLT M8X90 MM
13 16586725 HEXAGON BOLT M8X1.25X40 MM
14 99432291 SEAL GASKET Ø28 MM
15 16993511 LOCK PLUG M28X1,5
16 99469380 SEAL GASKET Ø35 MM
17 16993711 THREADED PLUG M35X1,5
18 16598625 HEXAGON BOLT M8X1,25X140 MM
19 16992415 THREADED PLUG M16X1,5
20 99489019 WASHER Ø16X24 MM SP=1,5 MM
21 504045796 FLAT ENGINE GASKET
