F2BE3681B*U056

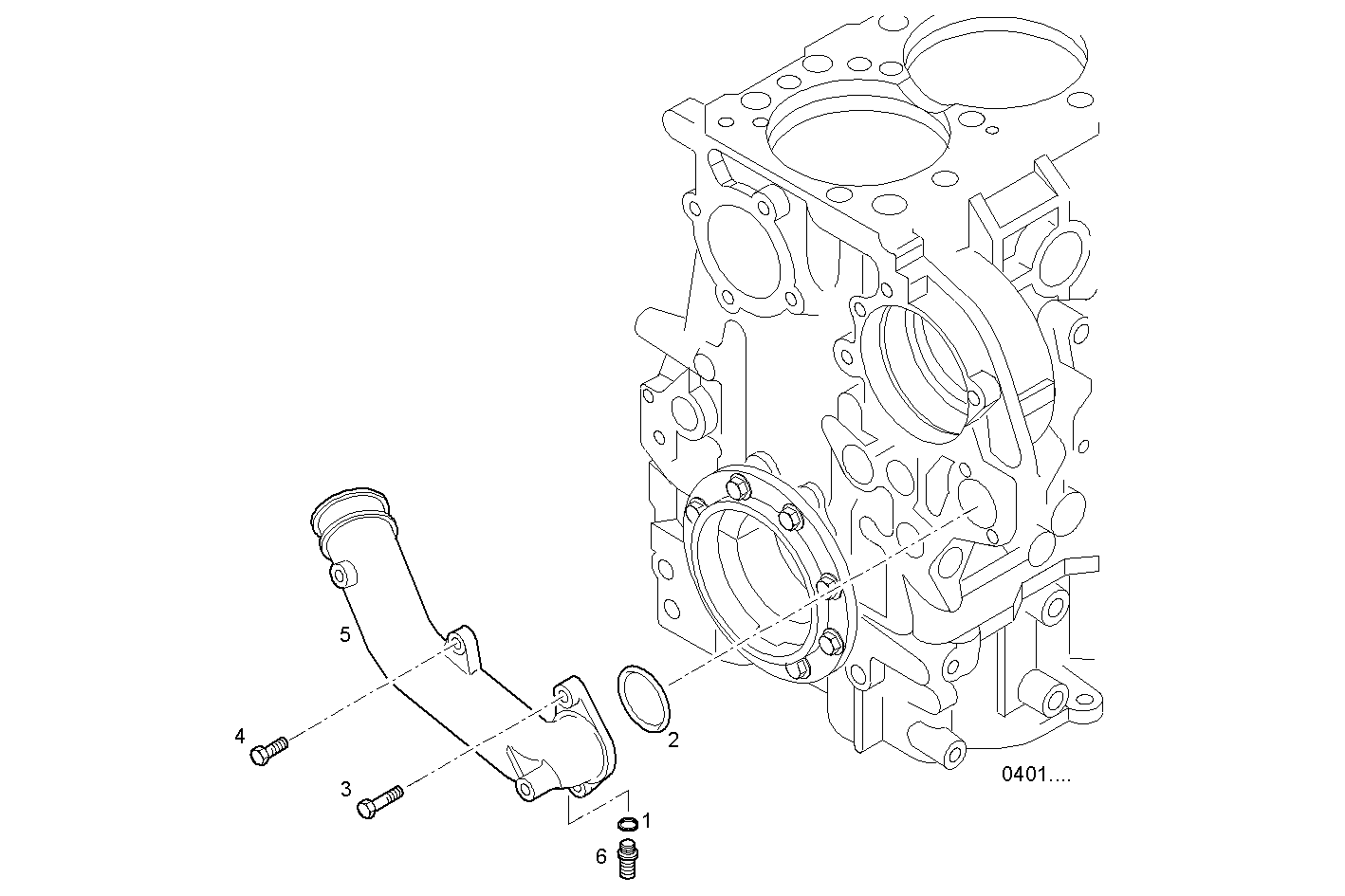

3230.072 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 99434480 | SEAL GASKET Ø30X40 MM |
| 2 | 17290081 | O-RING Ø56,74 MM SP=3,53 MM |
| 3 | 16586925 | HEXAGON BOLT M8X50 MM |
| 4 | 16673735 | HEXAGON BOLT M8X25 MM |
| 5 | 504093749 | WATER PIPE |
| 6 | 504020128 | PIPE SOCKET |
