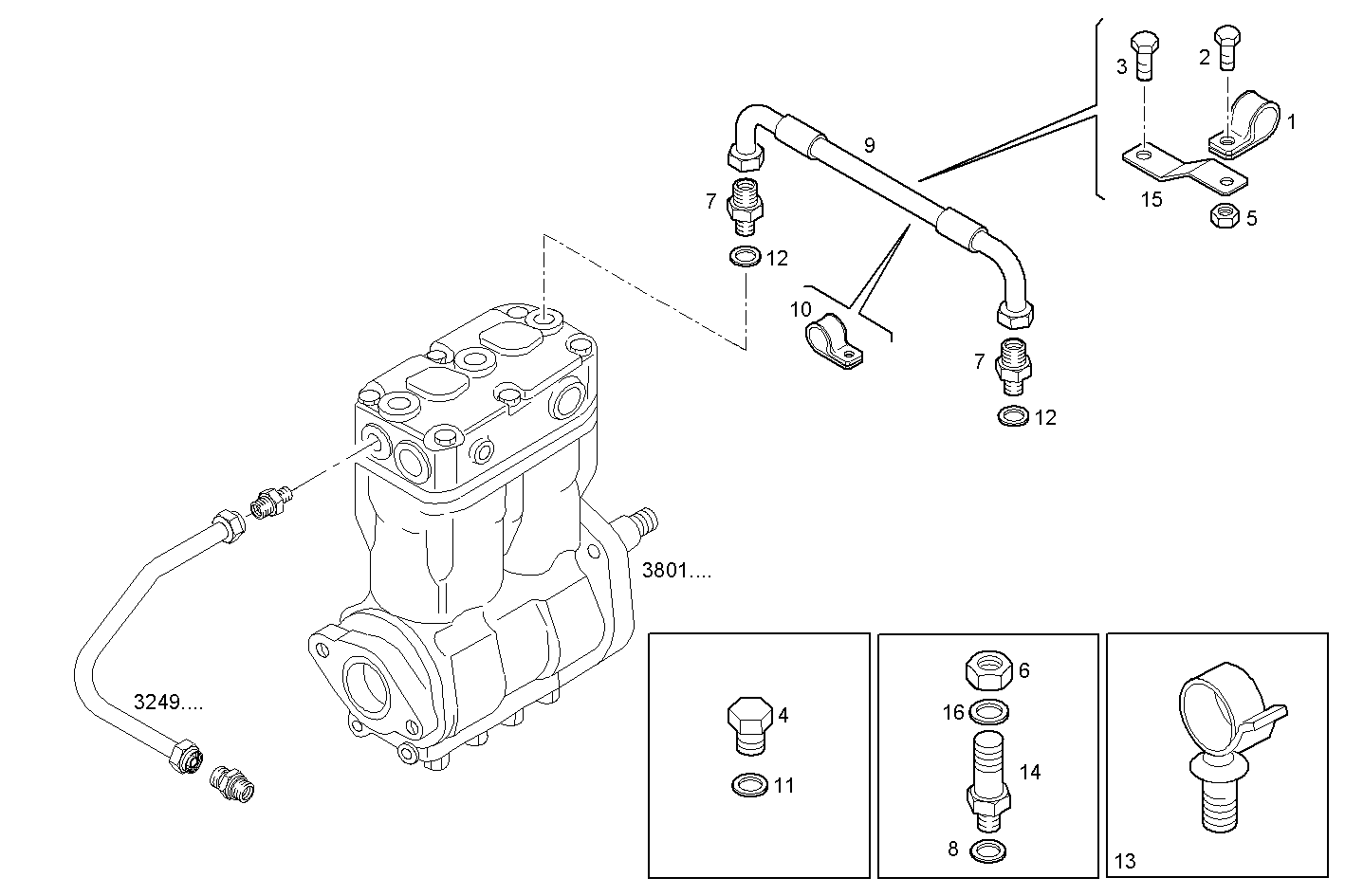

| Item |
Part number |
Description |
|
1 |
17315290 |
LOCK/YOKE |
|
2 |
18137825 |
HEXAGON BOLT M6X16 |
|
3 |
16586225 |
HEXAGON BOLT M8X1,25X16 MM |
|
4 |
16992415 |
THREADED PLUG M16X1,5 |
|
5 |
17044625 |
HEXAGON NUT M6 |
|
6 |
17044725 |
HEXAGON NUT M8 |
|
7 |
16500415 |
PIPE SOCKET |
|
8 |
17095024 |
SPRING WASHER Ø10X18 MM |
|
9 |
504167142 |
WATER PIPE |
|
10 |
10450590 |
PIPE CLIP Ø18 MM |
|
11 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
12 |
99489020 |
SEAL GASKET Ø18X26 MM SP=1,5 MM |
|
13 |
500349848 |
HITCH ASSY. |
|
14 |
504005577 |
SPACING BAR |
|
15 |
504049754 |
FASTENING BRACKET |
|
16 |
17094924 |
WASHER Ø8X16 MM |
