F2BE3681B*U056

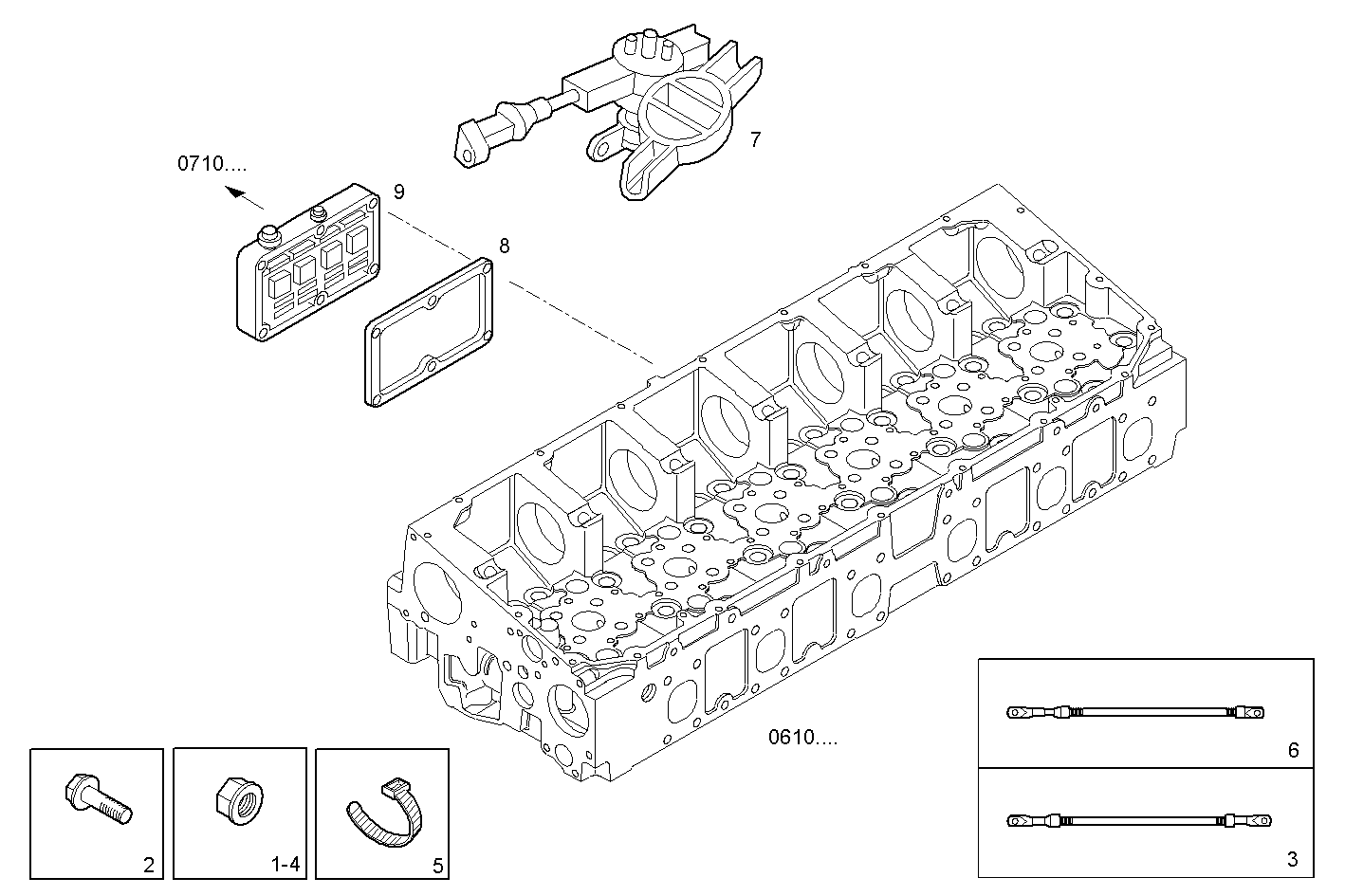

3650.013 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 17044625 | HEXAGON NUT M6 |
| 2 | 16585625 | HEXAGON BOLT M6X12 |
| 3 | 504206836 | WIRE/CABLE |
| 4 | 17154735 | HEXAGON NUT M8 |
| 5 | 99455033 | CLIP |
| 6 | 504119997 | WIRE/CABLE |
| 7 | 99449300 | RELAY 24v-150a |
| 8 | 504026624 | FLAT ENGINE GASKET |
| 9 | 504041252 | RESISTOR 24V - 120/150A |
