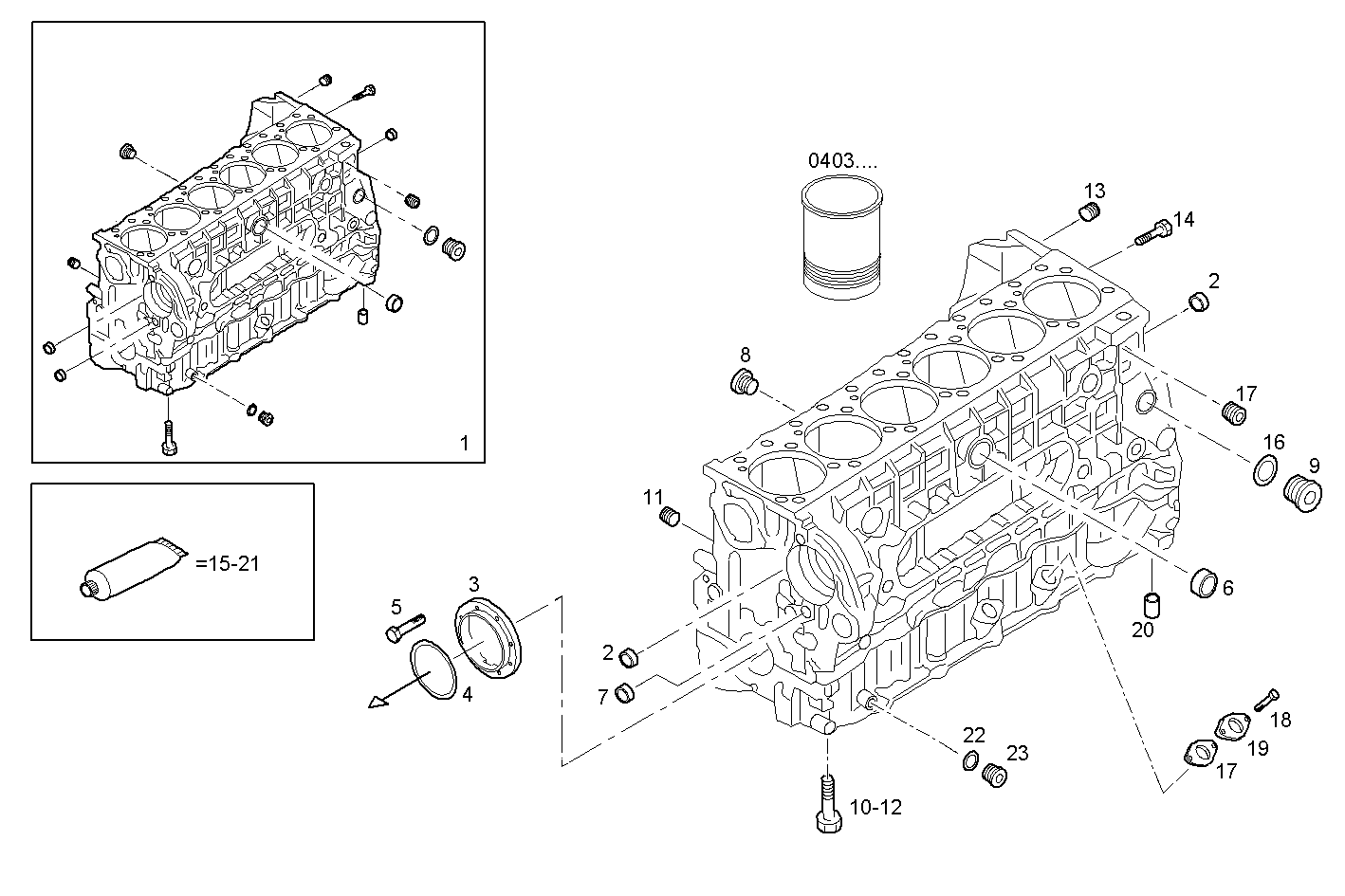

| Item |
Part number |
Description |
|
1 |
504194046 |
CRANKCASE ASSY |
|
2 |
16990670 |
LOCK PLUG �22 MM |
|
3 |
99466465 |
FRONT COVER |
|
4 |
17292281 |
O-RING �126,59 MM SP=3,53 MM |
|
5 |
16707134 |
SOCKET-HEAD SCREW M8X20 MM |
|
6 |
16991370 |
LOCK PLUG �45 MM |
|
7 |
16990870 |
LOCK PLUG �28 MM |
|
8 |
504138062 |
PLUG �10 MM |
|
9 |
16992611 |
THREADED PLUG M22X1,5 |
|
10 |
500354582 |
HEXAGON BOLT M10X1,5X120 MM |
|
11 |
504051237 |
THREADED PLUG DIAM=1/4" |
|
12 |
500354581 |
HEXAGON BOLT M16X2X156 MM |
|
13 |
504051236 |
THREADED PLUG DIAM=1/8" |
|
14 |
500356932 |
LOCK PLUG �12 MM |
|
15 |
2995644 |
ADHESIVE/STICKER |
|
16 |
99489022 |
SEAL GASKET �22X30 MM SP=1,5 MM |
|
17 |
504228782 |
FLAT ENGINE GASKET |
|
18 |
16600224 |
HEXAGON BOLT M8X1,25X18 MM |
|
19 |
504249330 |
CONNECTING PLATE |
|
20 |
99467554 |
DOWEL PIN �14 MM |
|
21 |
2992693 |
ADHESIVE/STICKER |
|
22 |
99489020 |
SEAL GASKET �18X26 MM SP=1,5 MM |
|
23 |
16992515 |
THREADED PLUG M18X1,5 |
