F2BE4683A*E001

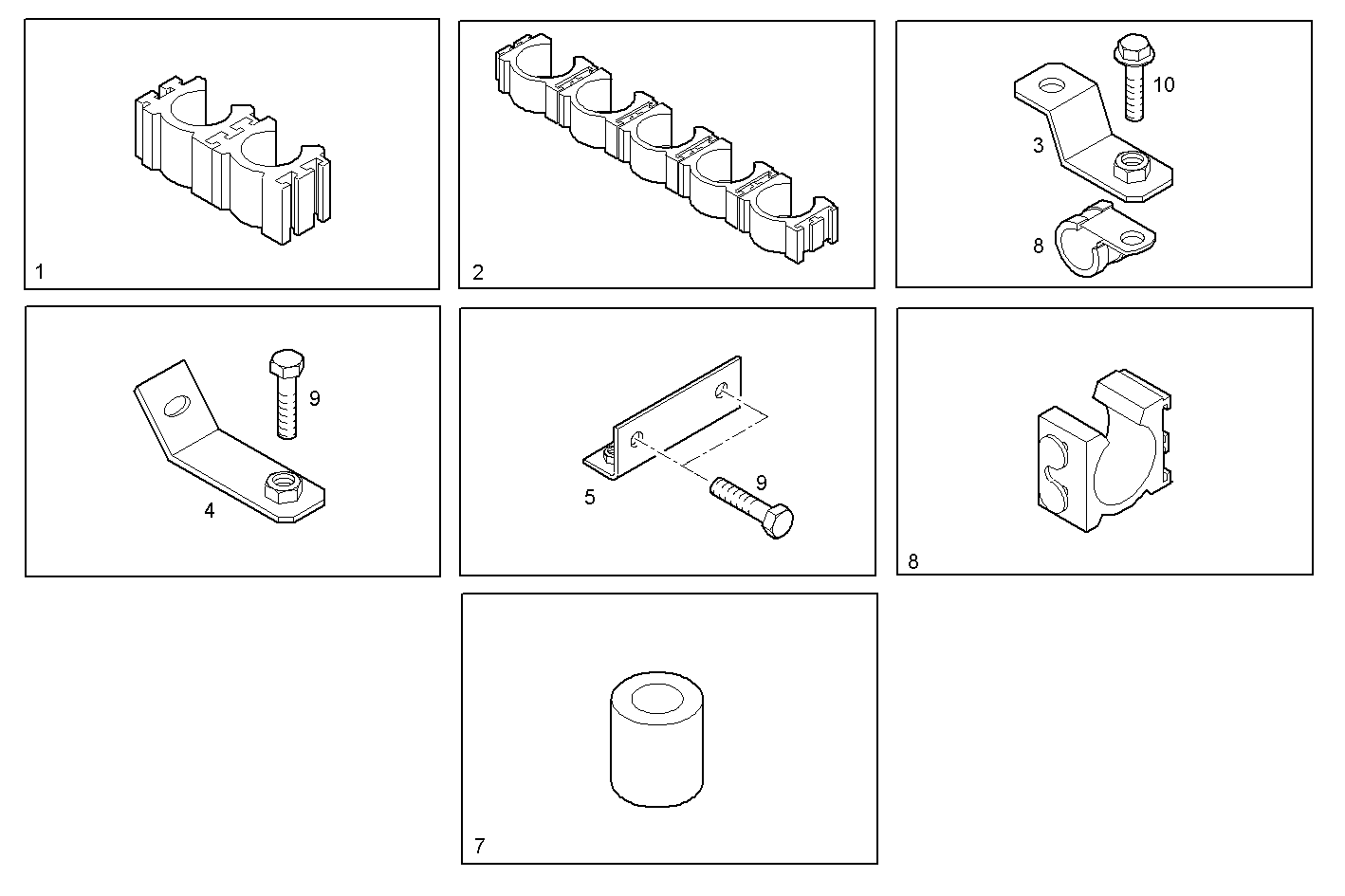

0407.010 FIXING EQUIPMENT
| Item | Part number | Description |
|---|---|---|
| 1 | 504060998 | SPRING CLAMP |
| 2 | 504060889 | RETAINER |
| 3 | 504060992 | FASTENING BRACKET |
| 4 | 504060888 | FASTENING BRACKET |
| 5 | 504024200 | FASTENING BRACKET |
| 6 | 504052515 | RETAINER |
| 7 | 17816214 | SPACER Ø10X8,5X18 MM |
| 8 | 17316592 | PIPE CLIP |
| 9 | 18139424 | HEXAGON BOLT M10X20 MM |
| 10 | 16673635 | HEXAGON BOLT M8X1.25X20 |
