F2BE4683A*E001

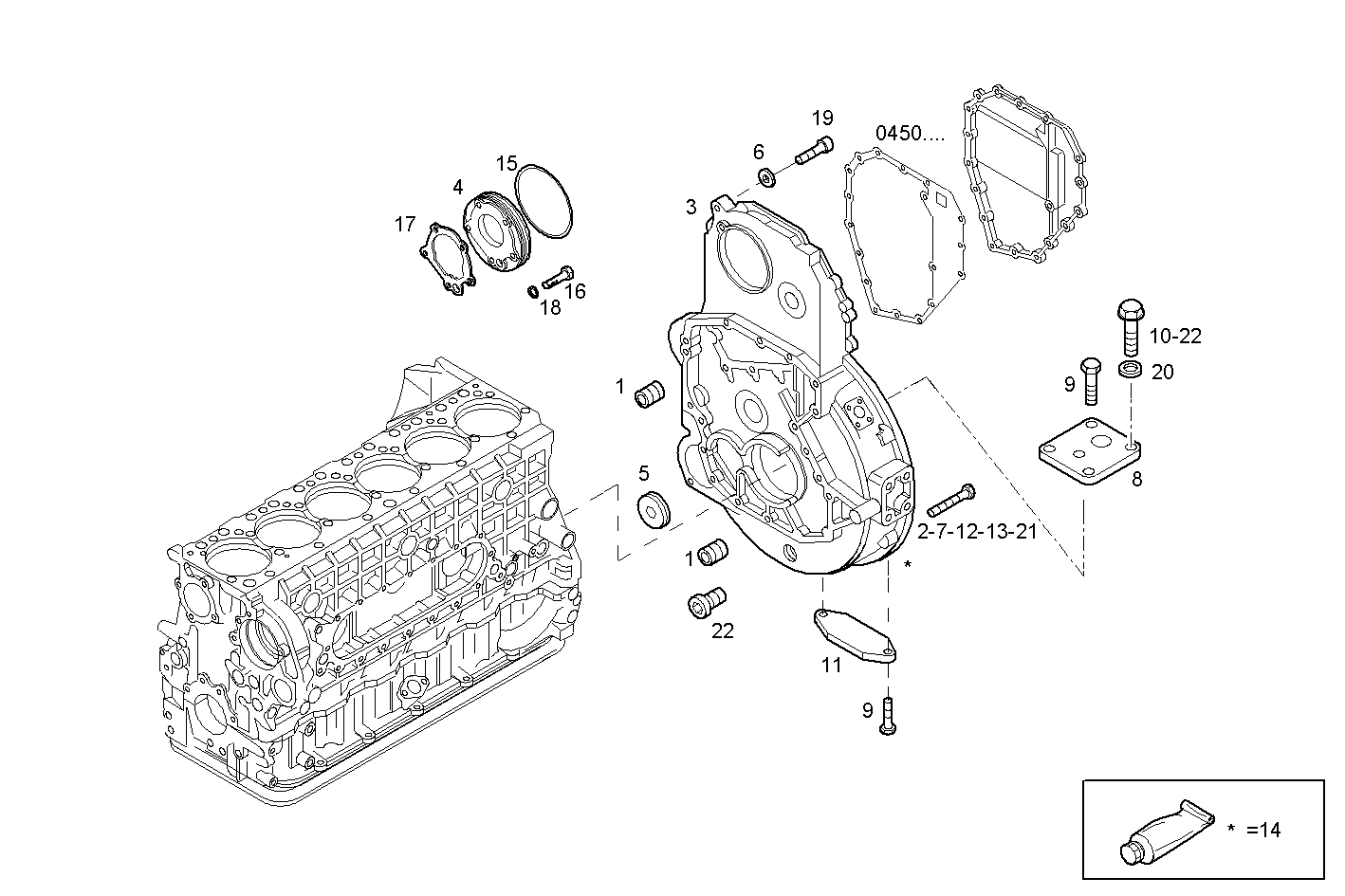

0432.021 REAR C.CASE COVER

Iveco/FPT REAR C.CASE COVER

Item Part number Description
1 500314968 DOWEL PIN Ø12 MM
2 16593224 HEXAGON BOLT M12X1,7X80 MM
3 504193109 TIMINGGEAR HOUSIN ASSY
4 504184811 YOKE
5 500392568 THREADED PLUG M52
6 98474303 WASHER Ø8X14 MM SP=2,3 MM
7 16593125 HEXAGON BOLT M10X100 MM
8 504231733 PLATE
9 16673735 HEXAGON BOLT M8X25 MM
10 61315661 HEXAGON BOLT M8X30
11 4851842 COVER
12 16587325 HEXAGON BOLT M10X35 MM
13 16593625 HEXAGON BOLT M12X120 MM
14 2995644 ADHESIVE/STICKER
15 17292381 O-RING Ø129,8 MM SP=3,53 MM
16 16690724 CYLIND-HEAD SCREW M8X30 MM
17 504045791 FLAT ENGINE GASKET
18 17096824 WASHER Ø8,40X15 MM
19 500348322 CYLIND-HEAD SCREW M8X1,25X25 MM
20 14496524 WASHER Ø8X17 MM
21 16599125 HEXAGON BOLT M10X130 MM
22 504123677 THREADED PLUG M 52X2
22 16597925 HEXAGON BOLT M8X14 MM
