F2BE4683A*E001

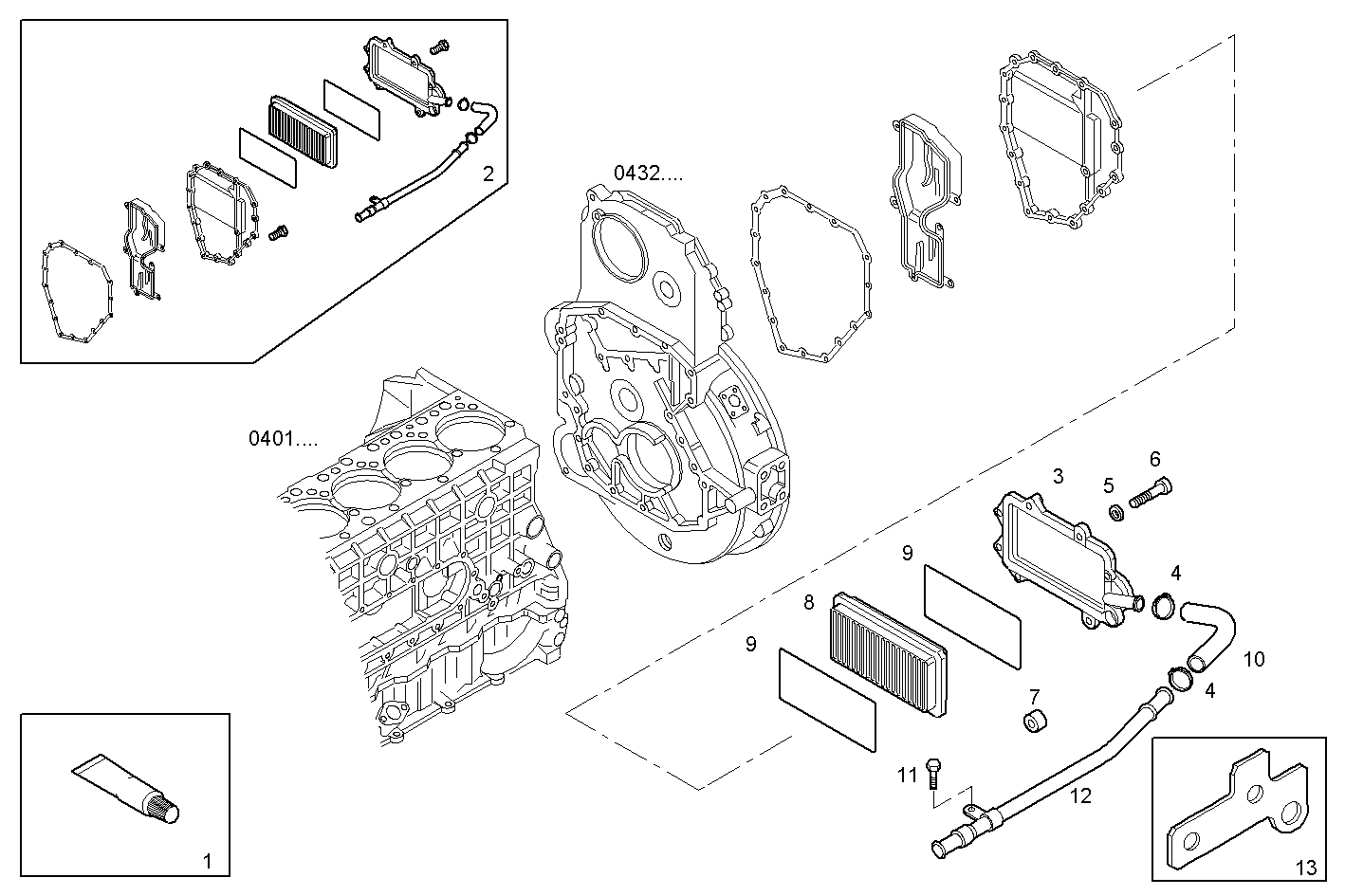

0450.012 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 2995644 | ADHESIVE/STICKER |
| 2 | 504068618 | COVER ASSY |
| 3 | 500361556 | COVER |
| 4 | 17764694 | CLIP Ø25/40 MM |
| 5 | 17096824 | WASHER Ø8,40X15 MM |
| 6 | 16690625 | CYLIND-HEAD SCREW M8X25 MM |
| 7 | 500361558 | BUSH |
| 8 | 504209107 | FILTER breather |
| 9 | 2996234 | GASKET |
| 10 | 504015788 | RUBBER SLEEVE |
| 11 | 16597925 | HEXAGON BOLT M8X14 MM |
| 12 | 504016041 | PIPE |
| 13 | 504014675 | FASTENING BRACKET |
