F2BE4683A*E001

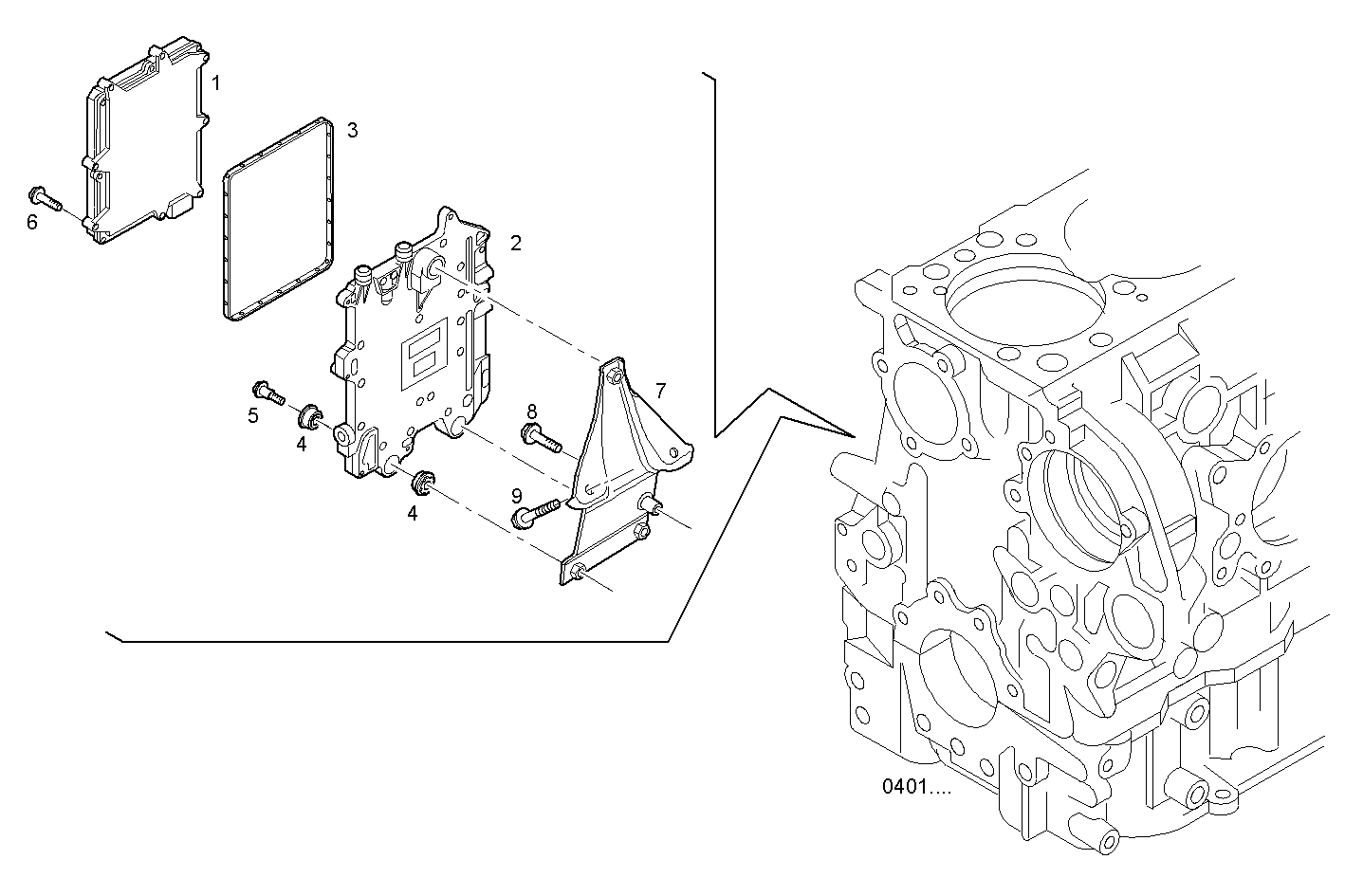

1701.029 ELECTRONIC CONTROL UNIT
| Item | Part number | Description |
|---|---|---|
| 1 | 8094789 | ELECTR.CONTR.UNIT E.C.U. |
| 2 | 504097239 | SUPPORT |
| 3 | 504070042 | GASKET |
| 4 | 98498817 | DOWEL |
| 5 | 16586925 | HEXAGON BOLT M8X50 MM |
| 6 | 16586025 | HEXAGON BOLT M6X30 MM |
| 7 | 504225723 | RETAINER |
| 8 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
| 9 | 16673635 | HEXAGON BOLT M8X1.25X20 |
