F2BE4683A*E001

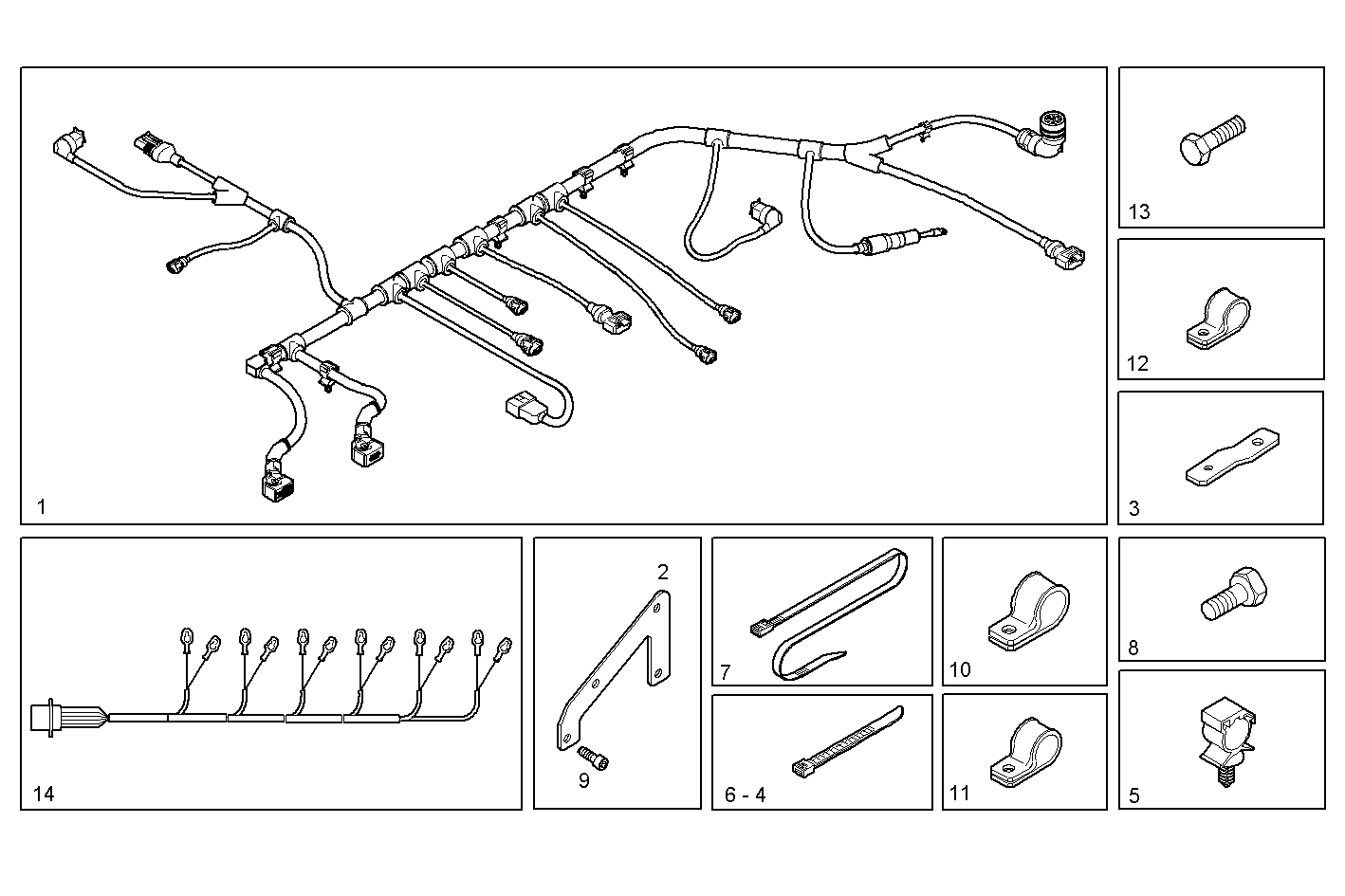

1730.084 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 504233009 | SET OF WIRING |
| 2 | 504172325 | FASTENING BRACKET |
| 3 | 504049754 | FASTENING BRACKET |
| 4 | 504023286 | CABLE STRAP |
| 5 | 504000058 | CLIP |
| 6 | 99455033 | CLIP |
| 7 | 42099097 | CABLE STRAP |
| 8 | 16597925 | HEXAGON BOLT M8X14 MM |
| 9 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 10 | 17310501 | FASTENING BRACKET �10 MM |
| 11 | 17310401 | FASTENING BRACKET �8 MM |
| 12 | 17310001 | FASTENING BRACKET �4 MM |
| 13 | 11612224 | HEXAGON BOLT M6X12 MM |
| 14 | 500336911 | WIRE/CABLE FOR INJECTORS |
