F2BE4683A*E001

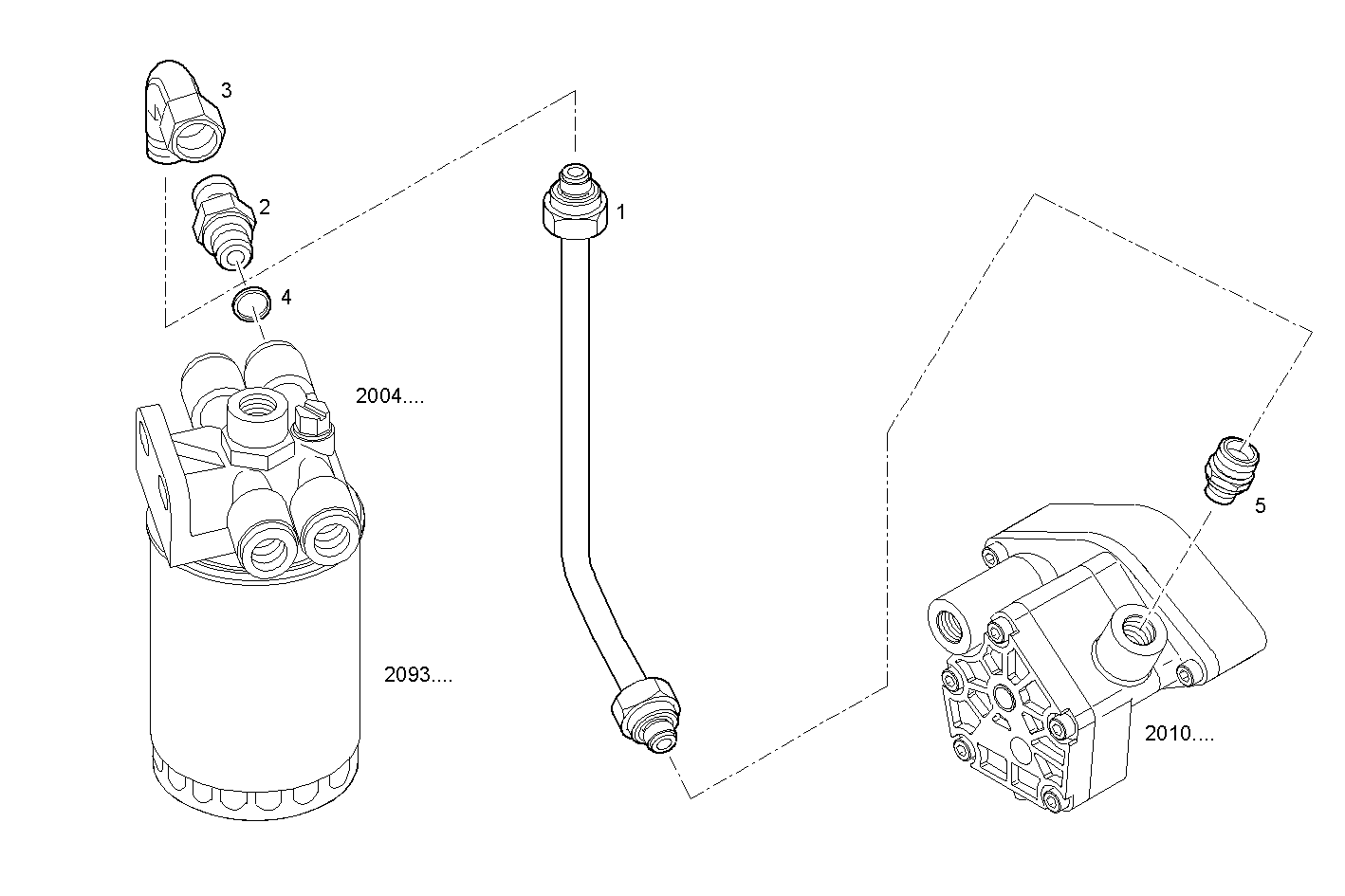

2033.017 FUEL LINES -INLET TO FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 504256563 | FUEL LINE |
| 2 | 1245715 | THREADED UNION M14X1,5 - M18X1,5 |
| 3 | 16504114 | ELBOW COUPLING M18X1,5 |
| 4 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 5 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
