F2BE4683A*E001

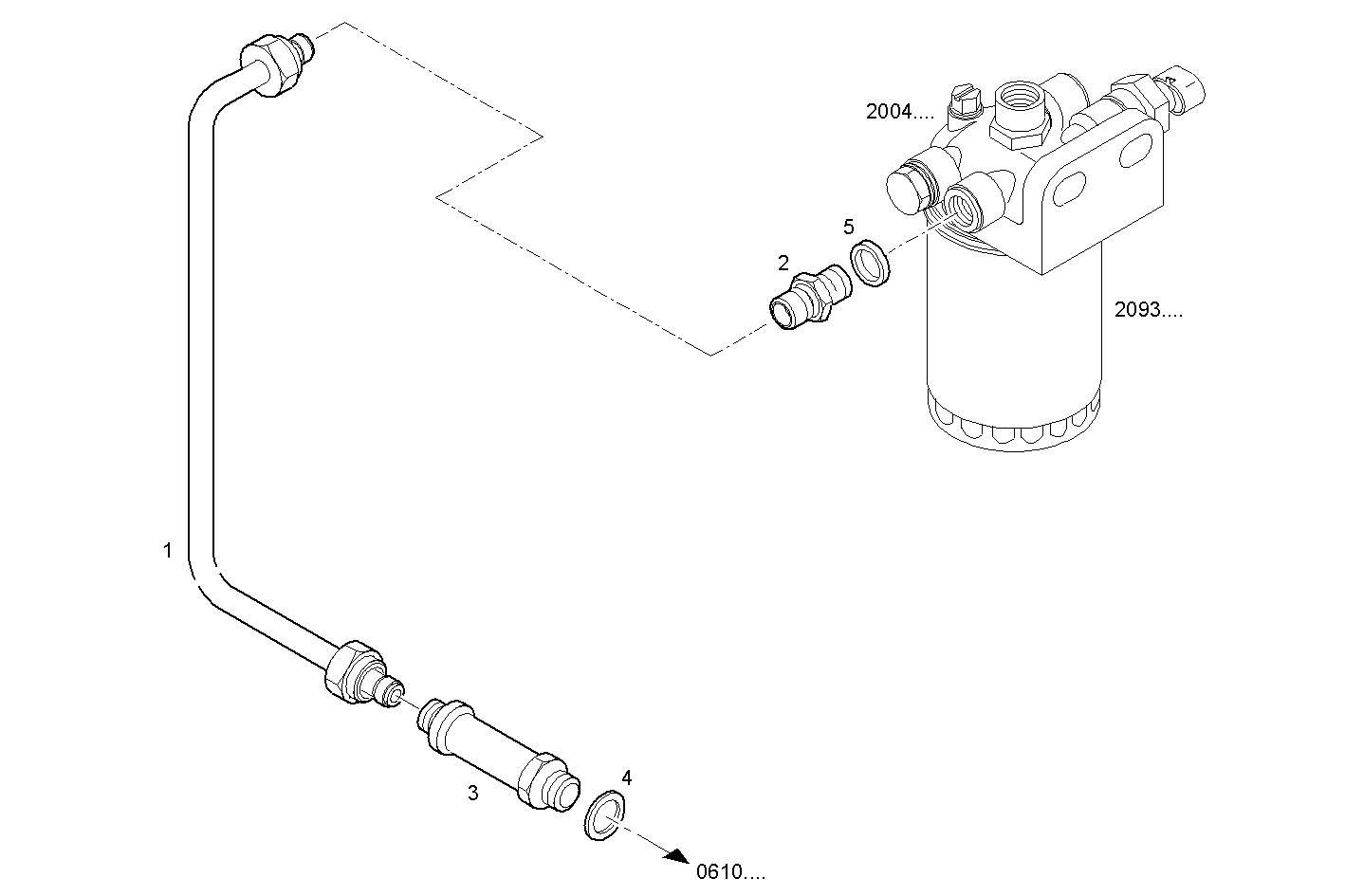

2034.019 FUEL LINES - FILTER TO CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 504232766 | FUEL LINE ASSY |
| 2 | 1245715 | THREADED UNION M14X1,5 - M18X1,5 |
| 3 | 99455350 | CONNECTION PIPE M16X1,5 - M18X1,5 |
| 4 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 5 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
