F2BE4683A*E001

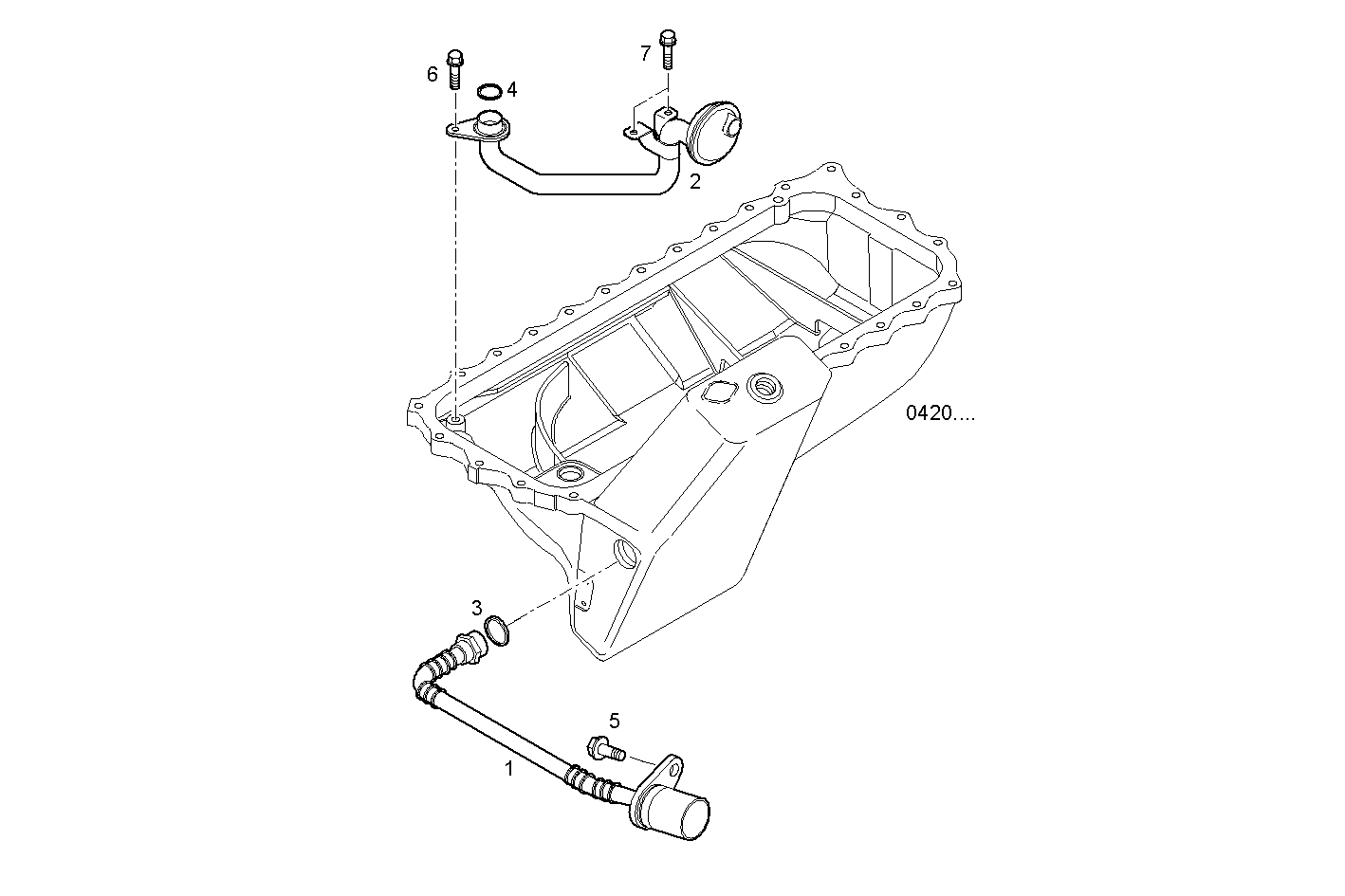

3050.017 SUCTION STRAINER
| Item | Part number | Description |
|---|---|---|
| 1 | 504120901 | SUCTION STRAINER |
| 2 | 504120831 | SUCTION STRAINER |
| 3 | 99489022 | SEAL GASKET Ø22X30 MM SP=1,5 MM |
| 4 | 17289081 | O-RING Ø31,34X3,53 MM |
| 5 | 16707134 | SOCKET-HEAD SCREW M8X20 MM |
| 6 | 16673735 | HEXAGON BOLT M8X25 MM |
| 7 | 16585925 | HEXAGON BOLT M6X25 MM |
