F2BE4683A*E001

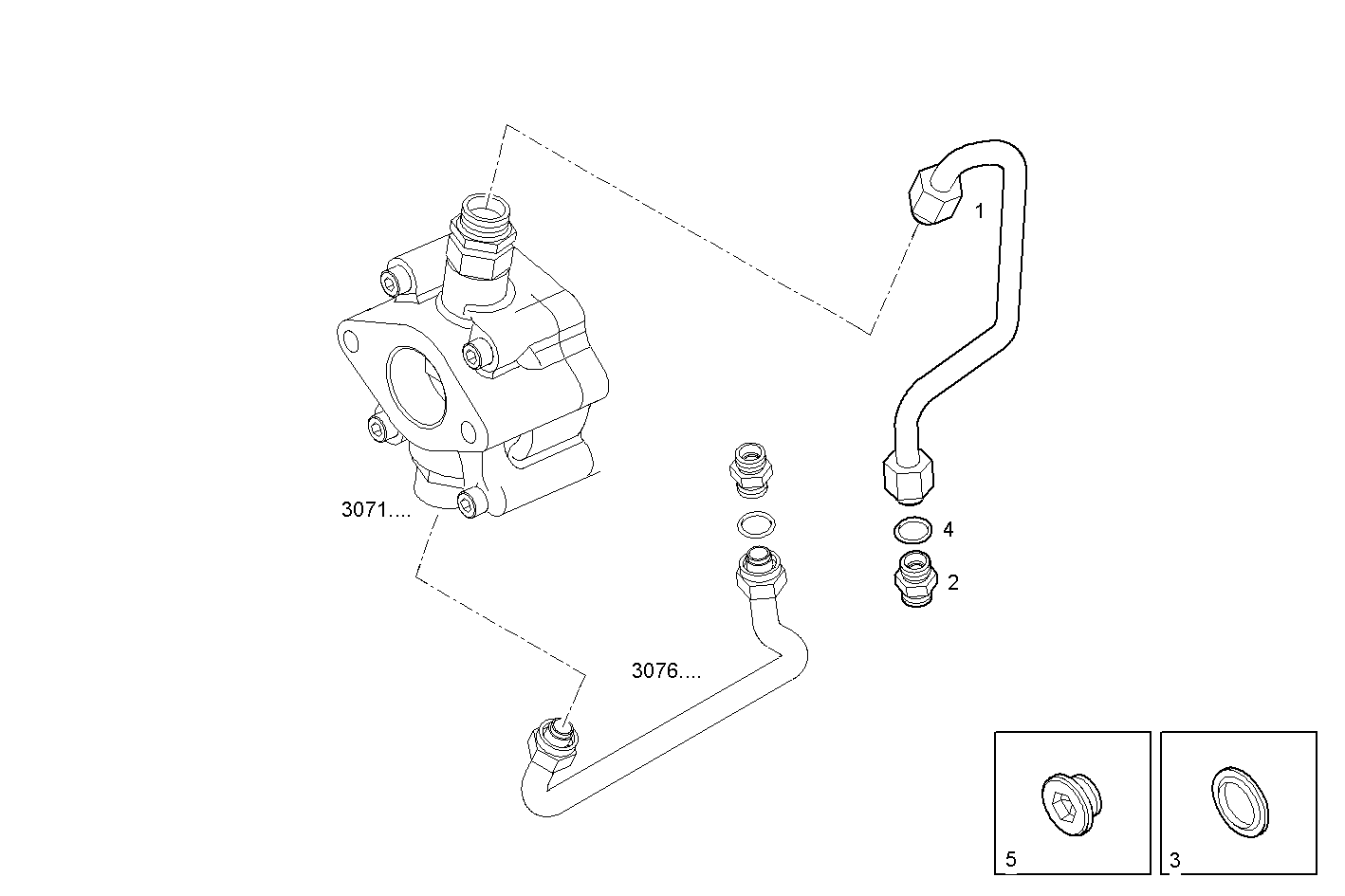

3077.000 PIPE EXHAUST OIL PUMP EMPTYING
| Item | Part number | Description |
|---|---|---|
| 1 | 504062583 | OIL LINE |
| 2 | 504061572 | THREADED UNION M28x1,5 - M22X1,5 |
| 3 | 98474311 | SEAL GASKET Ø18X26 MM |
| 4 | 99432291 | SEAL GASKET Ø28 MM |
| 5 | 16992515 | THREADED PLUG M18X1,5 |
