F2BE4683A*E001

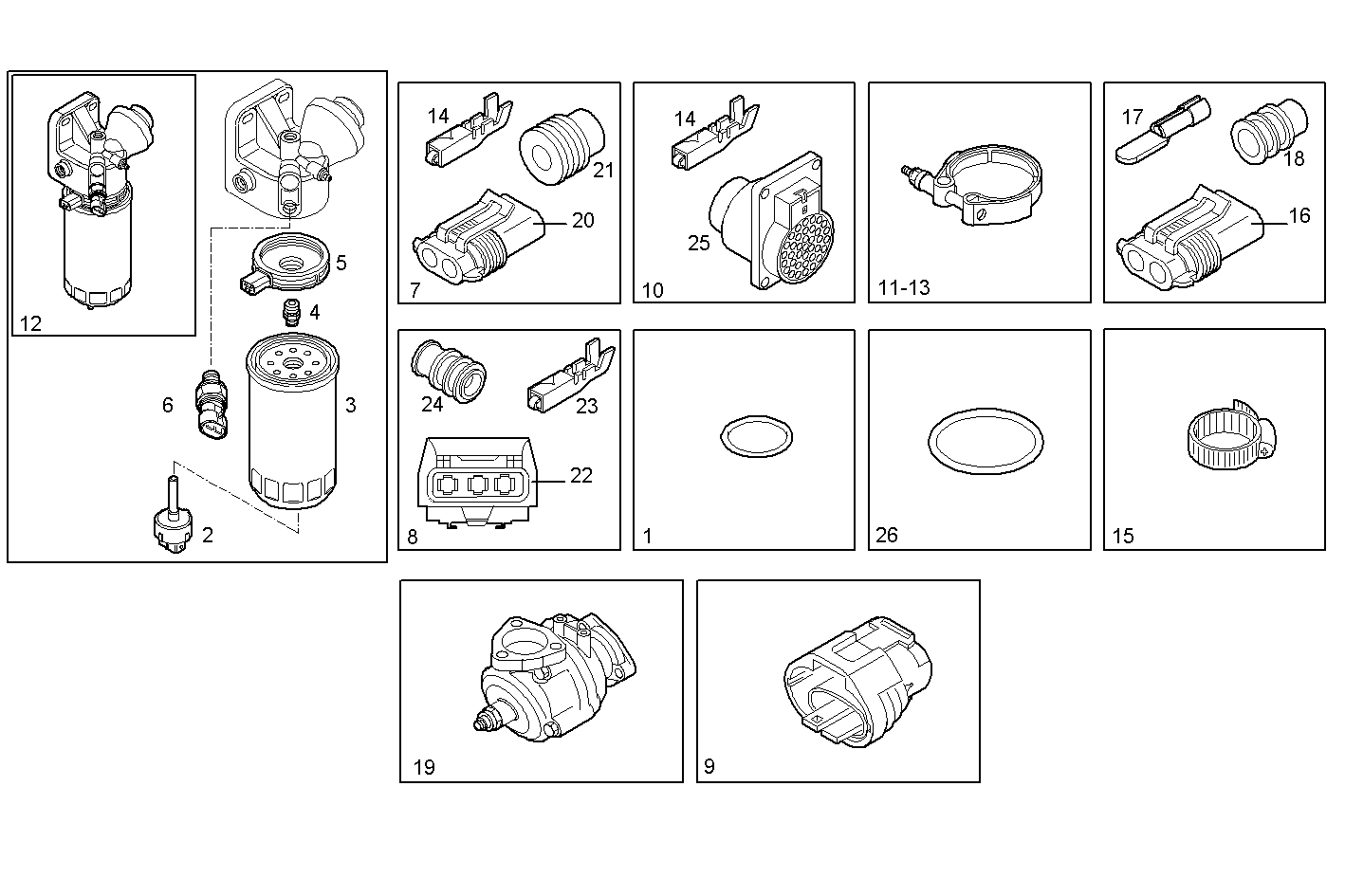

8600.314 ACCESSORIES

Iveco/FPT ACCESSORIES

Item Part number Description
1 17284681 O-RING Ø61,6 MM SP=2,62 MM
2 42540204 SENSOR
3 2992662 FUEL FILTER ELEM.
4 42545832 THREADED UNION [FROM 11-01-05]
5 42548584 HEATER FUEL FILTE
6 504064817 THERMOSWITCH
7 8030571 WIRE CONNECTOR assy 2 pin female - packard
8 8030575 CONNECTION ASSY
9 99465498 CONNECTION
10 8031432 WIRE CONNECTOR assy 30 pin female
11 504073261 CLIP dia. 104
12 504082415 FUEL FILTER ASSY
13 4800661 CLIP Ø 75 mm.
14 99462549 TERMINAL
15 99435103 CLIP
16 98435346 WIRE CONNECTOR 2 pin female
17 98435372 TERMINAL
18 4861937 RUBBER BUSH
19 504254852 THERMOSTAT
20 12330587 WIRE CONNECTOR
21 12329982 GASKET
22 99430234 PLUG COUPLING
23 12309290 TERMINAL
24 4835259 GASKET
25 504013633 CONNECTION
26 17291281 O-RING Ø94,84 MM SP=3,53 MM
