F2CE0681B*B200

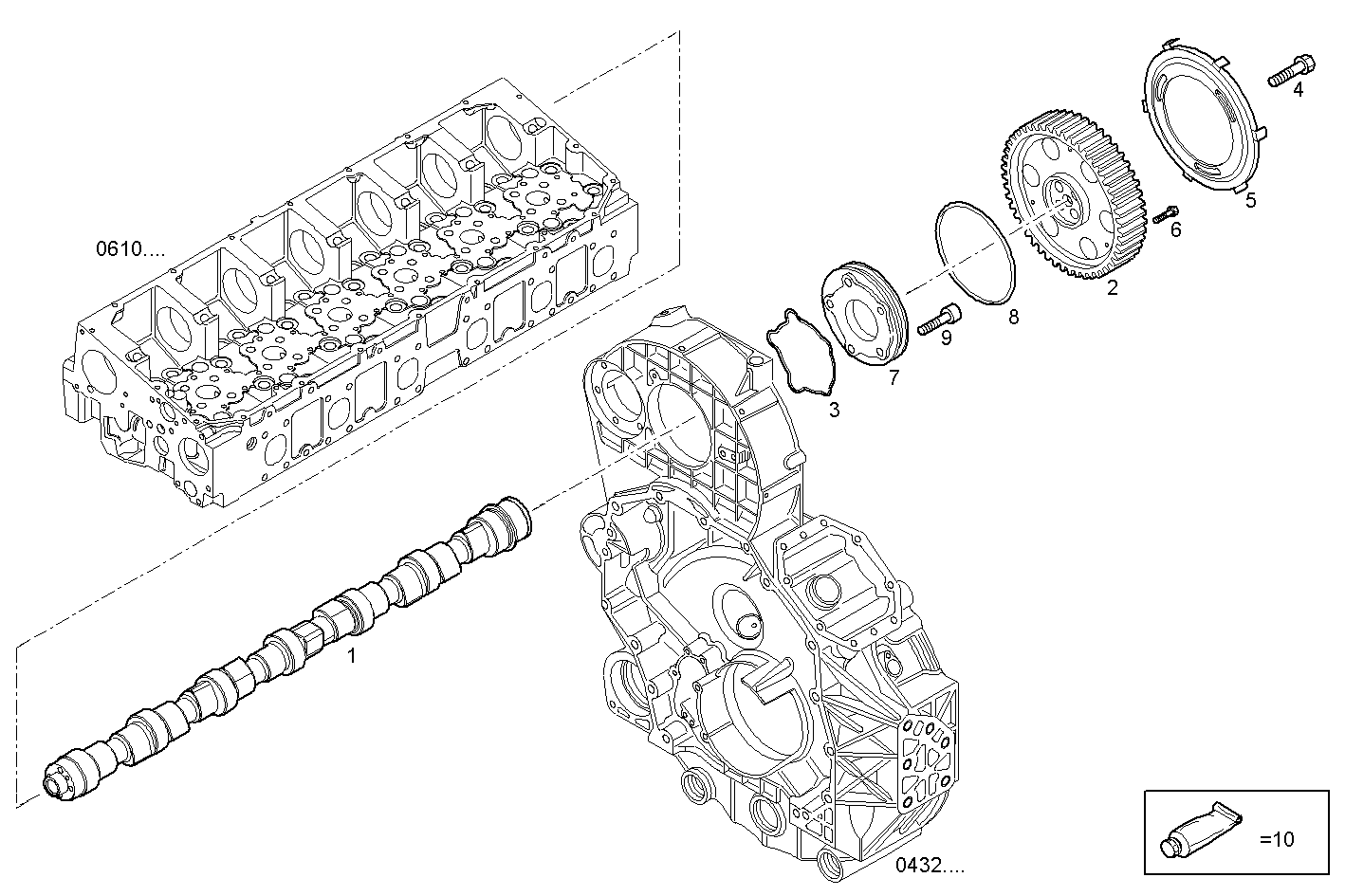

1250.098 TIMING PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 504326209 | CAMSHAFT |
| 2 | 504124637 | CAMSHAFT PINION |
| 3 | 17290781 | O-RING Ø78,97X3,53 MM |
| 4 | 16676135 | HEXAGON BOLT M10X45 MM |
| 5 | 504142643 | PLATE |
| 6 | 500397562 | HEXAGON BOLT M6X1X22 MM |
| 7 | 504127775 | COVER REAR |
| 8 | 17292381 | O-RING Ø129,8 MM SP=3,53 MM |
| 9 | 16586625 | HEXAGON BOLT M8X35 MM |
| 10 | 2995644 | ADHESIVE/STICKER |
