F2CE0681B*B200

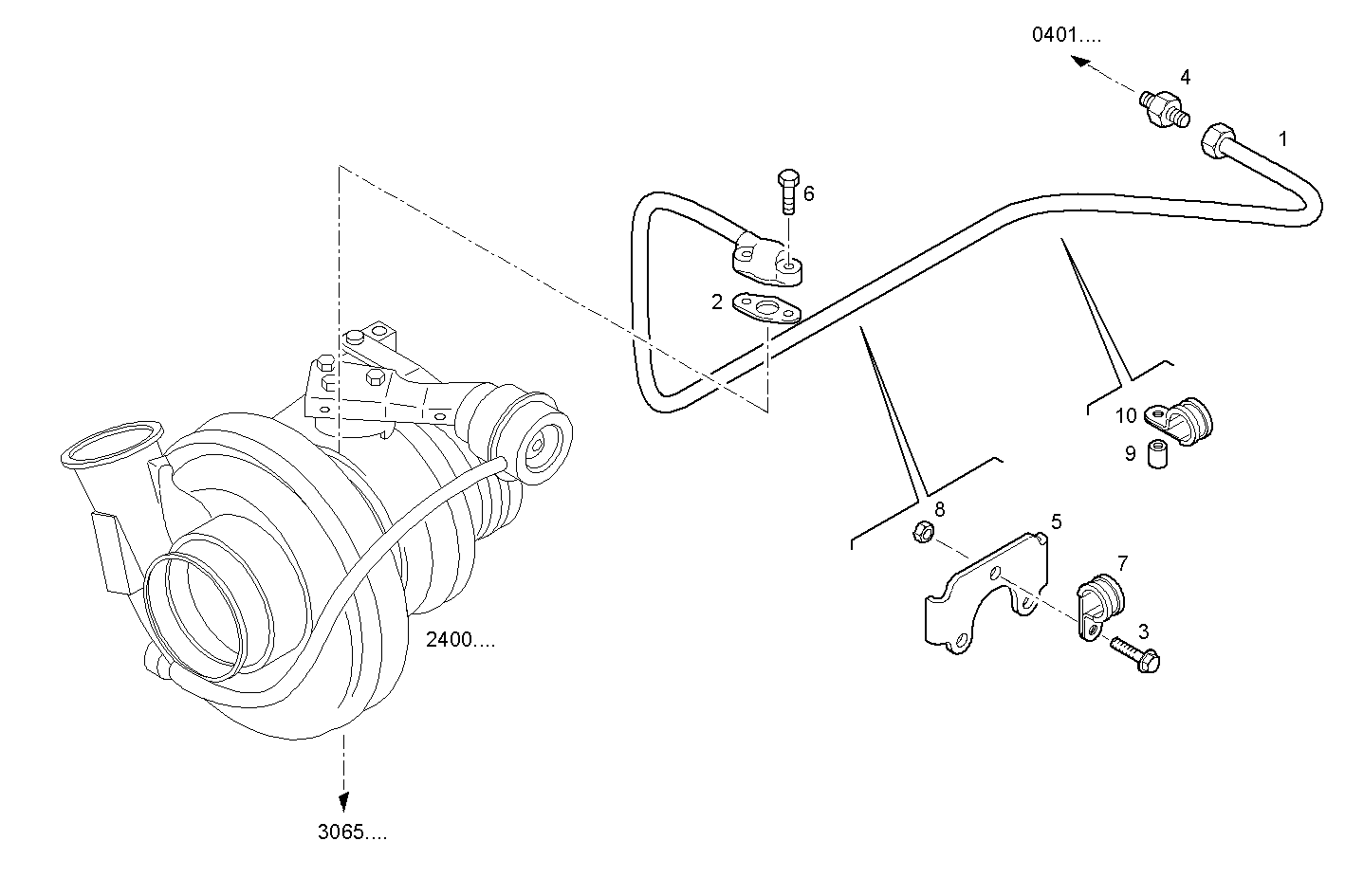

3064.038 OIL DELIVERY LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 504268693 | OIL LINE |
| 2 | 61318303 | GASKET |
| 3 | 16673835 | HEXAGON BOLT M8X30 MM |
| 4 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 5 | 504213767 | RETAINER |
| 6 | 16691424 | HEXAGON BOLT M8X65 |
| 7 | 10450590 | PIPE CLIP Ø18 MM |
| 8 | 17037925 | HEXAGON NUT M8X1,25 |
| 9 | 17816214 | SPACER Ø10X8,5X18 MM |
| 10 | 17316592 | PIPE CLIP |
