F2CE0681B*B200

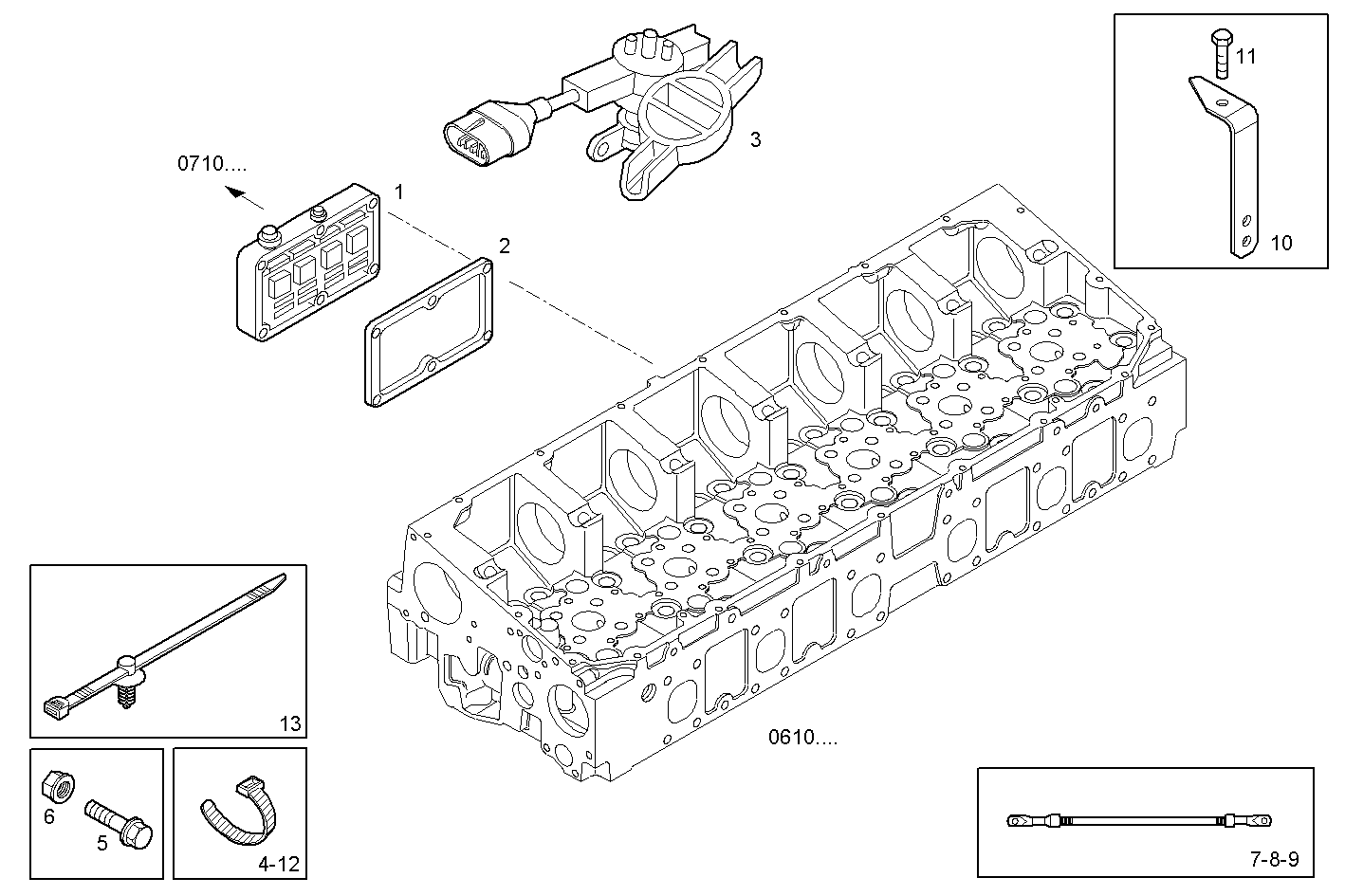

3650.015 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 504041252 | RESISTOR 24V - 120/150A |
| 2 | 504375264 | FLAT ENGINE GASKET |
| 3 | 504361301 | RELAY |
| 4 | 99455033 | CLIP |
| 5 | 16978124 | HEXAGON BOLT |
| 6 | 17044625 | HEXAGON NUT M6 |
| 7 | 504345642 | WIRE/CABLE |
| 8 | 504345570 | WIRE/CABLE |
| 9 | 504119997 | WIRE/CABLE |
| 10 | 41207690 | SUPPORT |
| 11 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 13 | 504023286 | CABLE STRAP |
