F2CE0681B*B200

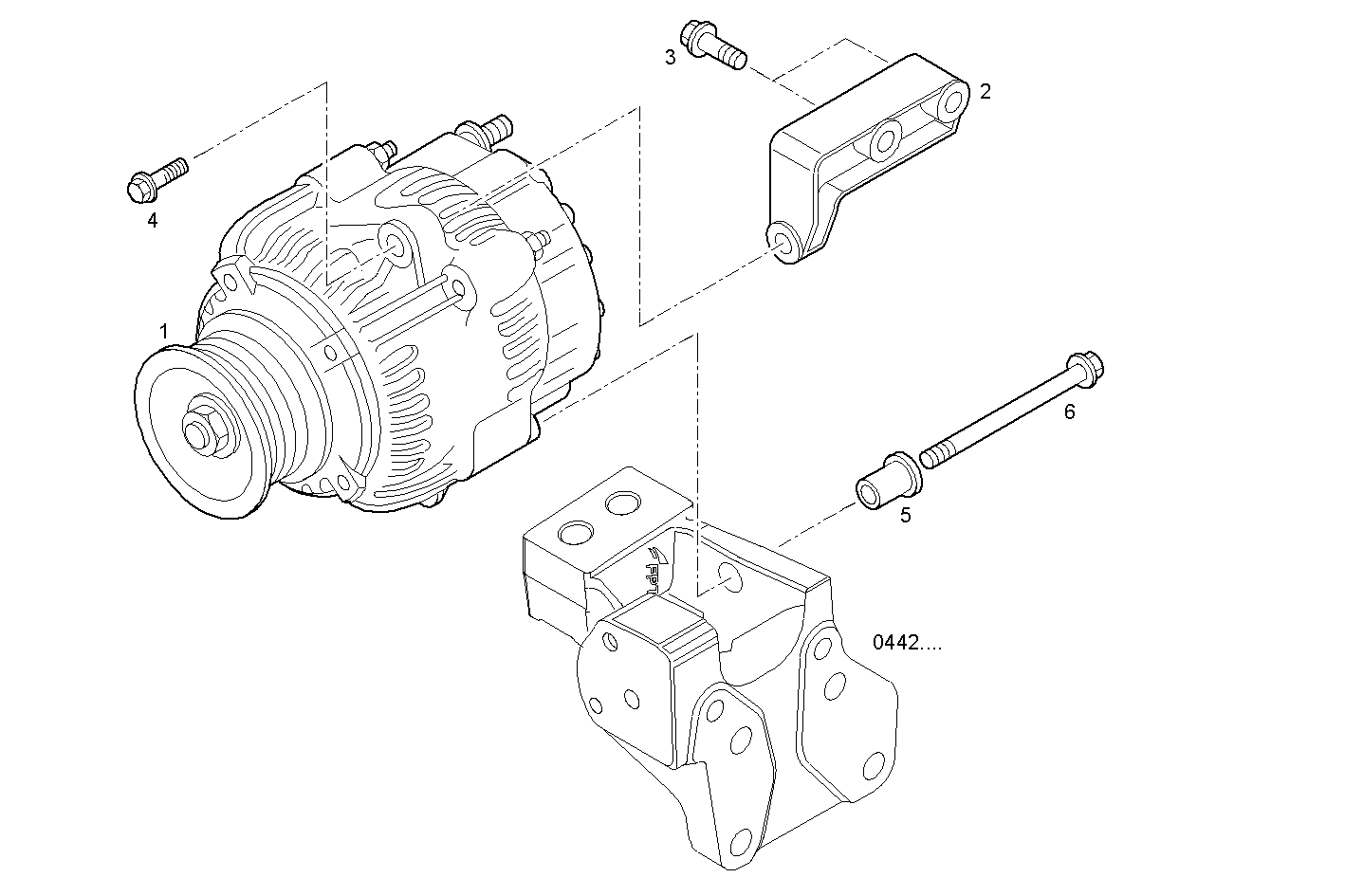

4000.027 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504286394 | ALTERNATOR ASSY |
| 2 | 504164534 | GENERATOR SUPPORT UPPER |
| 3 | 16673835 | HEXAGON BOLT M8X30 MM |
| 4 | 16586725 | HEXAGON BOLT M8X1.25X40 MM |
| 5 | 99484032 | SPACER BUSH |
| 6 | 99474161 | SCREW M10 |
