F2CE0681B*B201

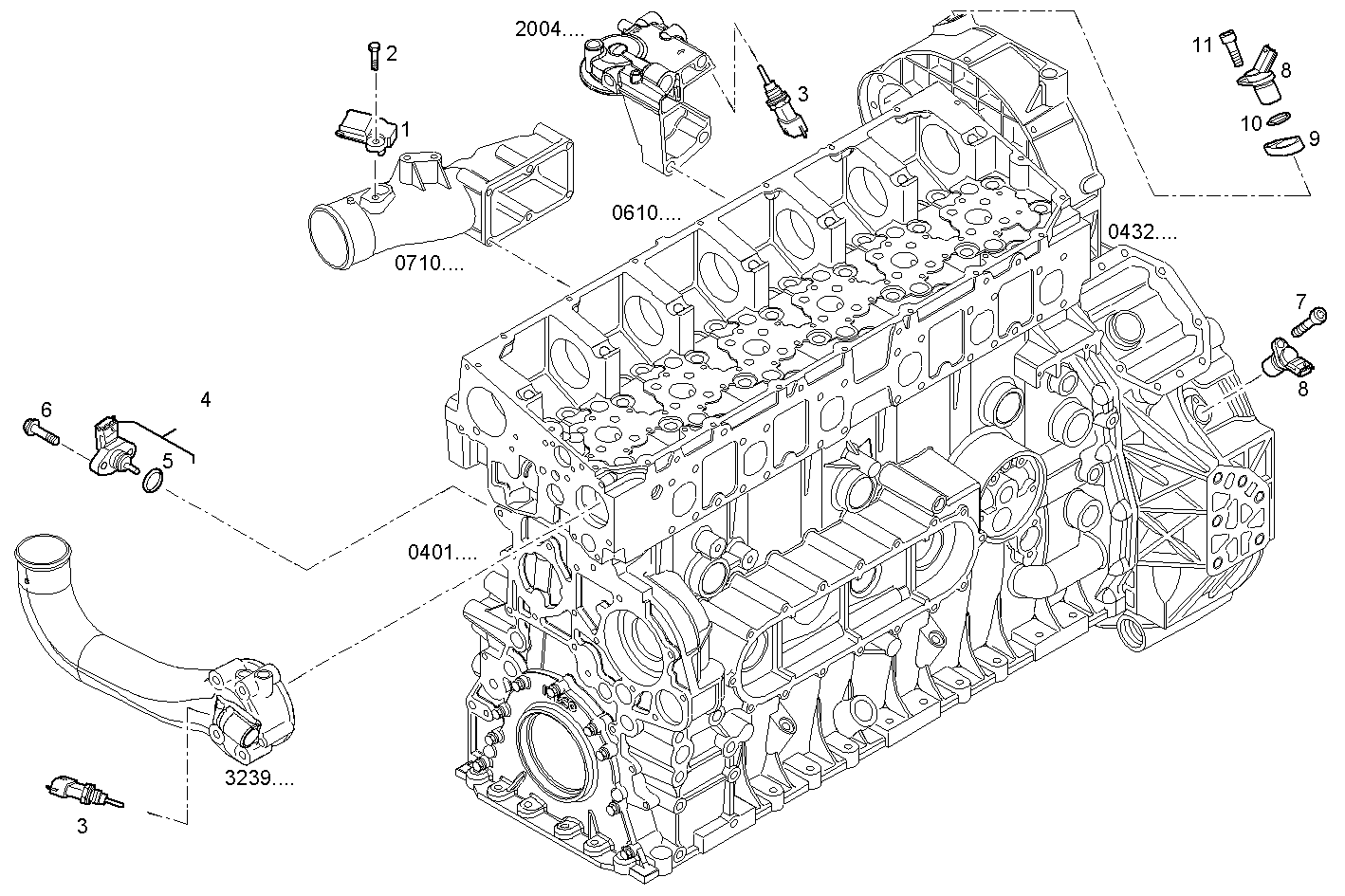

1710.041 SENSORS
| Item | Part number | Description |
|---|---|---|
| 1 | 504073323 | SENSOR AIR PRESS. & TEMPER. [FROM # 158928] |
| 2 | 16597225 | HEXAGON BOLT M6X18 MM |
| 3 | 500382599 | TEMP. TRANSMITTER PRESS. & TEMPER. |
| 4 | 4890193 | SENSOR OIL PRESS. & TEMPER. |
| 5 | 4895477 | O-RING |
| 6 | 4899110 | HEXAGON BOLT |
| 7 | 16688925 | CYLIND-HEAD SCREW M6X10 |
| 8 | 504096645 | SENSOR |
| 9 | 504163664 | CONNECTING PLATE |
| 10 | 17278481 | O-RING Ø17,17 MM SP=1,78 MM |
| 11 | 16689325 | CYLIND-HEAD SCREW M6X25 |
