F2CE9684H*E003

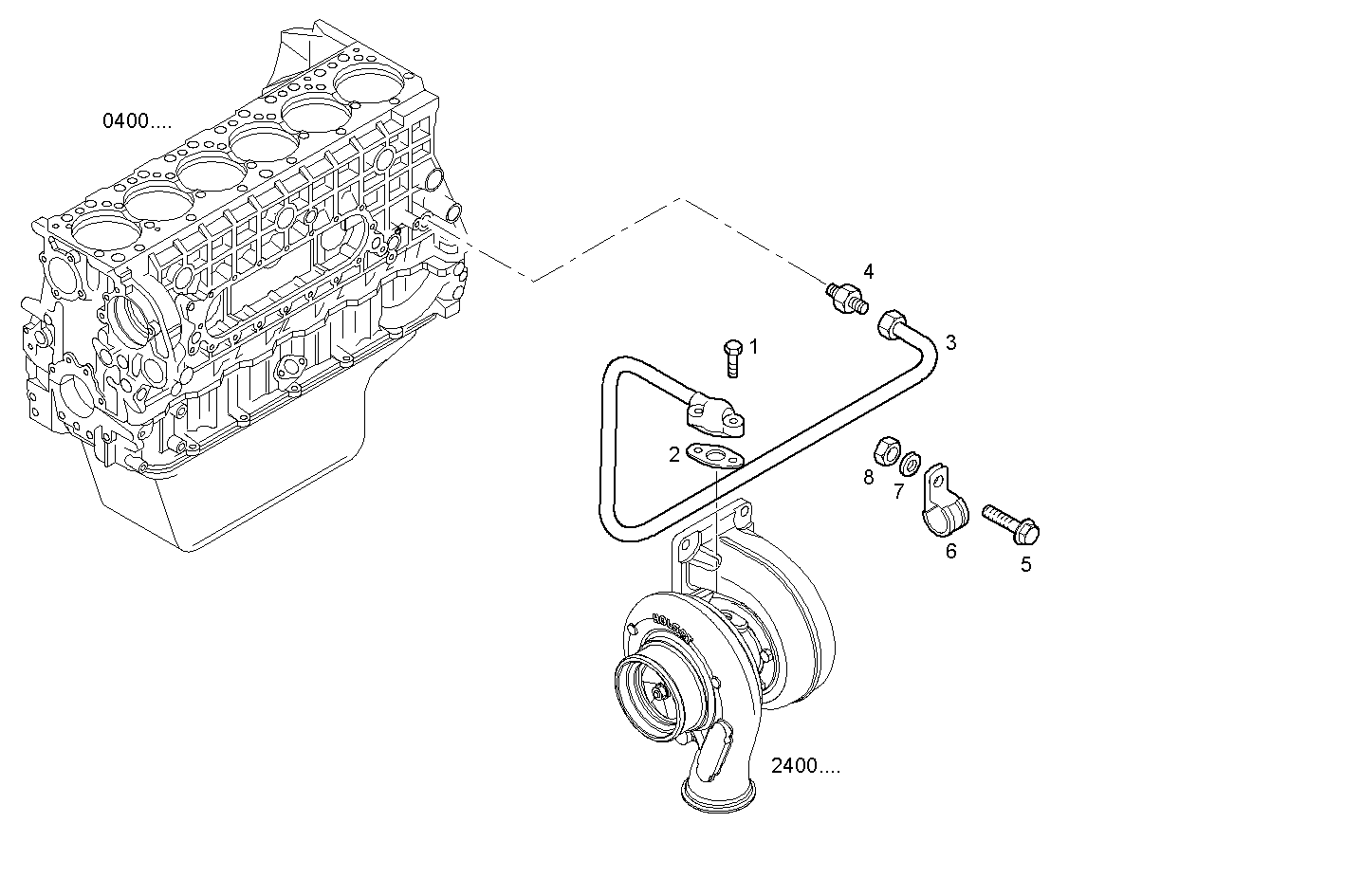

3064.021 OIL DELIVERY LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 16586625 | HEXAGON BOLT M8X35 MM |
| 2 | 61318303 | GASKET |
| 3 | 504215637 | OIL LINE |
| 4 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 5 | 16586325 | HEXAGON BOLT M8X20 MM |
| 6 | 10450590 | PIPE CLIP Ø18 MM |
| 7 | 16666716 | WASHER |
| 8 | 17044725 | HEXAGON NUT M8 |
