F2CE9684H*E003

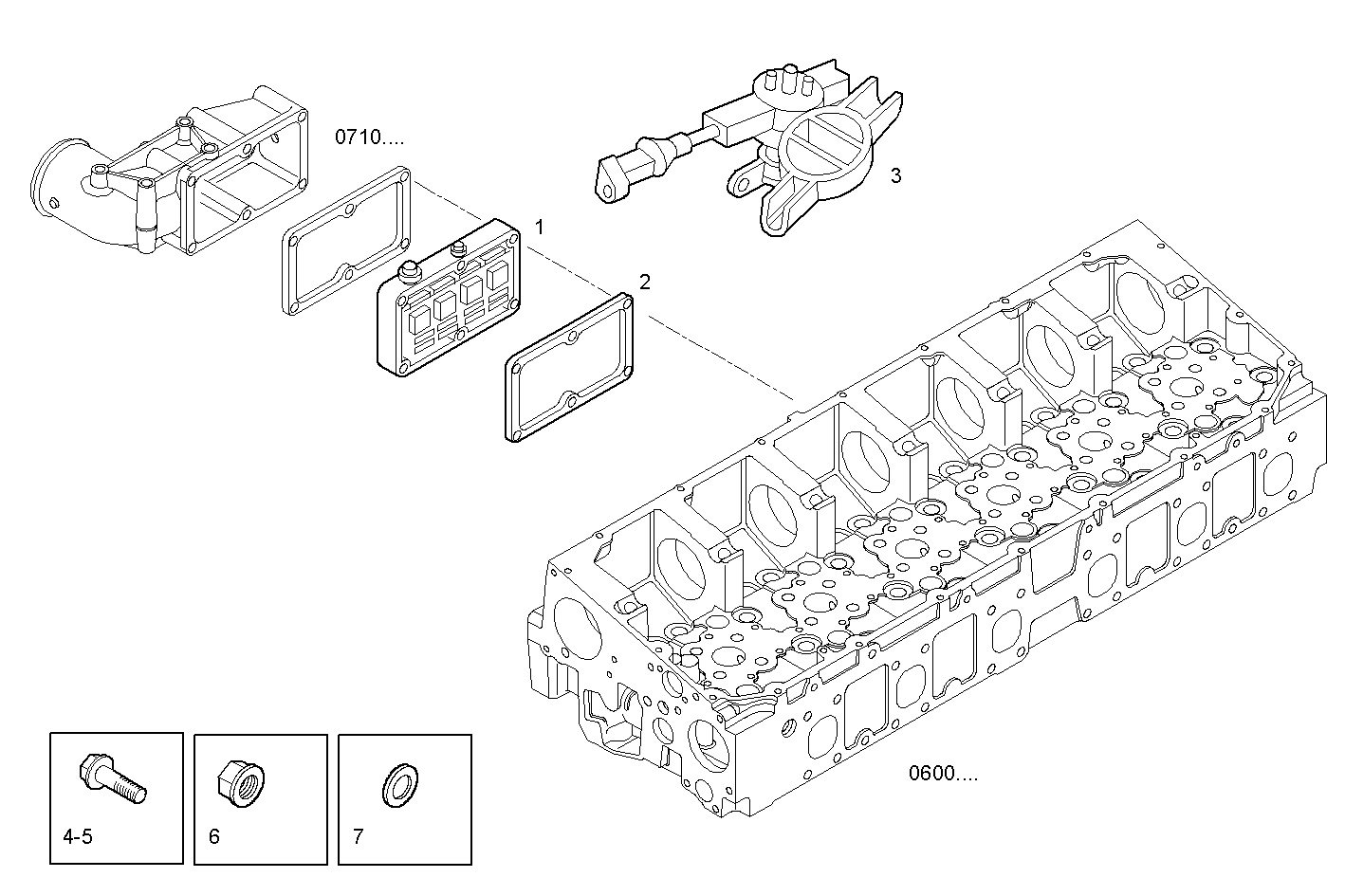

3650.054 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 504041252 | RESISTOR 24V - 120/150A |
| 2 | 504026624 | FLAT ENGINE GASKET |
| 3 | 99449300 | RELAY 24v-150a |
| 4 | 16603525 | SCREW M6X12 MM |
| 5 | 10902321 | HEXAGON BOLT M6X18 MM (8.8) |
| 6 | 17037821 | HEXAGON NUT M6X1 |
| 7 | 17798174 | SPRING WASHER Ø6,1X11,8 MM |
