F2CE9684H*E003

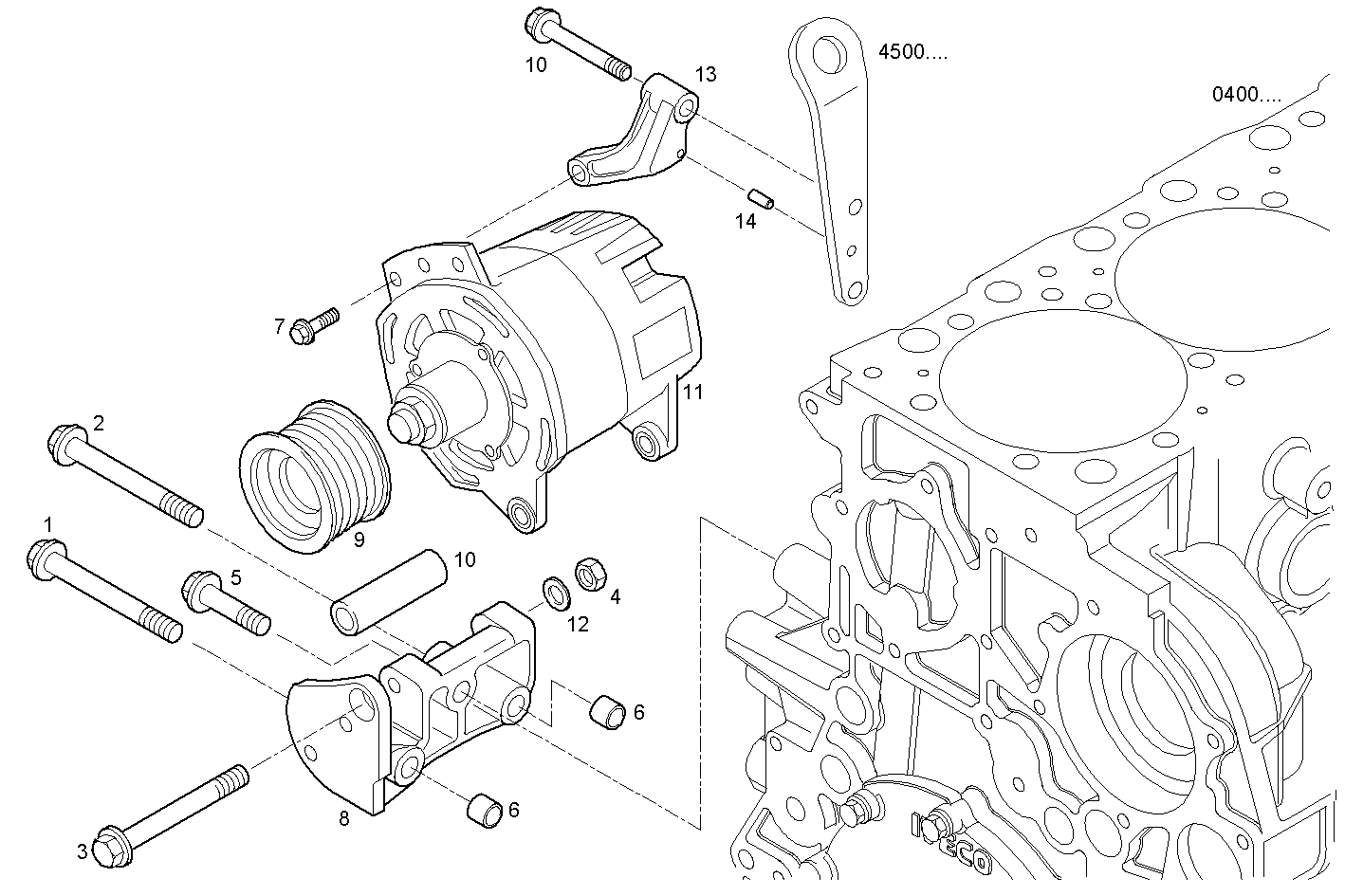

4000.205 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 16587425 | HEXAGON BOLT M10X40 MM |
| 2 | 16676834 | HEXAGON BOLT M10X70 MM |
| 3 | 16600024 | HEXAGON BOLT M12X160 MM |
| 4 | 17038425 | HEXAGON NUT M12 (8) |
| 5 | 16692024 | SCREW M10X20 |
| 6 | 98405462 | DOWEL PIN Ø10,2 MM |
| 7 | 500399332 | HEXAGON BOLT |
| 8 | 504127474 | GENERATOR SUPPORT LOWER |
| 9 | 500359878 | PULLEY |
| 10 | 16588625 | HEXAGON BOLT M12X60 MM |
| 11 | 504065529 | ALTERNATOR |
| 12 | 17097324 | WASHER Ø12X24 MM |
| 13 | 504127473 | GENERATOR SUPPORT TOP |
| 14 | 17221710 | DOWEL PIN |
