F2CE9684L*E005

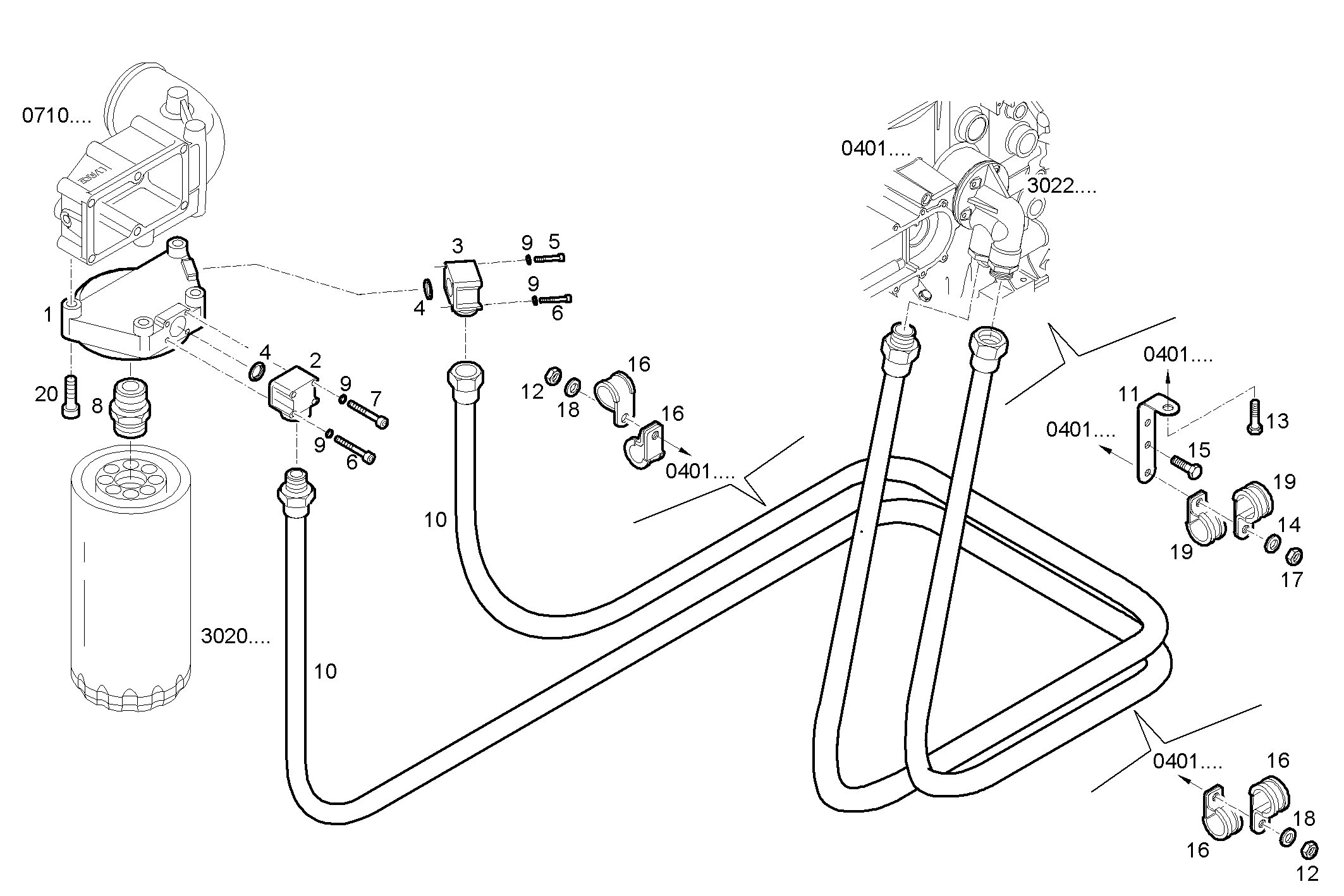

3060.000 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 504218098 SUPPORT
2 504005572 PIPE SOCKET
3 98481998 ELBOW COUPLING
4 17282281 O-RING 2,62x23,47
5 16689724 CYLIND-HEAD SCREW M6X45 MM
6 16689824 CYLIND-HEAD SCREW M6X50 MM
7 16689924 CYLIND-HEAD SCREW
8 99431947 THREADED UNION M30X2
9 17088474 WASHER Ø6X12 MM
10 504218108 OIL LINE
11 500320255 FASTENING BRACKET
12 17044725 HEXAGON NUT M8
13 16597925 HEXAGON BOLT M8X14 MM
14 17094724 WASHER Ø6X12 MM
15 16585825 HEXAGON BOLT M6X20 MM
16 17317390 FASTENING BRACKET Ø28 MM x M8
17 16750125 HEXAGON NUT M6
18 17094924 WASHER Ø8X16 MM
19 17315790 HOSE CLIP Ø28 MM x M6
20 16692824 CYLIND-HEAD SCREW M10X60 MM
