F2CE9687C*E001

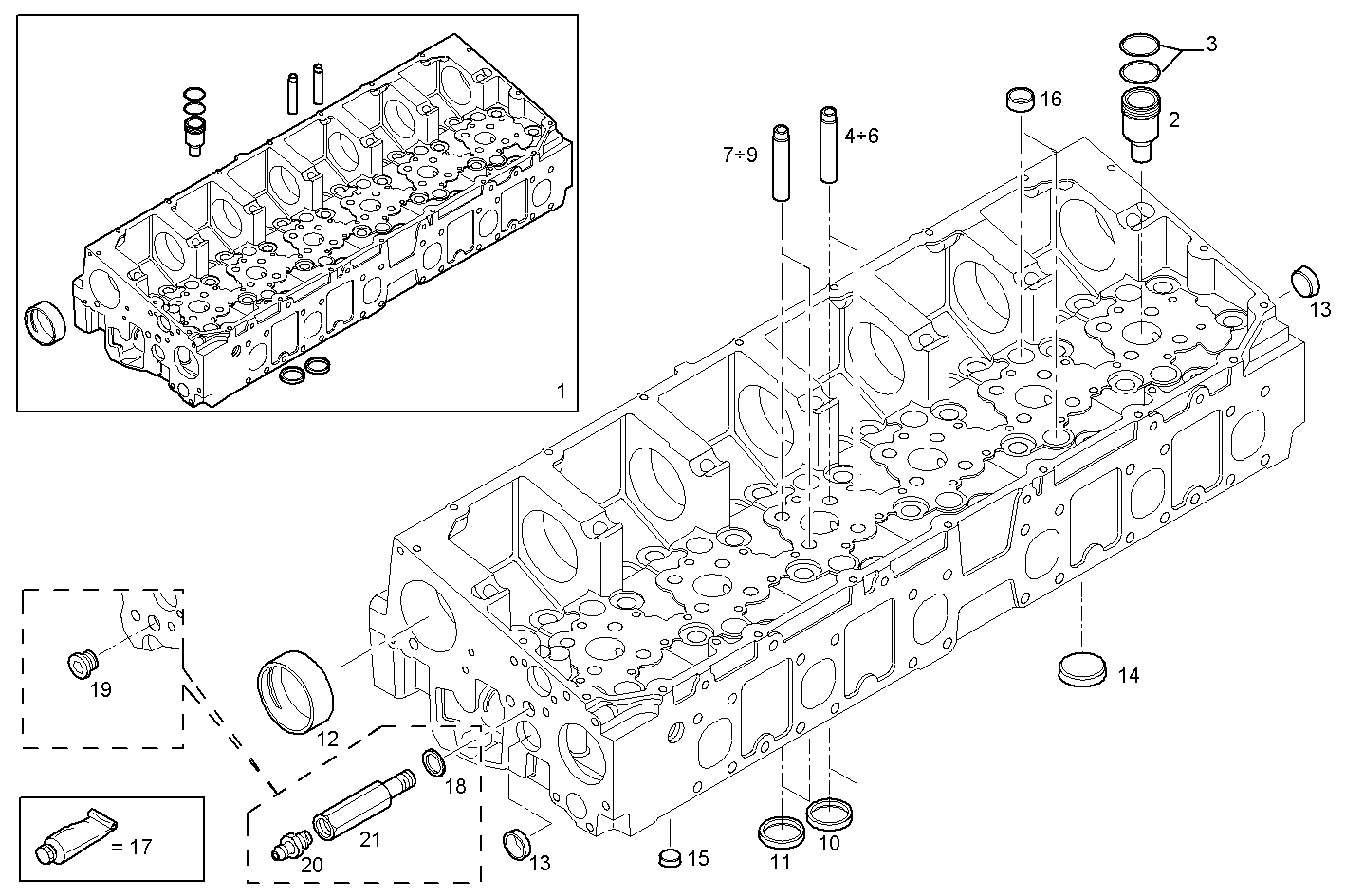

0610.022 CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 504227730 | CYLINDER HEAD |
| 2 | 504127833 | NOZZLE HOLDER SEAT |
| 3 | 17278881 | O-RING Ø23,5 MM SP=1,7 MM |
| 4 | 500391436 | VALVE GUIDE EXHAUST |
| 5 | 500391437 | VALVE GUIDE +0,2 EXHAUST |
| 6 | 500391438 | VALVE GUIDE +0,4 EXHAUST |
| 7 | 500391440 | VALVE GUIDE INTAKE |
| 8 | 500391441 | VALVE GUIDE +0,2 INTAKE |
| 9 | 500391442 | VALVE GUIDE +0,4 INTAKE |
| 10 | 99447343 | VALVE SEAT STD. EXHAUST |
| 11 | 99456802 | VALVE SEAT STD. INTAKE |
| 12 | 504125778 | BUSH |
| 13 | 16990870 | LOCK PLUG Ø28 MM |
| 14 | 16991370 | LOCK PLUG Ø45 MM |
| 15 | 14282170 | LOCK PLUG Ø20 MM |
| 16 | 504344694 | PLUG Ø25 MM |
| 17 | 2992695 | ADHESIVE/STICKER LOCTITE |
| 18 | 98474308 | SEAL GASKET Ø14X22 MM |
| 19 | 504051237 | THREADED PLUG DIAM=1/4" |
| 20 | 500304562 | BREATHER PLUG |
| 21 | 500328252 | PIPE SOCKET |
