F32MNSA85.00A001

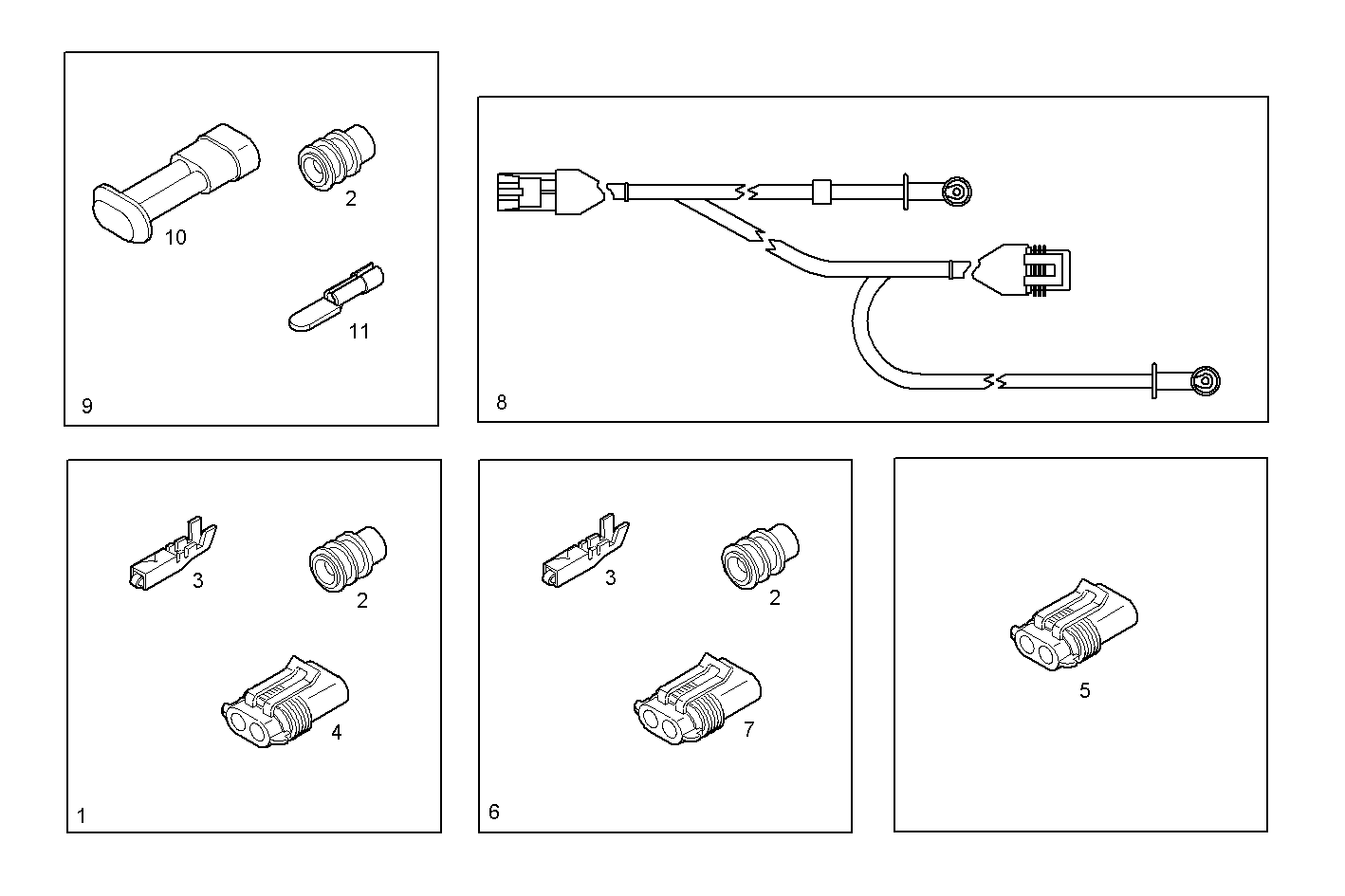

8328.008 ELECTRIC WIRING
| Item | Part number | Description |
|---|---|---|
| 1 | 8033710 | CONNECTION ASSY |
| 2 | 4861936 | RUBBER BUSH YELLOW |
| 3 | 98435372 | TERMINAL |
| 4 | 98435346 | WIRE CONNECTOR 2 pin female |
| 5 | 8033231 | CONNECTION ASSY |
| 6 | 8042343 | CONNECTION assy for stop engine electrovalve |
| 7 | 98435344 | WIRE CONNECTOR 3 pin female |
| 8 | 8037858 | ENGINE HARNESS for electrovalve & ksb |
| 9 | 8031968 | WIRE CONNECTOR |
| 10 | 98435332 | WIRE CONNECTOR |
| 11 | 98435370 | TERMINAL SEZ 0,5-1,5 MMQ |
