F32MNSX00.00A800

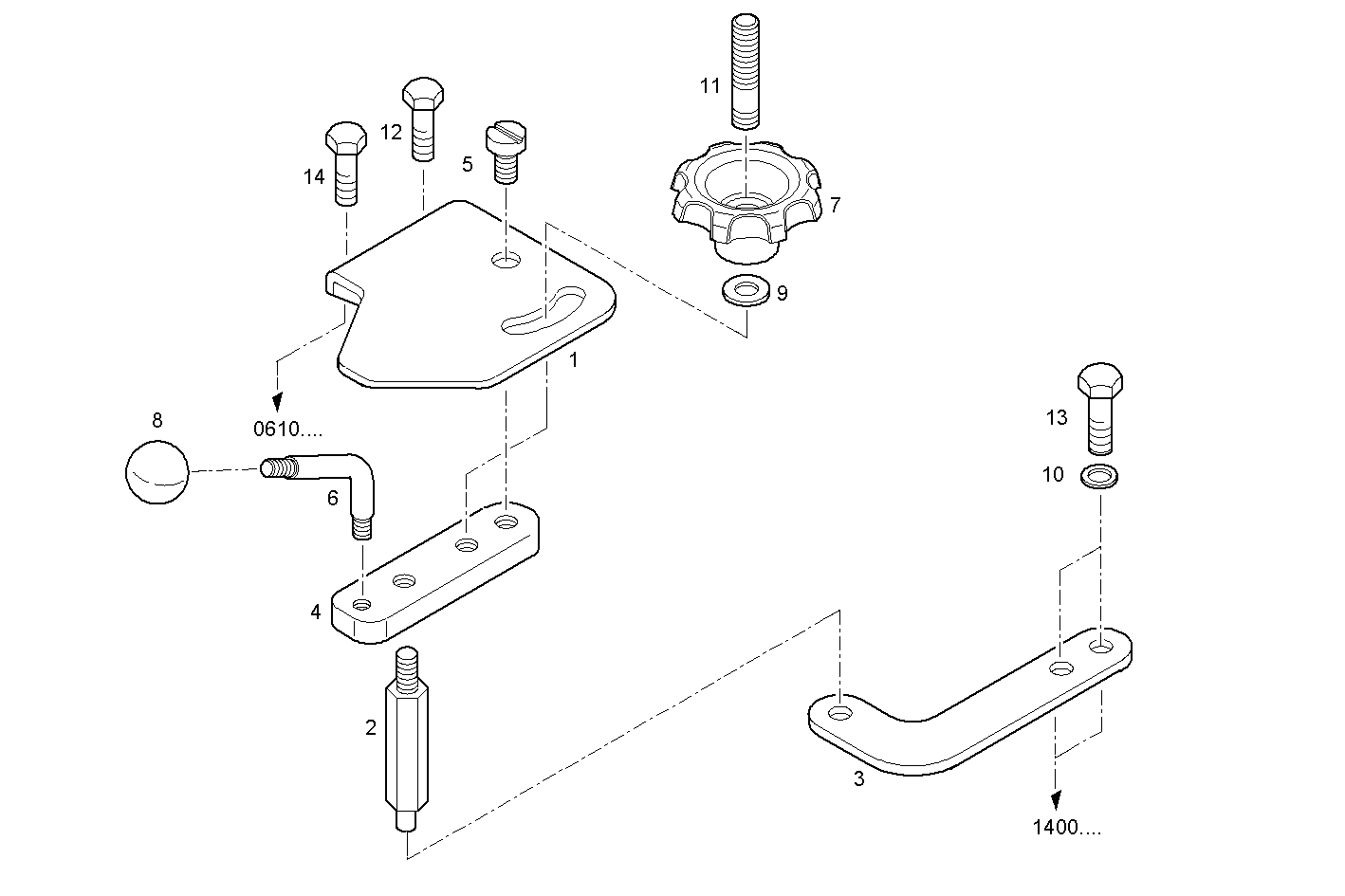

A24020507 HAND ACCELERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8050642 | RETAINER |
| 2 | 8050641 | THREADED PIN |
| 3 | 8050640 | ACCELERATOR PEDAL |
| 4 | 8043045 | LEVER |
| 5 | 8052062 | SPACING BAR |
| 6 | 4927877 | STUD |
| 7 | 4927042 | HANDWHEEL |
| 8 | 4927041 | HANDLE BALL |
| 9 | 17093424 | WASHER |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 8043659 | STUD |
| 12 | 16673735 | HEXAGON BOLT M8X25 MM |
| 13 | 16603525 | SCREW M6X12 MM |
| 14 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
