F32MNSX01.00A800

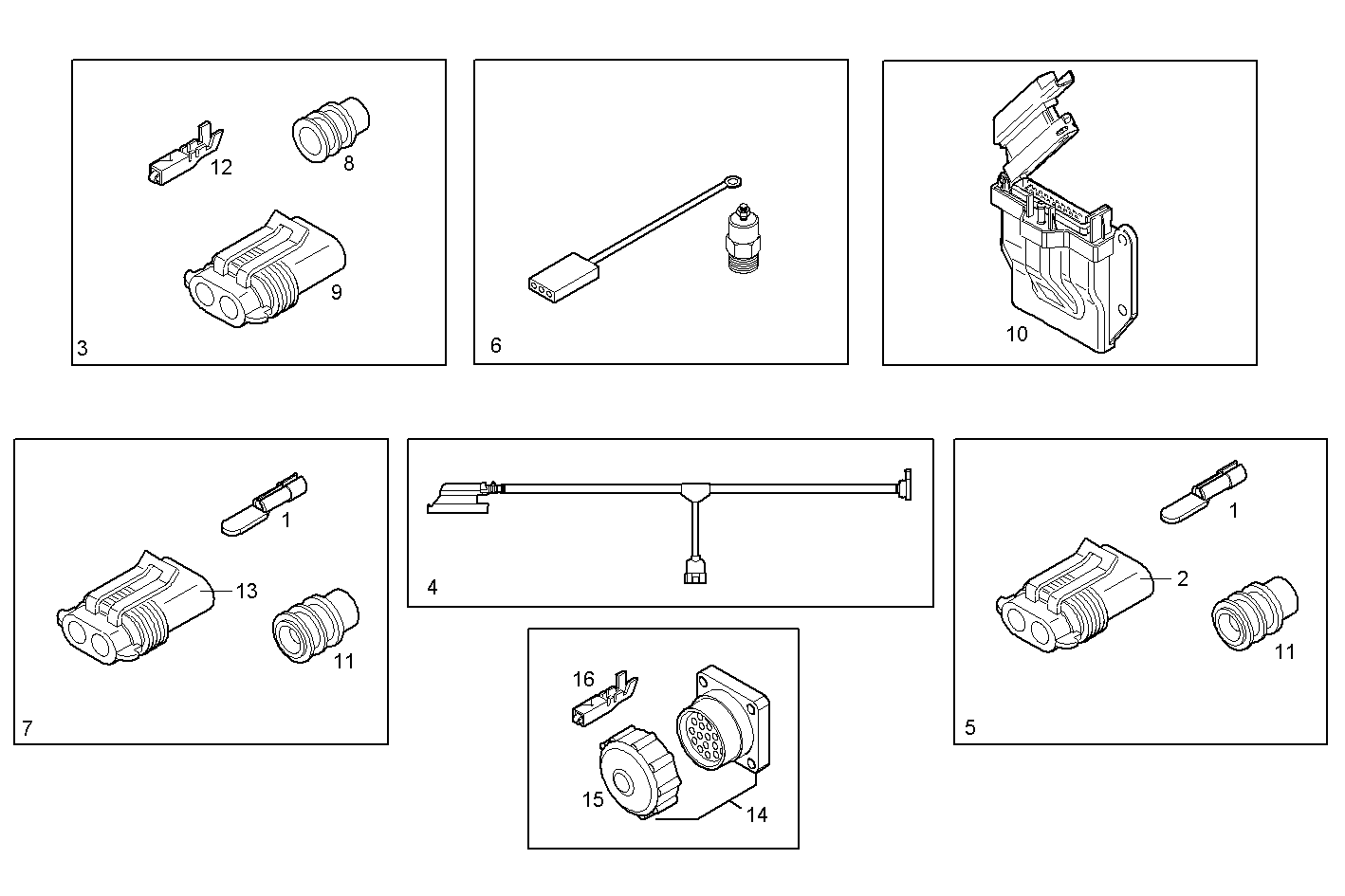

8328.020 ELECTRIC WIRING [FROM 16/04/09] [FROM 16/04/09]
| Item | Part number | Description |
|---|---|---|
| 1 | 98435372 | TERMINAL |
| 2 | 98435344 | WIRE CONNECTOR 3 pin female |
| 3 | 8033709 | CONNECTION ASSY |
| 4 | 8050998 | WIRE/CABLE |
| 5 | 8042343 | CONNECTION assy for stop engine electrovalve |
| 6 | 8038028 | WIRE/CABLE electrovalve |
| 7 | 8033710 | CONNECTION ASSY |
| 8 | 4861936 | RUBBER BUSH YELLOW |
| 9 | 98435345 | WIRE CONNECTOR 1 pin female |
| 10 | 504245406 | ELECTR.CONTR.UNIT |
| 13 | 98435346 | WIRE CONNECTOR 2 pin female |
| 14 | 8034787 | WIRE CONNECTOR ASSY |
| 15 | 8033302 | CAP |
| 16 | 99462549 | TERMINAL |
