F32MNTX20.00

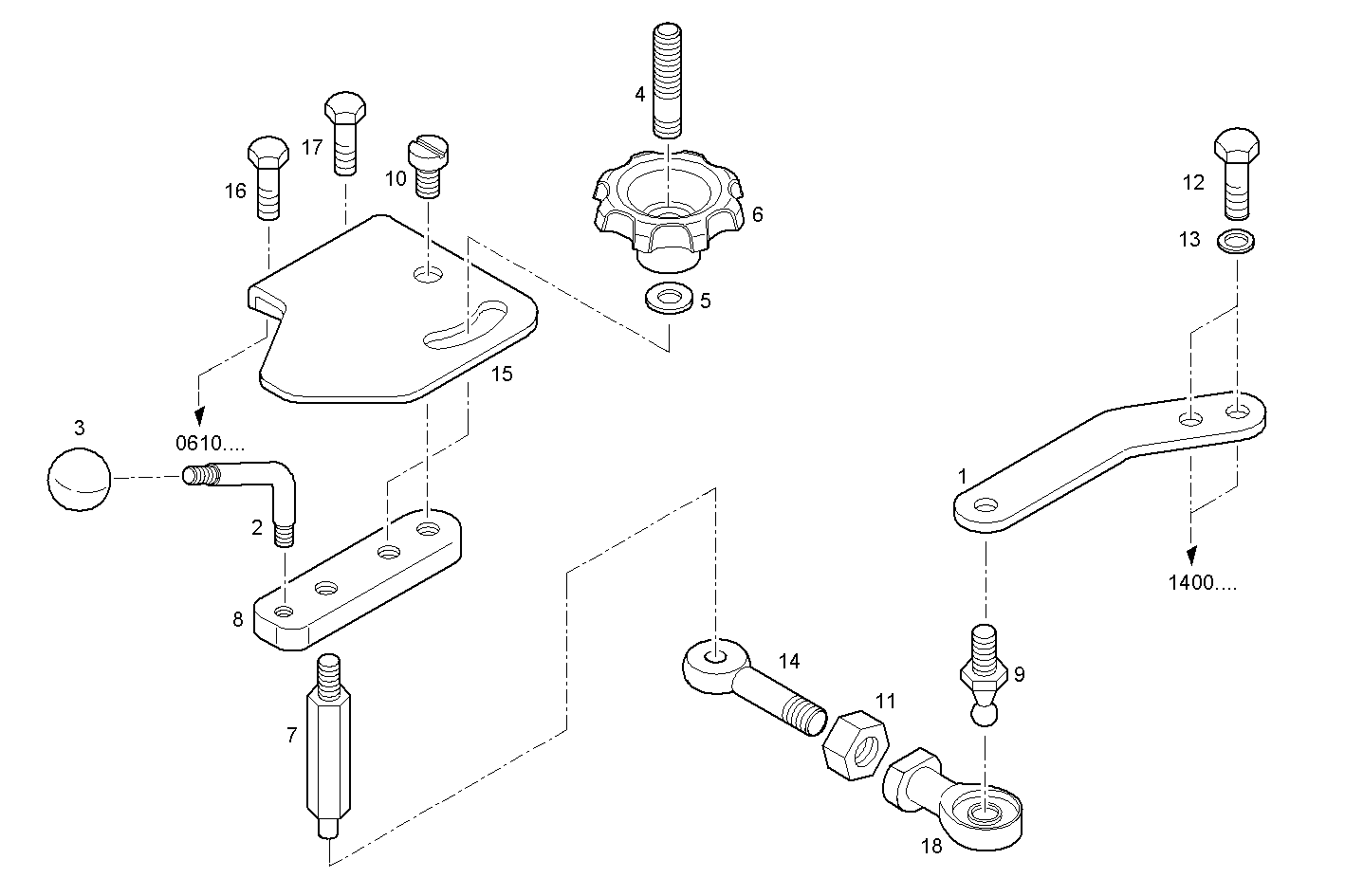

A24020508 HAND ACCELERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8050840 | LEVER |
| 2 | 4927877 | STUD |
| 3 | 4927041 | HANDLE BALL |
| 4 | 8043659 | STUD |
| 5 | 17093424 | WASHER |
| 6 | 4927042 | HANDWHEEL |
| 7 | 8052165 | THREADED PIN |
| 8 | 8043045 | LEVER |
| 9 | 18008411 | PIN M6 |
| 10 | 8052062 | SPACING BAR |
| 11 | 17037725 | NUT |
| 12 | 16603525 | SCREW M6X12 MM |
| 13 | 17088474 | WASHER �6X12 MM |
| 14 | 8050841 | JOINT FITTING |
| 15 | 8052166 | RETAINER |
| 16 | 16673735 | HEXAGON BOLT M8X25 MM |
| 17 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 18 | 4934541 | BRACE/STRUT |
