F32MNTX20.00

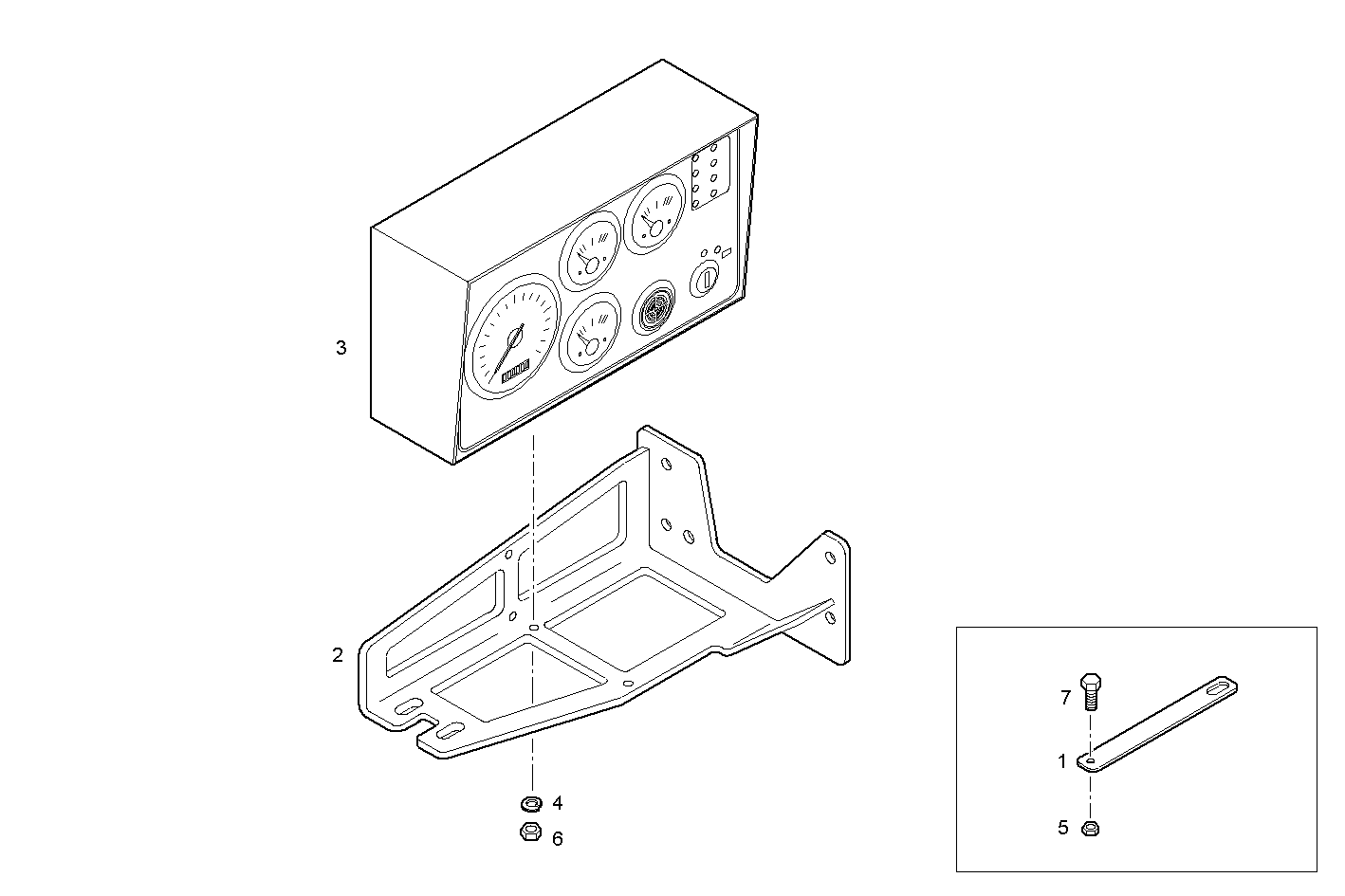

A38770525 ELECTRIC INSTRUMENTS PANEL - 12V
| Item | Part number | Description |
|---|---|---|
| 1 | 8050692 | TIE ROD |
| 2 | 8050688 | SUPPORT |
| 3 | 8038762 | CONTROL BOARD ASSY |
| 4 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 5 | 17044725 | HEXAGON NUT M8 |
| 6 | 17037821 | HEXAGON NUT M6X1 |
| 7 | 16673635 | HEXAGON BOLT M8X1.25X20 |
