F32MNTX20.00

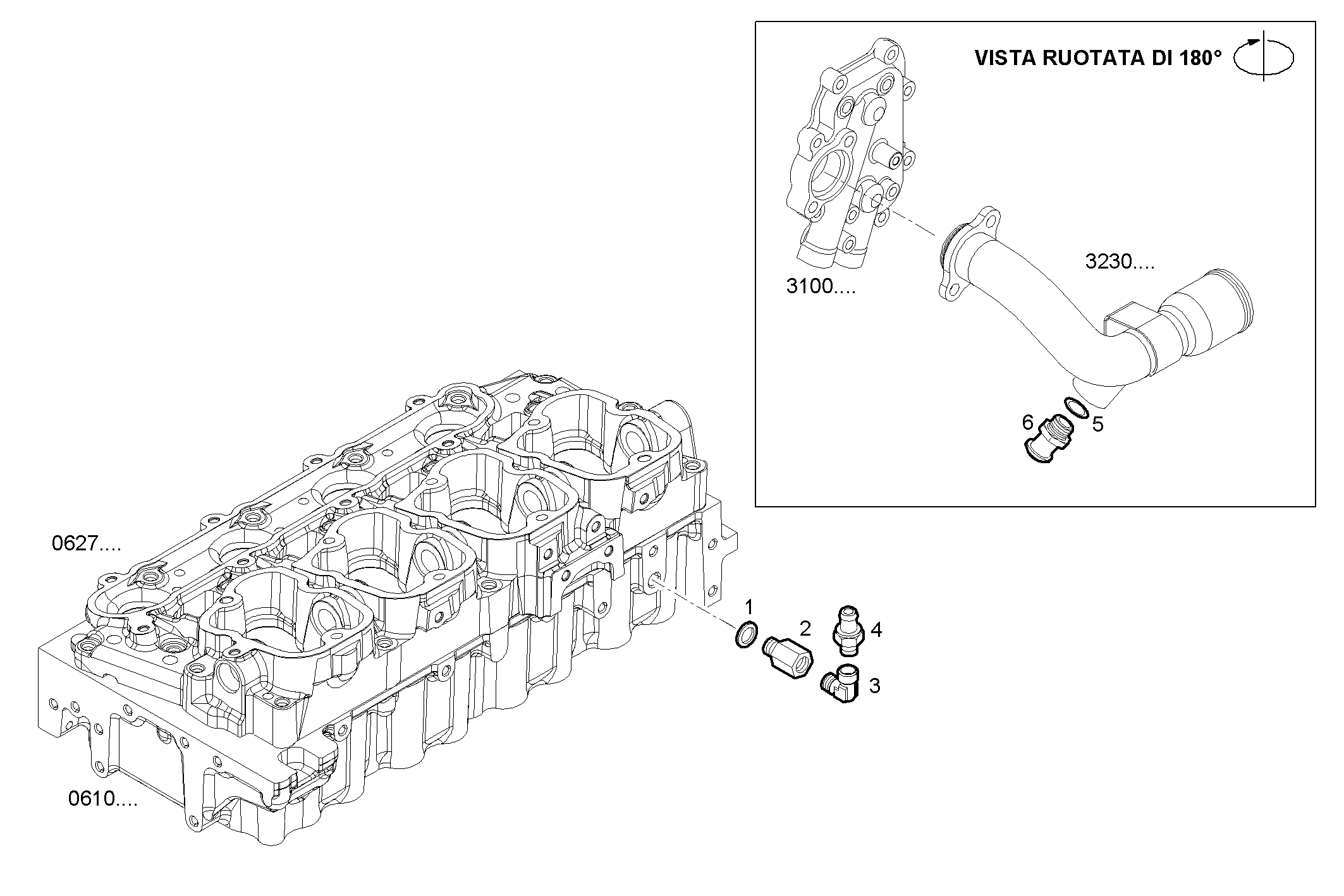

A80000517 PREARRANGEMENT FOR CALORIFIER
| Item | Part number | Description |
|---|---|---|
| 1 | 16508060 | SEAL GASKET Ø12X15,5 MM |
| 2 | 8024963 | THREADED UNION |
| 3 | 8005303 | PIPE SOCKET M16X1,5 |
| 4 | 8045390 | THREADED UNION |
| 5 | 16508260 | WASHER Ø16X20 MM |
| 6 | 8049822 | SCREW CONNECTOR |
