F32MNTX20.00A800

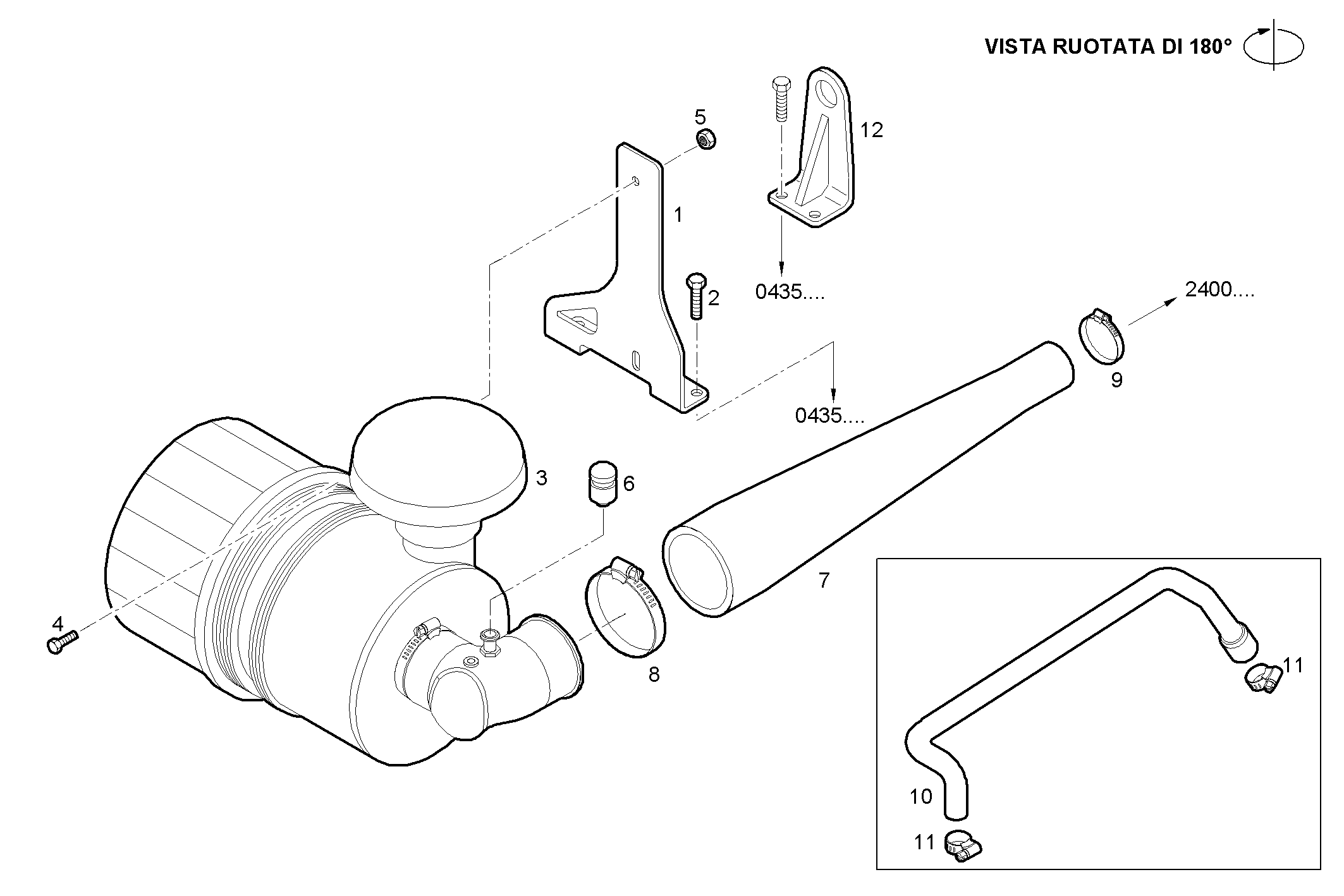

A21210538 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8049257 | RETAINER |
| 2 | 16588025 | HEXAGON BOLT M12X30 MM |
| 3 | 8049596 | AIR CLEANER |
| 4 | 16673835 | HEXAGON BOLT M8X30 MM |
| 5 | 17044721 | HEXAGON NUT M8X1,25 |
| 6 | 8027294 | CHOCKED FILTER INDIC. MECHANICAL |
| 7 | 8049264 | FILTER HOSE |
| 8 | 17765291 | CLIP Ø80/100 MM |
| 9 | 17764892 | PIPE CLIP Ø40-60 MM |
| 10 | 8049748 | RUBBER HOSE |
| 11 | 17764594 | HOSE CLIP |
| 12 | 8049260 | HOOK |
