F32TM1X.A008

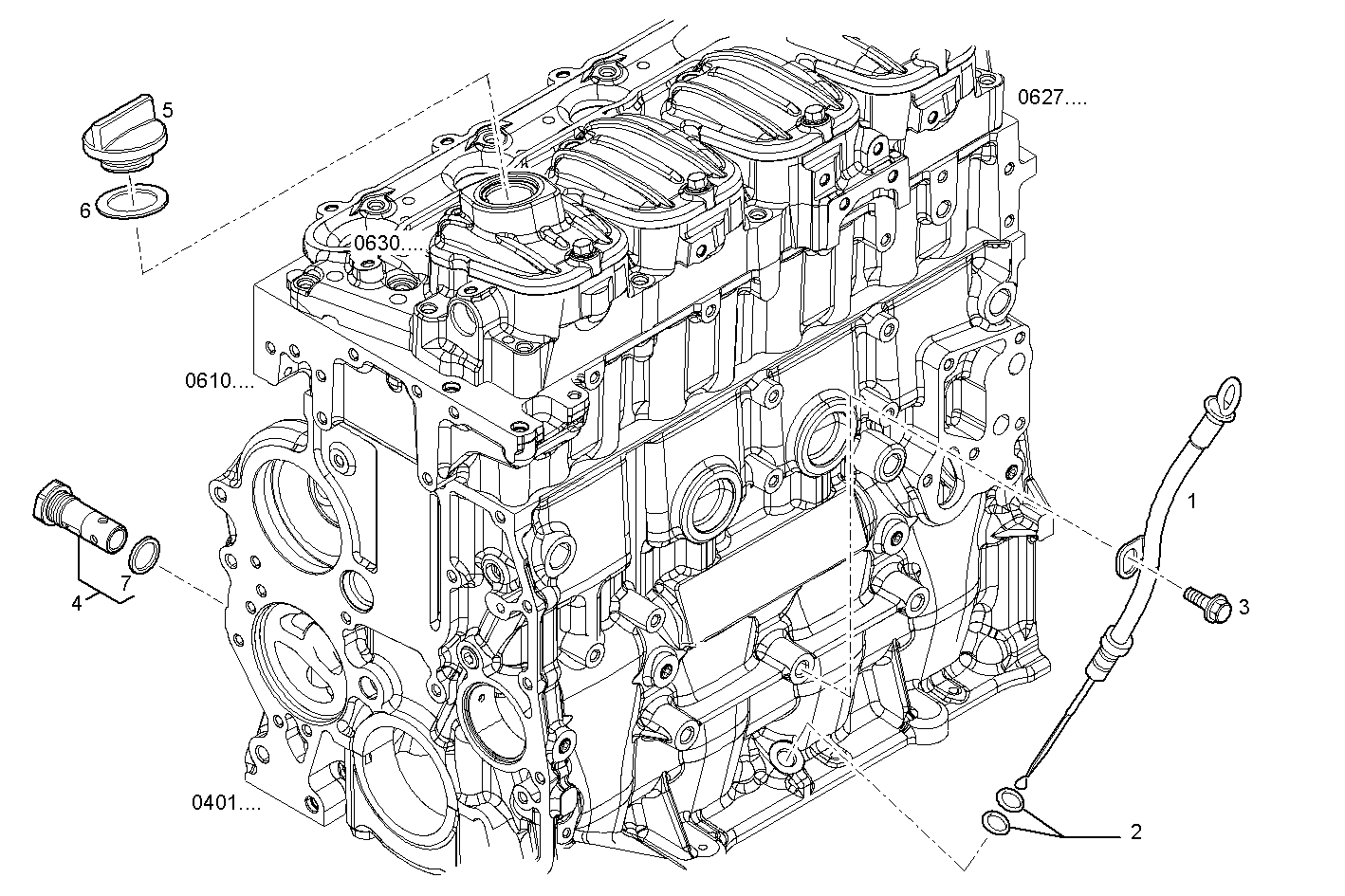

2700.036 OIL DIPSTICK & FILLER PIPE

Iveco/FPT OIL DIPSTICK & FILLER PIPE

Item Part number Description
1 504226579 OIL DIPSTICK
2 17277981 O-RING 1,78x9,25
3 16588225 HEXAGON BOLT M12X40 MM
4 504357733 VALVE
5 4895202 OIL FILLER PLUG
6 4895296 SEAL GASKET
7 99489022 SEAL GASKET Ø22X30 MM SP=1,5 MM
