F3AE0681D*B315

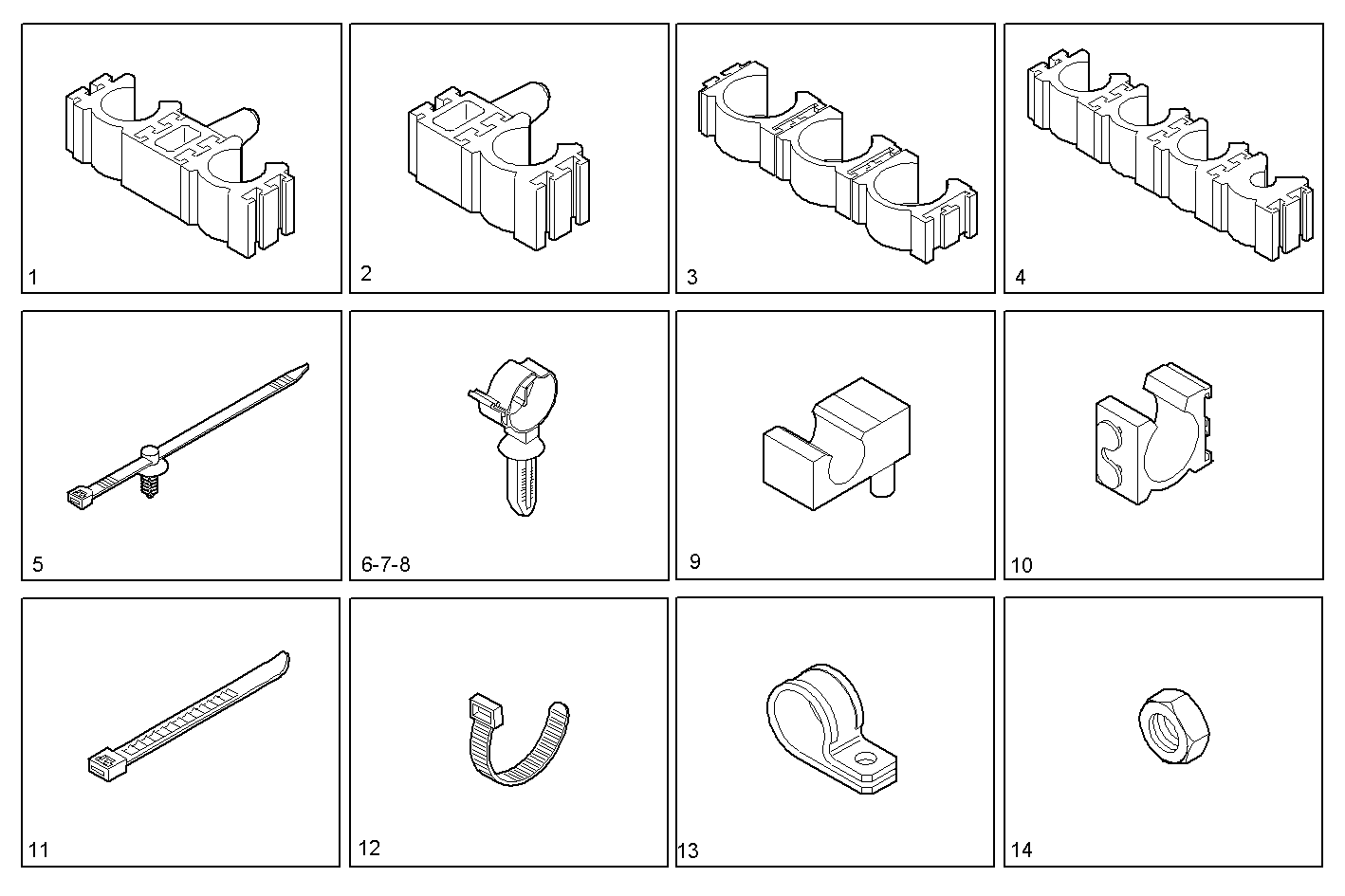

0407.012 FIXING EQUIPMENT
| Item | Part number | Description |
|---|---|---|
| 1 | 504068417 | LOCK |
| 2 | 504068418 | LOCK |
| 3 | 504056815 | HITCH ASSY. |
| 4 | 504056785 | SPRING CLAMP |
| 5 | 504023286 | CABLE STRAP |
| 6 | 504000063 | CLIP |
| 7 | 504000061 | CLIP |
| 8 | 504000058 | CLIP |
| 9 | 500346378 | SPRING CLAMP |
| 10 | 504052515 | RETAINER |
| 11 | 99455033 | CLIP |
| 12 | 42099097 | CABLE STRAP |
| 13 | 17314390 | PIPE CLIP |
| 14 | 17044625 | HEXAGON NUT M6 |
