F3AE0681D*B315

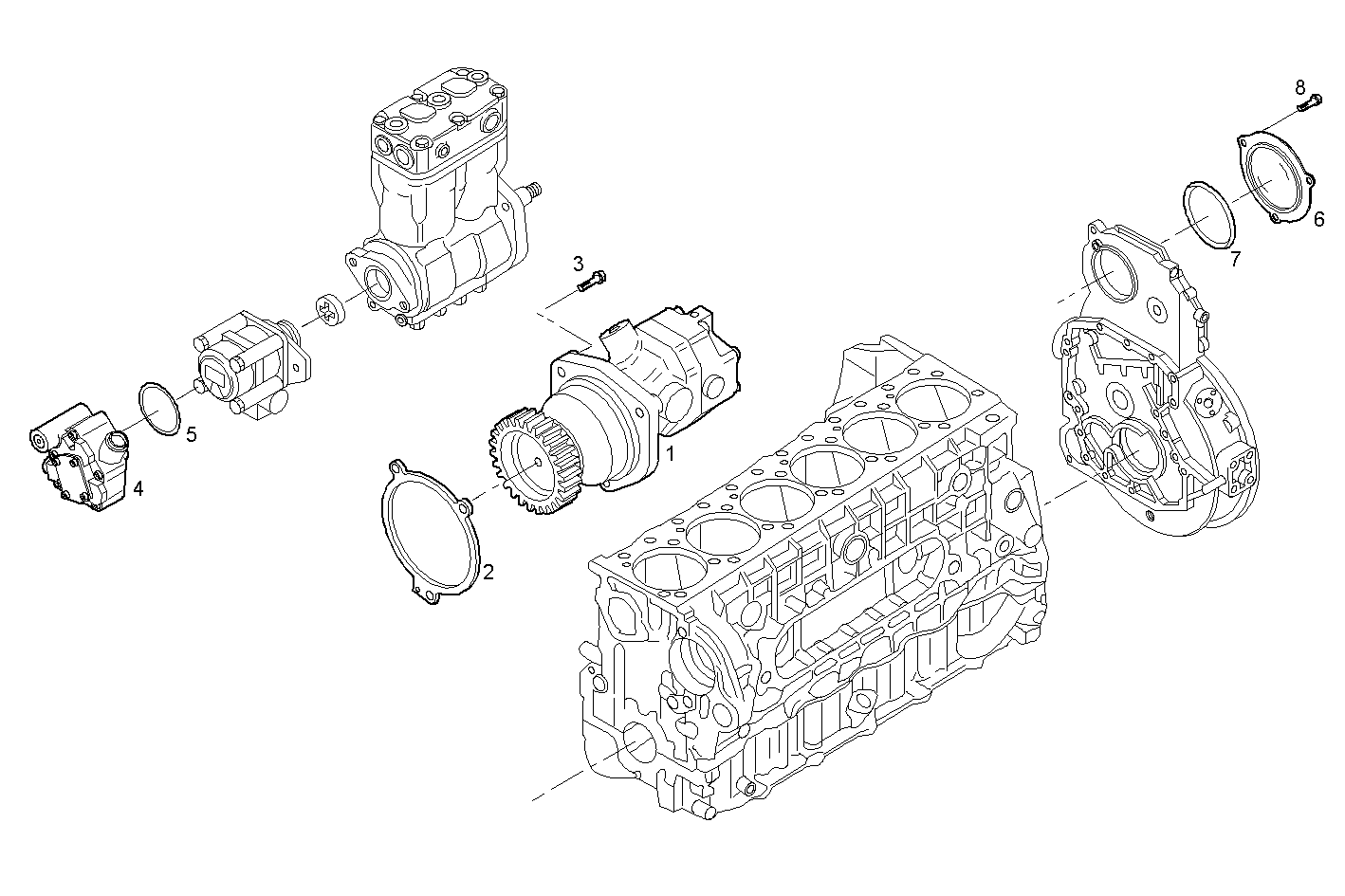

2010.063 FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504066263 | FUEL PUMP [FROM # 38209] |
| 2 | 99447382 | FLAT ENGINE GASKET |
| 3 | 16673735 | HEXAGON BOLT M8X25 MM |
| 4 | 500396487 | FUEL PUMP [FROM # 29647] |
| 5 | 504077453 | O-RING [FROM # 29647] |
| 6 | 504068516 | FRONT COVER |
| 7 | 99435566 | O-RING |
| 8 | 18138424 | HEXAGON BOLT M8X20 MM |
