F3AE0681D*B315

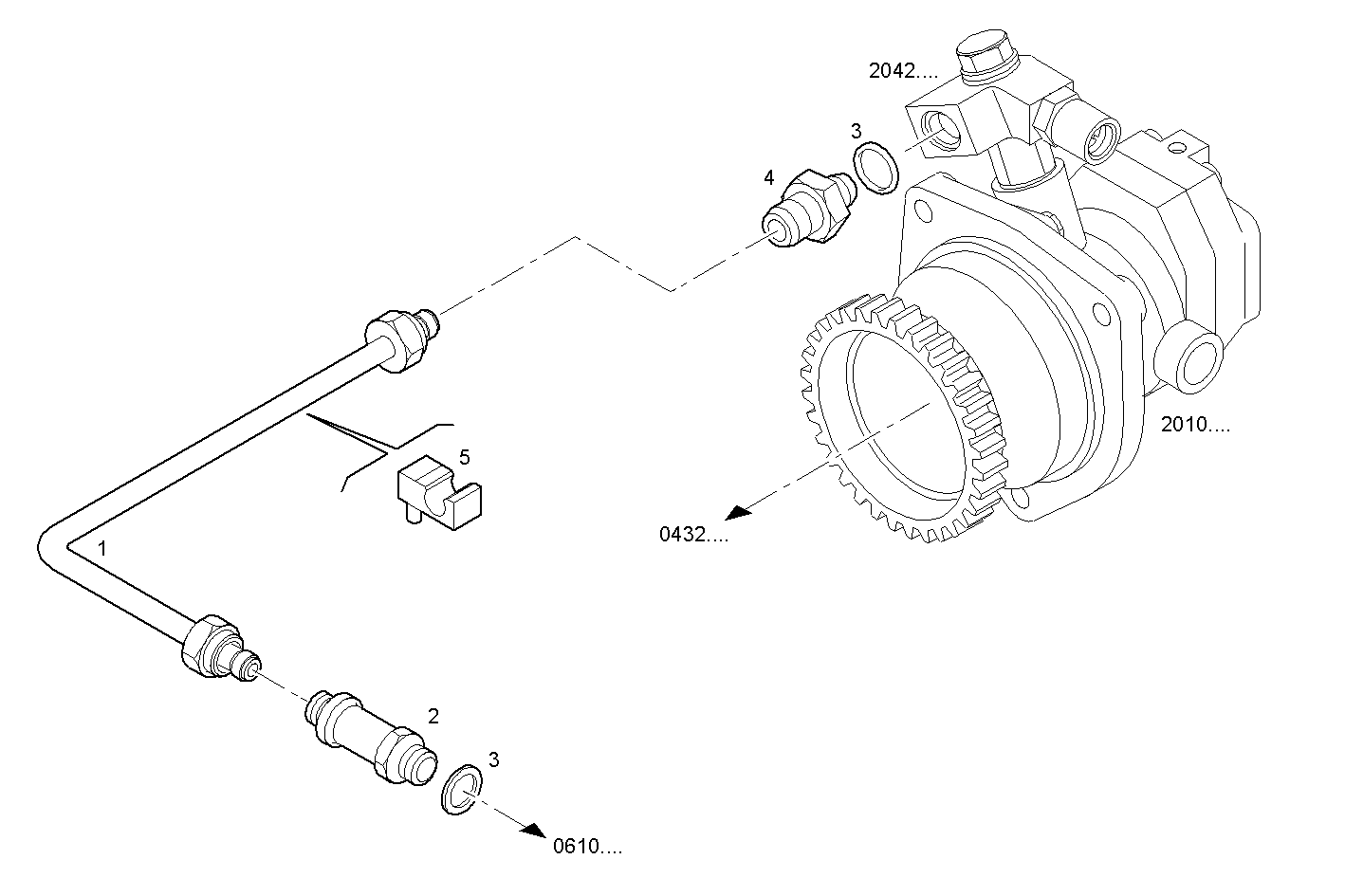

2036.021 FUEL LINES - RETURN TO FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504036047 | FUEL LINE |
| 2 | 500310076 | PIPE SOCKET M16X1,5 - M18X1,5 |
| 3 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 4 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 5 | 500346378 | SPRING CLAMP |
