F3AE0681D*B315

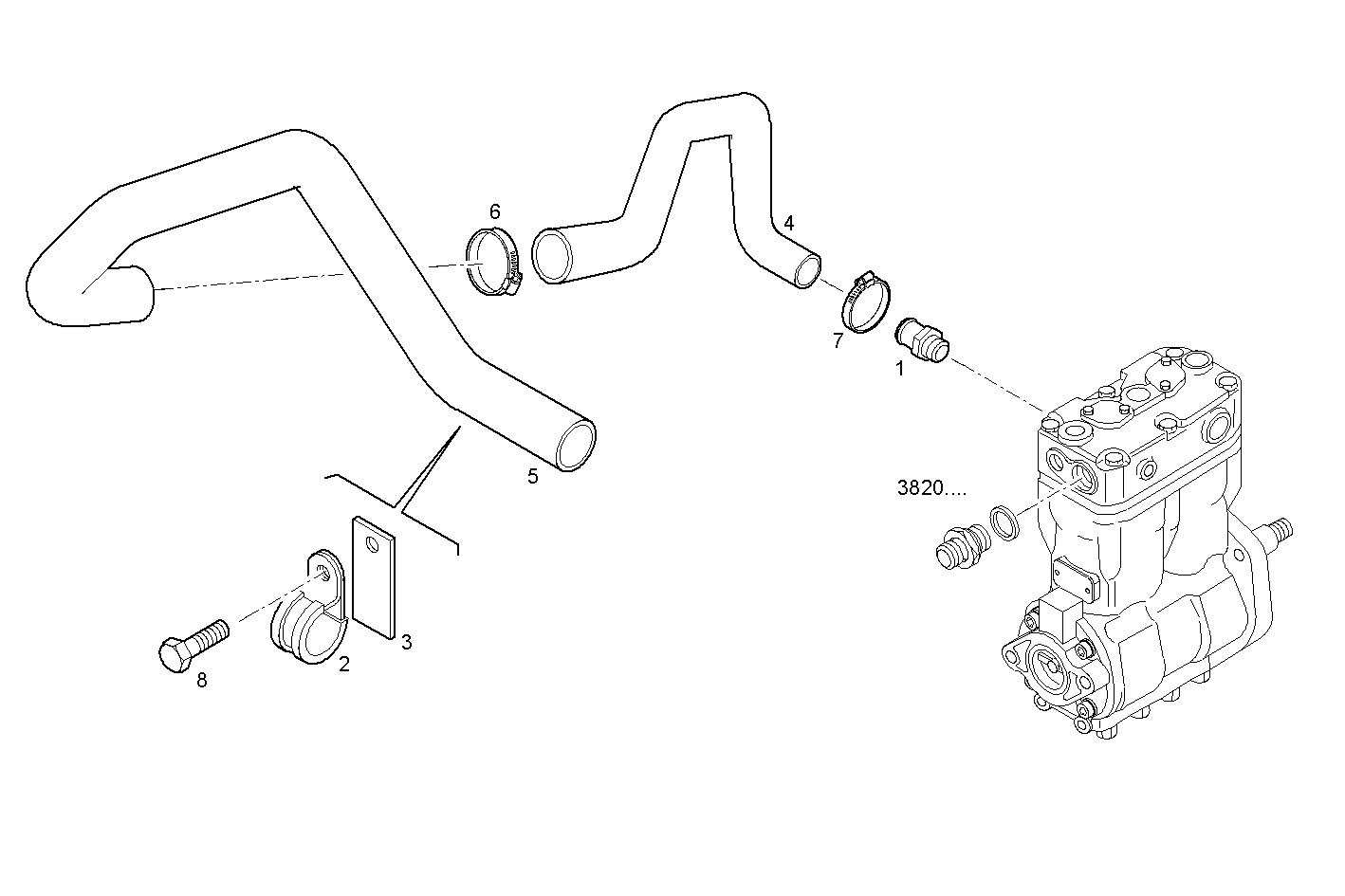

3819.006 AIR COMPESSOR SUCTION
| Item | Part number | Description |
|---|---|---|
| 1 | 41232261 | THREADED UNION |
| 2 | 41231094 | FASTENING BRACKET |
| 3 | 41226271 | SUPPORT |
| 4 | 41225346 | OIL HOSE |
| 5 | 41225180 | SUCTION LINE |
| 6 | 17764793 | CLIP Ø32/50 MM |
| 7 | 17764693 | CLIP Ø25/40 MM |
| 8 | 16597925 | HEXAGON BOLT M8X14 MM |
