F3AE0684E*B002

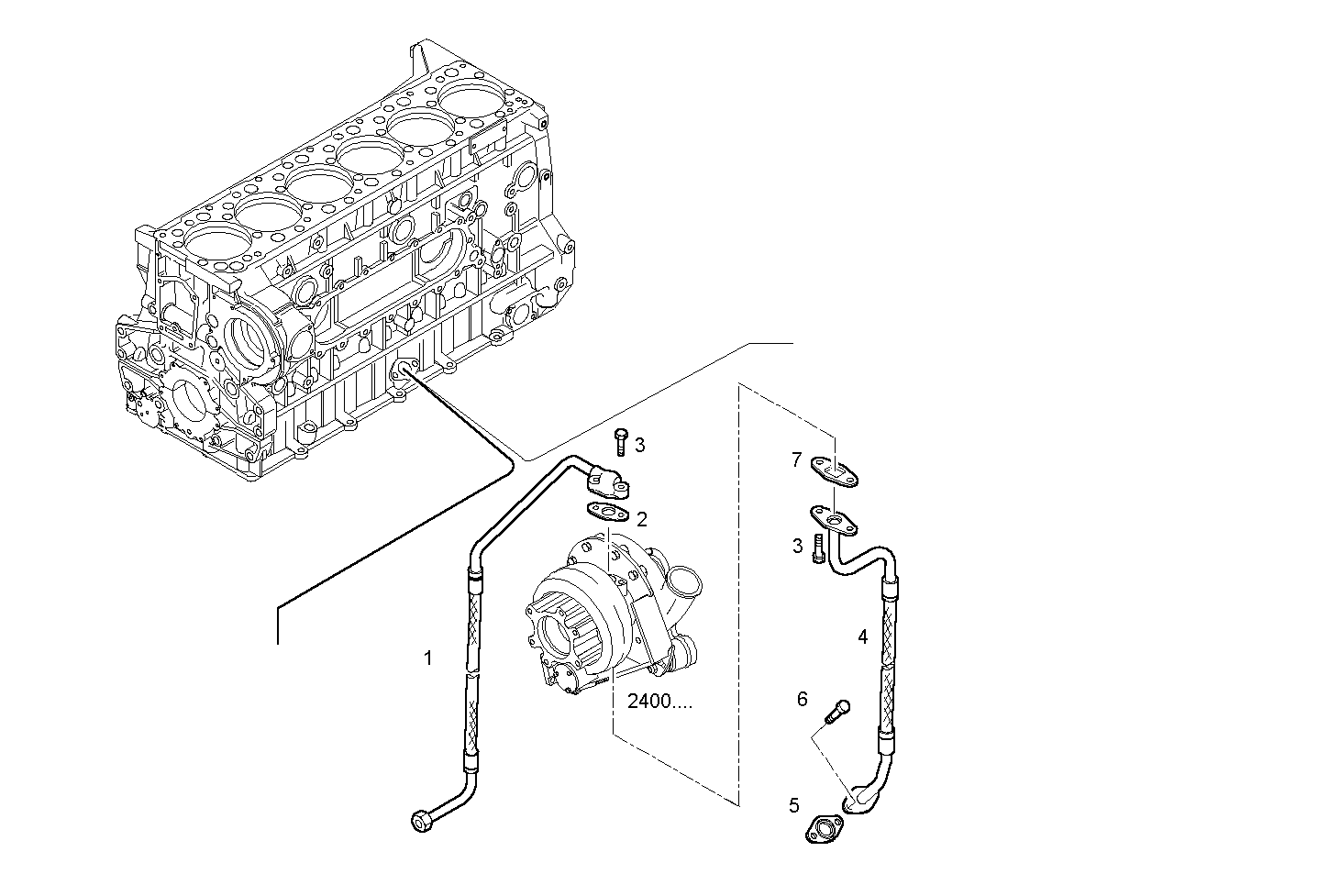

3010.188 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 504050605 | OIL LINE |
| 2 | 61318303 | GASKET |
| 3 | 16586624 | HEXAGON BOLT M8X35 MM |
| 4 | 504050612 | OIL LINE |
| 5 | 99475979 | FLAT ENGINE GASKET |
| 6 | 16586324 | HEXAGON BOLT M8X1,25X20 MM |
| 7 | 98412509 | FLAT ENGINE GASKET |
